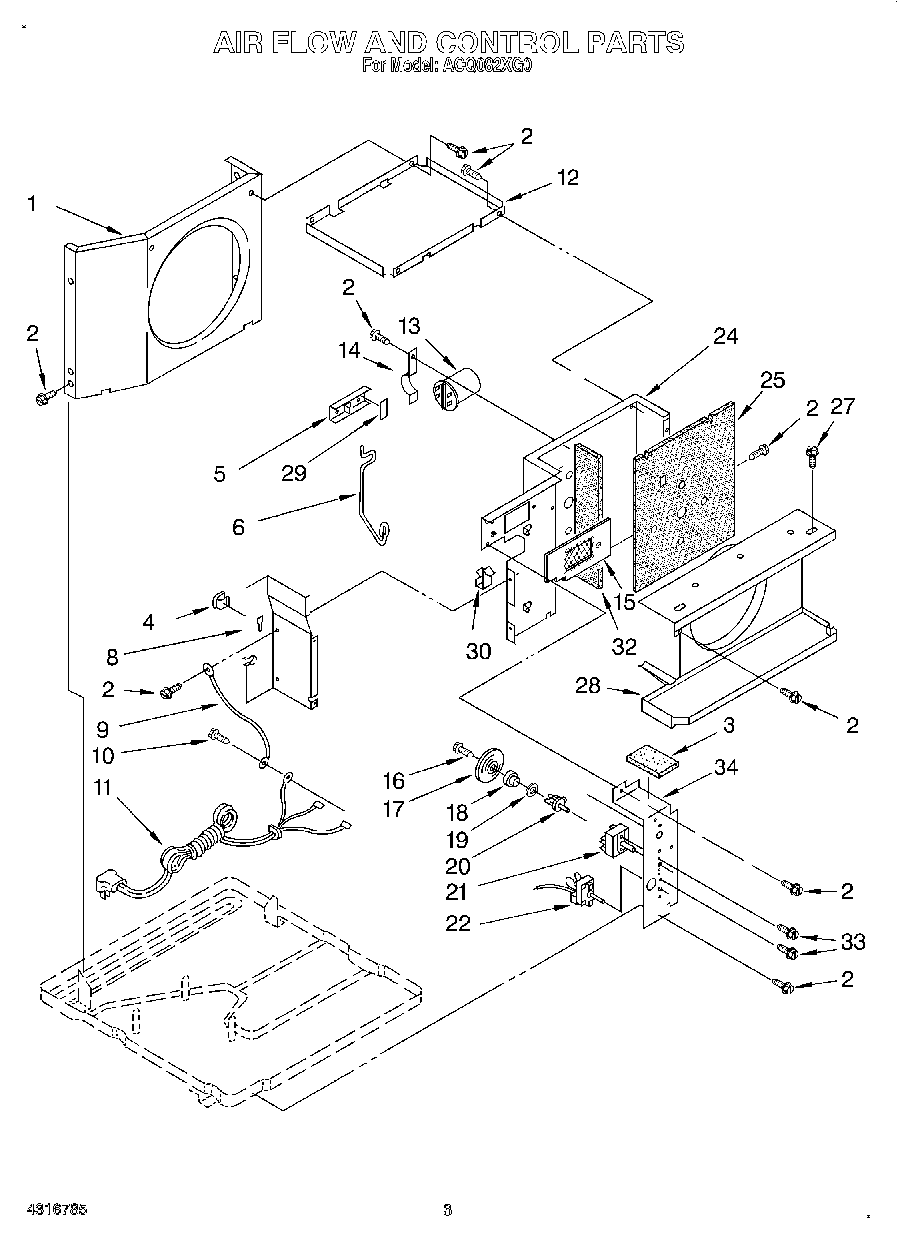

ACQ082XG0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
2	Screw, Repair
3	Insulation, Top (Control Panel)
4	Clip, Retainer
5	Door, Exhaust
6	Arm, Exhaust Door
8	Extension, Dividing Wall
9	Wire, Ground
10	WPW10141604 Whirlpool Screw
11	Cable, Appliance
12	Support, Unit
13	Capacitor, Running
14	Bracket, Capacitor
15	Screen, Insulation Assembly
16	Screw, 7-18 x 5/8
17	Cam, Control
18	Bushing, Shaft
19	Washer
20	Shaft, Control
21	Switch, Rotary
22	Control, Temperature
24	Wall, Dividing
25	Insulation (Back, Dividing Wall)
27	WP488729 Whirlpool Refrigerator Door Screw
28	Shroud, Evaporator
29	Spacer
30	Clamp, Wiring
32	Insulation (Side, Dividing Wall)
33	Screw, 6-32 x .175
34	Panel, Control
