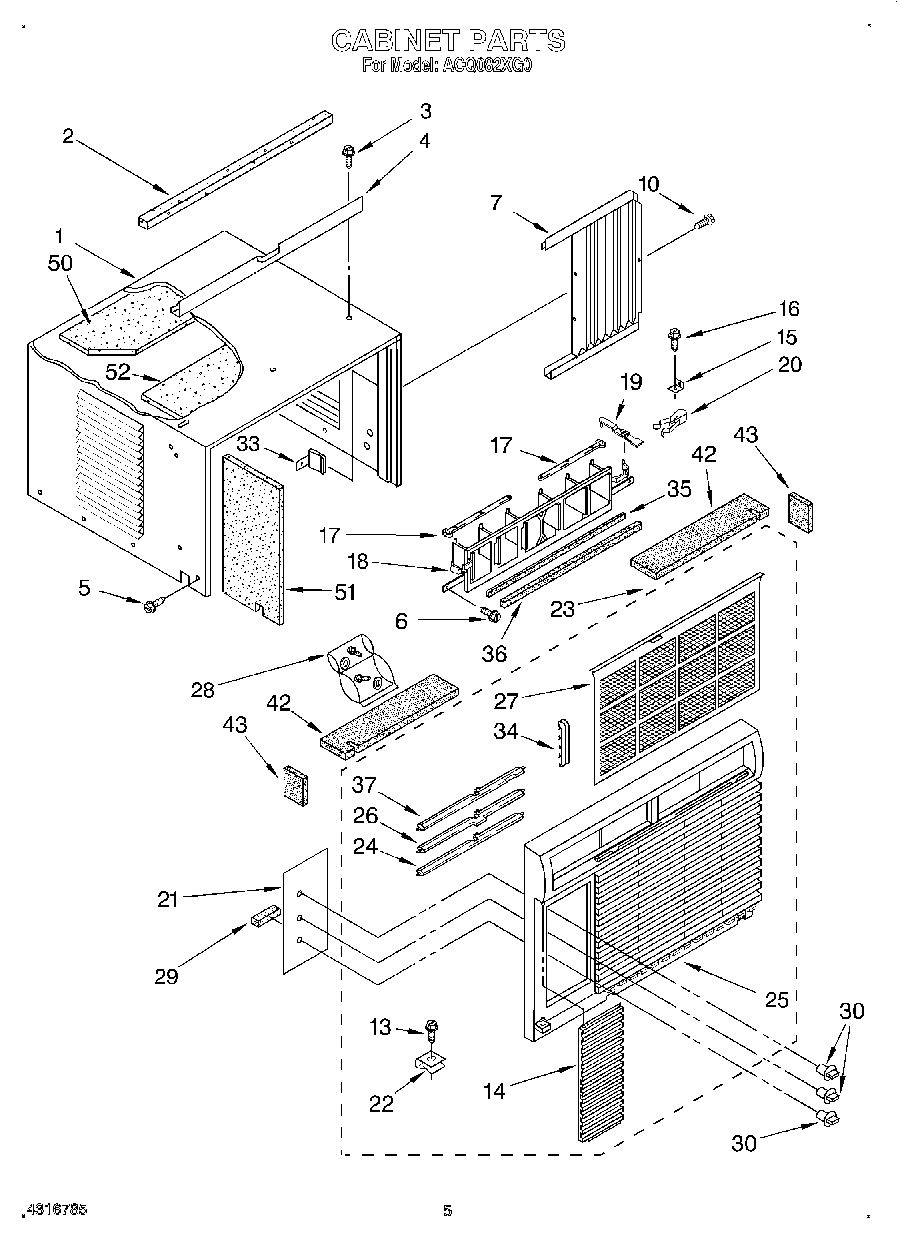

ACQ082XG0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Screw 8-18 x .295
7Housing, Curtain R.S.(Includes No.8)
7Housing, Curtain L.S. (Includes No.8)
10Screw, 8-18 x 3/8
13Screw (2)
14Door, Control
15Bracket
16Screw, Wood 8-15 x .750
17Link, Vertical Louver (2)
18Louver, Vertical
19Handle, Vertical Louver (2)
20Spring, Detent (2)
21Plate, Escutcheon
22Clip, Cabinet Front (2)
23Front, Cabinet
24Louver, Horizontal (6)
25Frame, Front
26Louver, Horizontal (Handle) (2)
27Filter, Air
28Bag, Accessory
29Spacer, Escutcheon Plate (2)
30Knob (3)
33Clip, Vertical Louver
34Link, Horizontal Louver (2)
35Seal, Vertical Louver
36Seal, Condenser Bottom
37Louver, Horizontal (Notch Right)
37Louver, Horizontal (Notch Left)
42Seal, (2) (Front Top)
43Seal, (2) (Front Side)
50Insul. Cabinet
51Insul. Cabinet (Right, Side)
51Insul. Cabinet (Left Side)
52Insul. Cabinet Top
