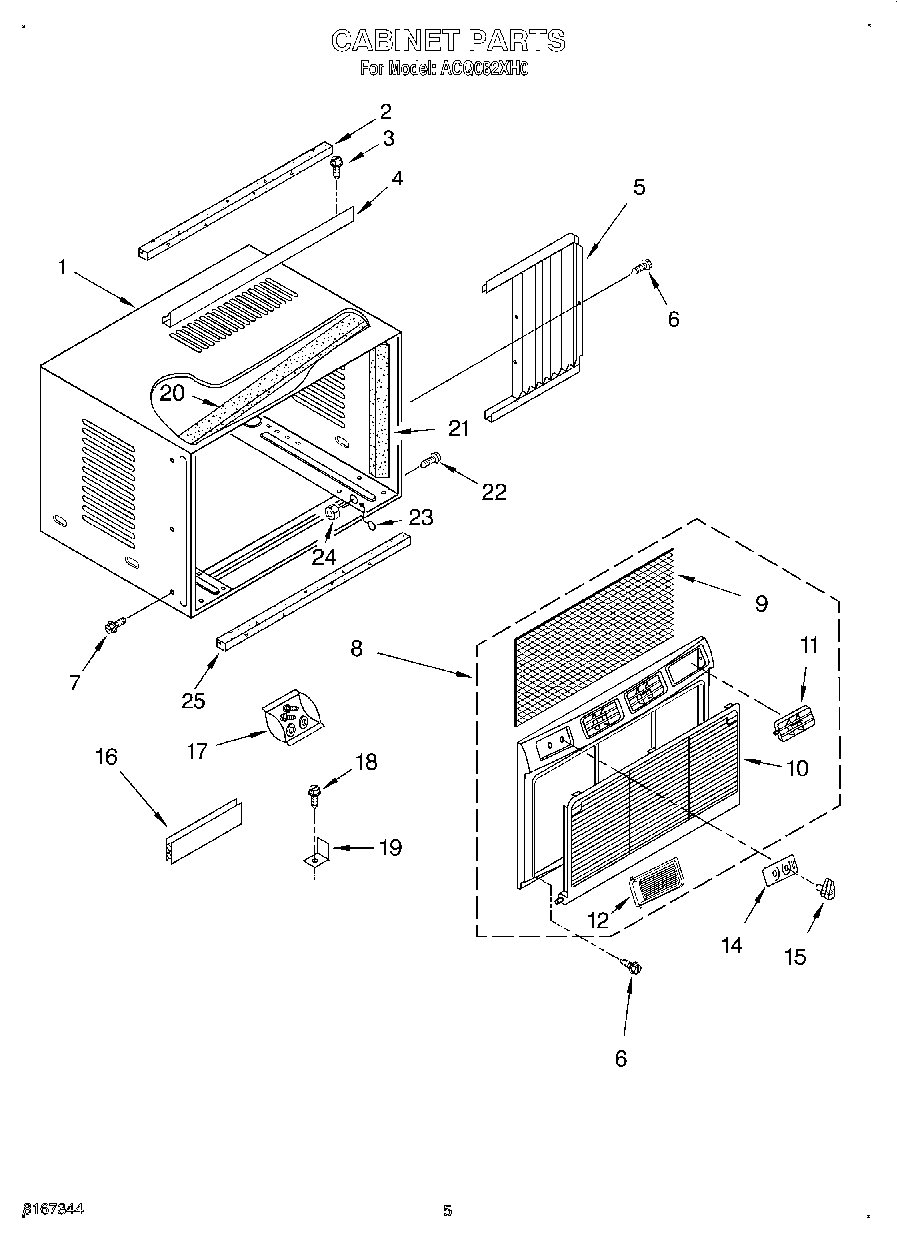

ACQ082XH0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP3390631 Whirlpool Screw
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	Screw 8-18 x .295
7	WP489069 Whirlpool Compactor Screw
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	Door, Control
14	Escutcheon
15	WP8031121 Whirlpool Air Conditioner Control Knob
16	212643 Whirlpool Refrigerator Permagum Sealer
17	Bag, Accessory
18	Screw, Wood 8-15 x .750
19	Bracket
20	Seal, Top Cover
21	Seal, Cabinet Side (2)
22	WP488234 Whirlpool Air Conditioner Screw
23	Wire, Ground
24	WP486255 Whirlpool Air Conditioner Nut
25	Seal, Cabinet Bottom
