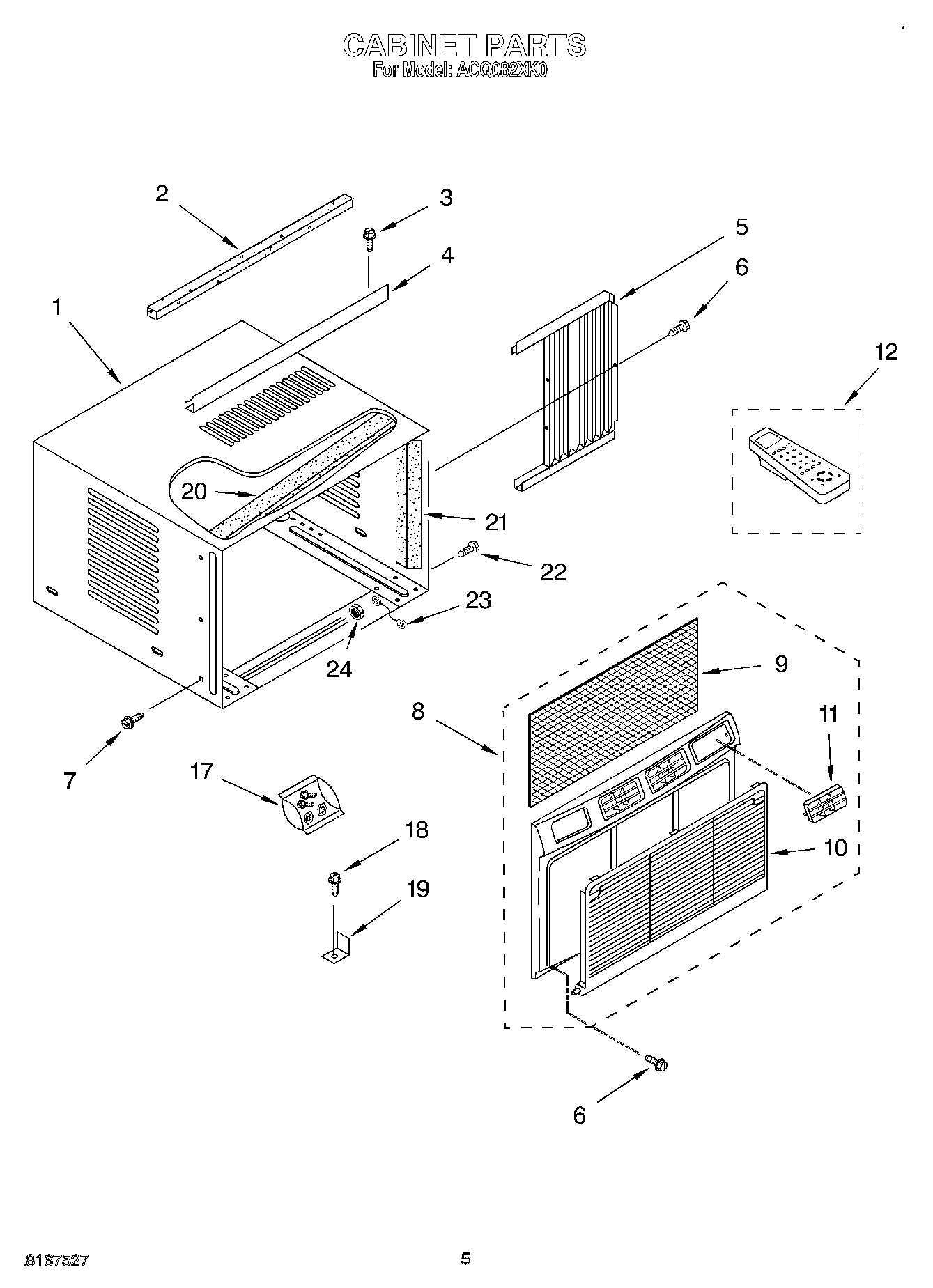

ACQ082XK0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP3390631 Whirlpool Screw
4	Channel, Top
5	Curtain ((Right Side))
5	Curtain ((Left Side))
6	Screw 8-18 x .295
7	W10491985 Whirlpool Screw
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	Control, Remote
17	Accessory, Bag
18	Screw, Wood 8-15 x .750
19	Bracket
20	Seal, Top Cover
21	Seal, Cabinet Side (2)
22	WP488234 Whirlpool Air Conditioner Screw
23	Wire, Ground
24	WP486255 Whirlpool Air Conditioner Nut
