ACQ082XW1 02 – UNIT

ACQ082XW1 02 – UNIT

Written by

in

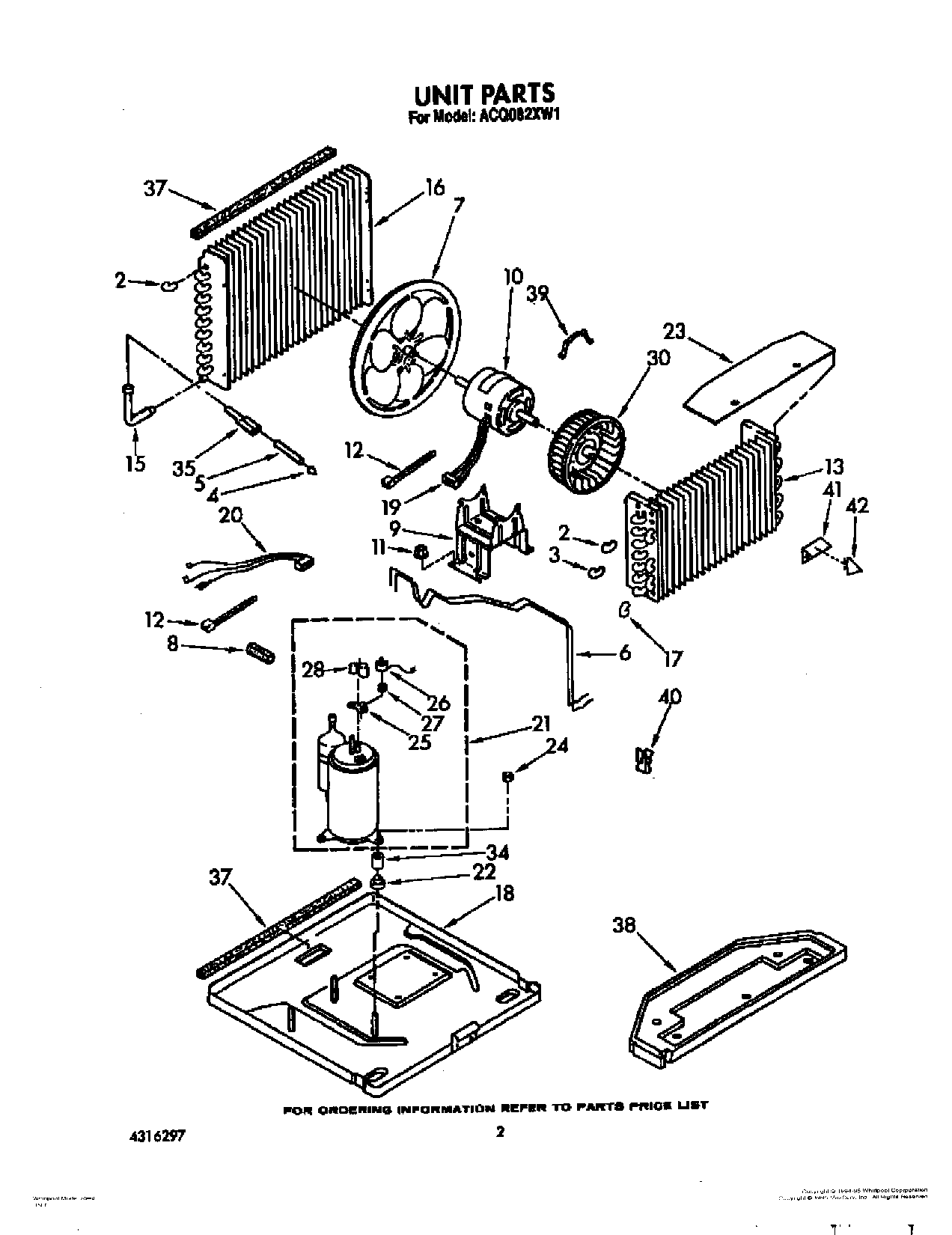

ACQ082XW1 02 – UNIT

Products

PositionProduct
2Bend, Return Condenser (10)
3Bend, Return Condenser (4)
4Strainer
5Tube, Outlet (Includes No. 26)
6Tube, Restrictor
7Blade, Fan (Condenser)
8Seal, Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12WPW10339879 Whirlpool Wire Tie
13Evaporator
15Tube, Connecting
16Condenser
17Tube, Riser (2)
18Base
19Terminal Block
20Harness, Compressor
214317916 Whirlpool Air Conditioner Compressor
22Grommet
23Insulation, Evaporator Shroud
24Locknut (3)
25Gasket, Terminal Cover
26Overload
27Spring, Overload
28Cover, Terminal
30Wheel, Blower (Evaporator)
34Sleeve, Compressor (3)
35Tube, Flow Divider
37WP854334 Whirlpool Air Conditioner Sealing Strip
37Seal, Condenser Bottom
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
40Clamp, Tube (2)
41Anticipator, Temperature
42Wiring Diagram
42Clip, Anticipator
42Tech Sheet
42Instructions, Installation
42Manual, Use & Care Guide
42Literature Parts (List, Repair Parts)
