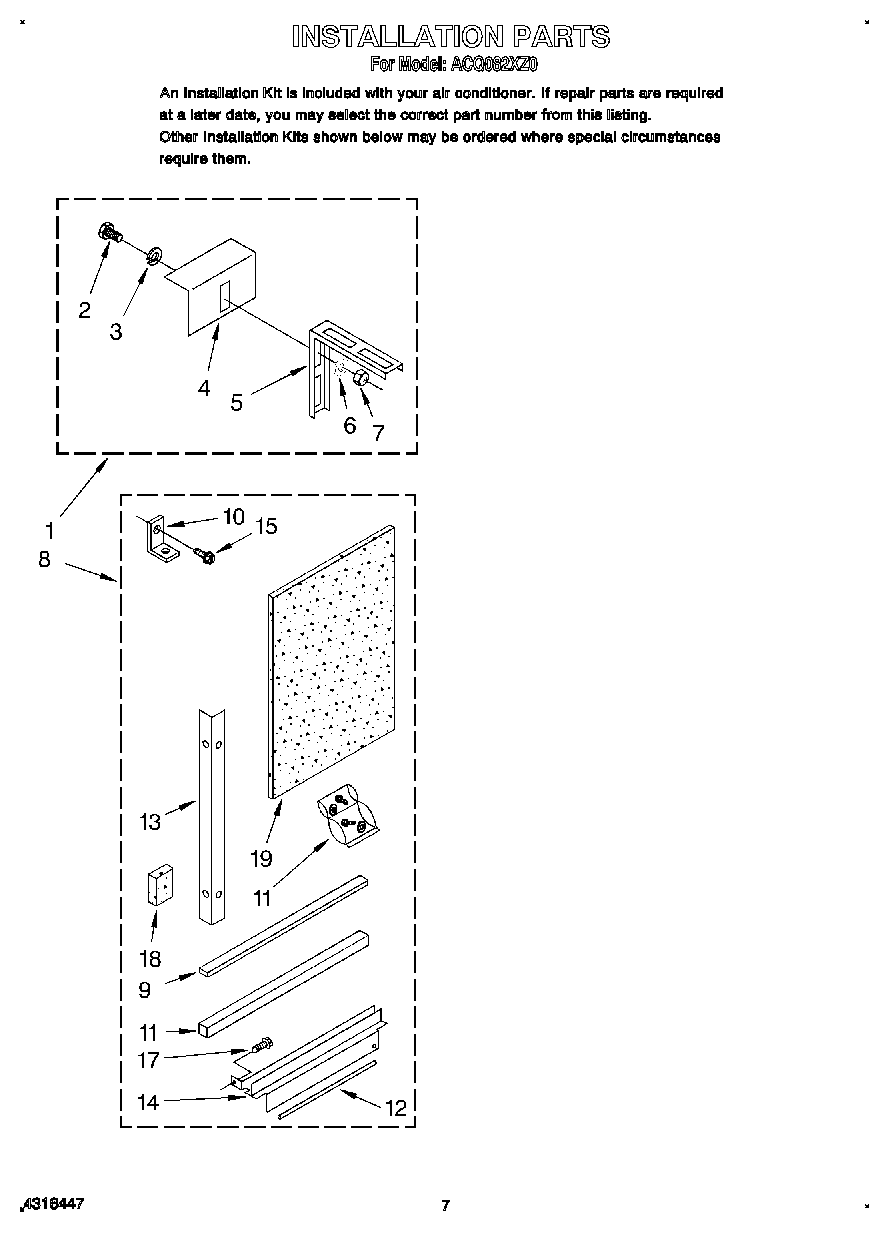

ACQ082XZ0 05 – INSTALLATION

Products

Position	Product
	Instructions, Installation (Outside Sill Kit)
	Instructions Installation (Economy Mounting Kit)
1	Kit, Outside Sill Bracket
2	Bolt, 1/4 x 3/4 (6)
3	WP120393 Whirlpool Washer Assembly
4	Bracket, Sill Mounting (2)
5	Bracket, Rail Support (2)
6	Lockwasher (6)
7	Nut, Hex (6)
8	Kit, Economy Installation
9	Strip, Seal
10	Bracket
11	Gasket, Meeting Rail
12	212643 Whirlpool Refrigerator Permagum Sealer
13	Angle, Side (2)
14	Bracket, R.S.
14	Bracket, L.S.
15	Screw, Wood 8-15 x .750
16	Screw, Repair
17	WP965173 Whirlpool Dishwasher Screw
18	Spacer, Block (4)
19	Board, Filler, (2)
20	Channel, Top
