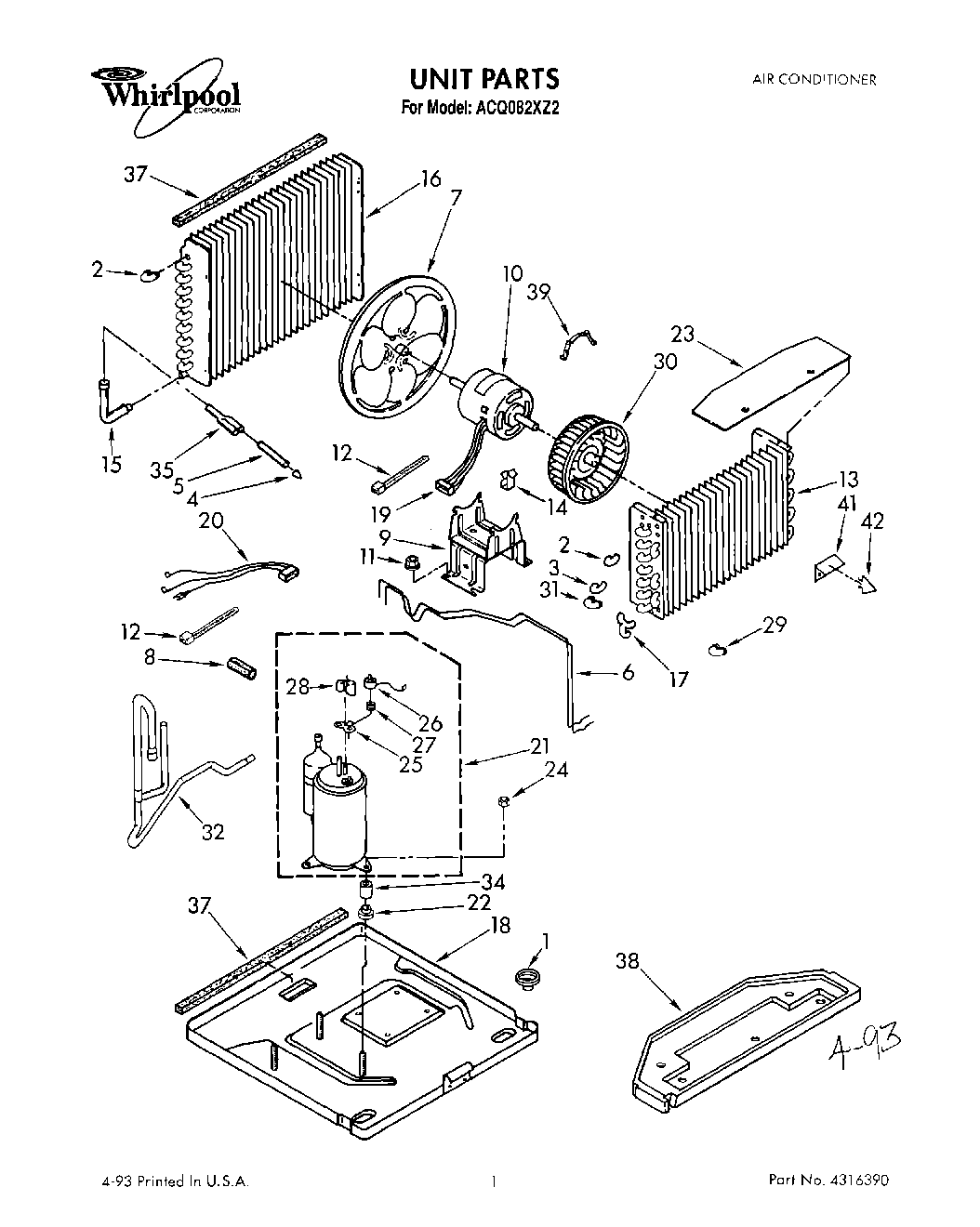

ACQ082XZ2 01 – UNIT

Products

Position	Product
1	Cup, Condensate Drain
2	Bend, Return Evaporator (11)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Clamp (2)
15	Tube, 90~ Connect
16	Condenser
17	Bend, Return (3-Way)
18	Base
19	Terminal Block
20	Harness, Compressor
21	4317916 Whirlpool Air Conditioner Compressor
22	Grommet
23	Insulation, Evaporator Shroud
24	Locknut (3)
25	Gasket, Terminal Cover
26	Overload
27	Spring, Overload
28	Cover, Terminal
29	Bend, Return Evaporator (4)
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (4)
32	Tube, Suction Asy.
34	Sleeve, Compressor (3)
35	Tube, Flow Divider
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator, Temperature
42	Instructions, Installation
42	Clip, Anticipator
42	Manual, Use & Care Guide
42	Tech Sheet
42	Wiring Diagram
42	Literature Parts (List, Repair Parts)
