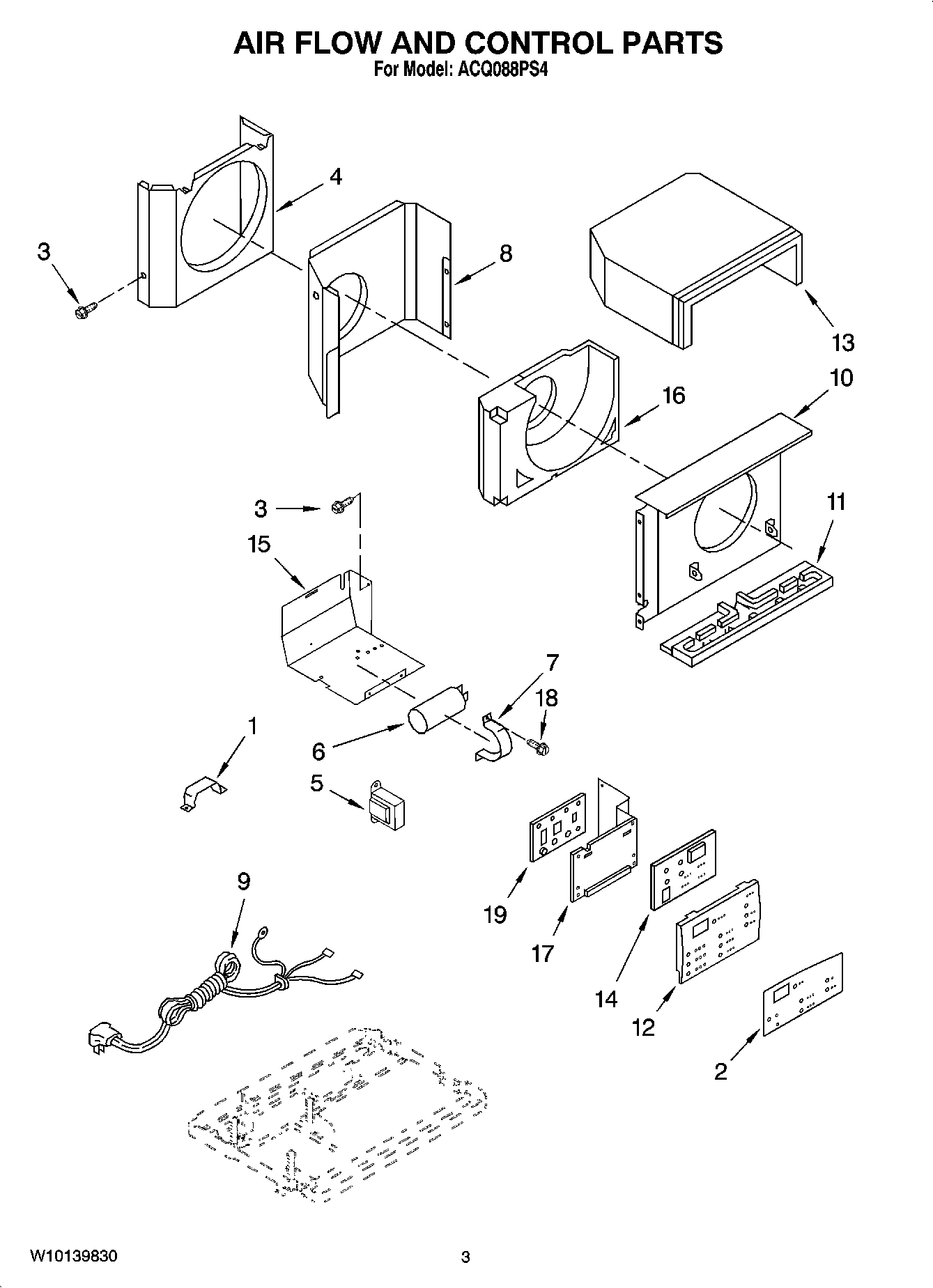

ACQ088PS4 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Clamp, Cable
2	Overlay
3	Screw
4	Shroud, Condenser
5	Transformer
6	Capacitor, Running
7	Bracket, Capacitor
8	Wall, Dividing
9	Cord, Appliance
10	Shroud, Evaporator
11	Pan, Evaporator
12	Housing, Control Panel
13	Hood, Air Housing
14	Interface Board, (Low Voltage)
15	Panel, Rear- Control Box
16	Housing, Air
17	Panel, Front- Control Box
18	W11245710 Whirlpool Refrigerator Screw
19	Main Board (High Voltage)
