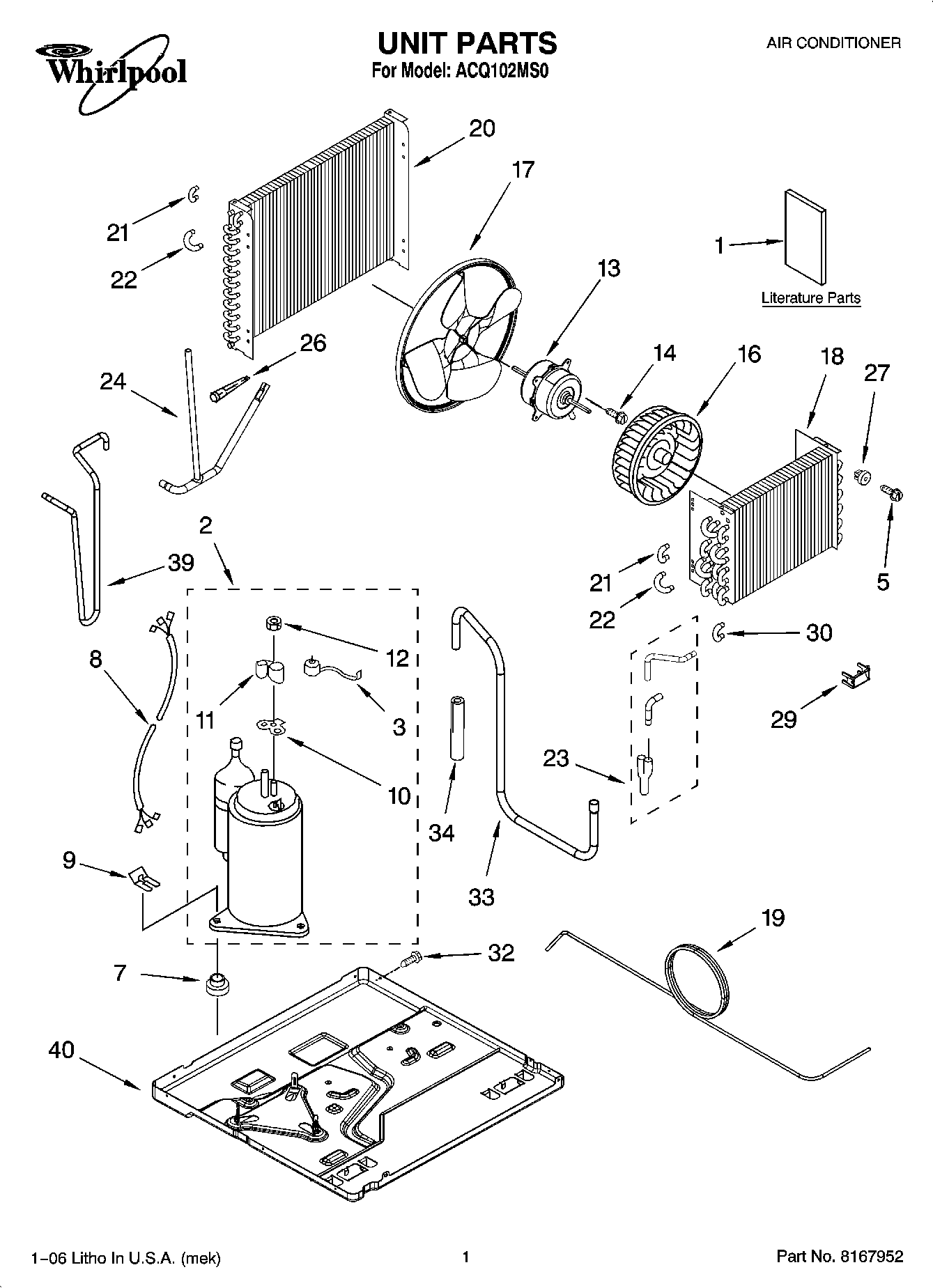

ACQ102MS0 01 – UNIT PARTSadmin2025-04-26T10:46:49+00:00ACQ102MS0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Wiring Diagram |
| 2 | Compressor |
| 3 | Overload |
| 5 | WP98165 Whirlpool Screw |
| 7 | Grommet |
| 8 | Wiring Harness, Compressor |
| 9 | Clip, Compressor |
| 10 | Gasket, Terminal Cover |
| 11 | Cover, Terminal |
| 12 | W10833054 Whirlpool Air Conditioner Mounting Nut |
| 13 | Motor, Fan |
| 14 | Screw |
| 16 | Wheel, Blower |
| 17 | Blade, Fan |
| 18 | Evaporator |
| 19 | Tube, Restrictor |
| 20 | Condenser |
| 21 | Bend, Return |
| 22 | Bend, Return |
| 23 | Manifold Assembly |
| 24 | Tube, Outlet |
| 26 | WP1162526 Whirlpool Air Conditioner Strainer |
| 27 | Grommet, Screw |
| 29 | Clip, Temperature Anticipator |
| 30 | Bend, Return |
| 32 | WP489464 Whirlpool Refrigerator Screw |
| 33 | Tube, Suction (Includes Item 34) |
| 34 | Seal, Suction Tube |
| 39 | WPW10289690 Whirlpool Ice Maker Cover |
| 40 | Base |
| 40 | REFRIGERANT CHARGE 18.50 oz. |
