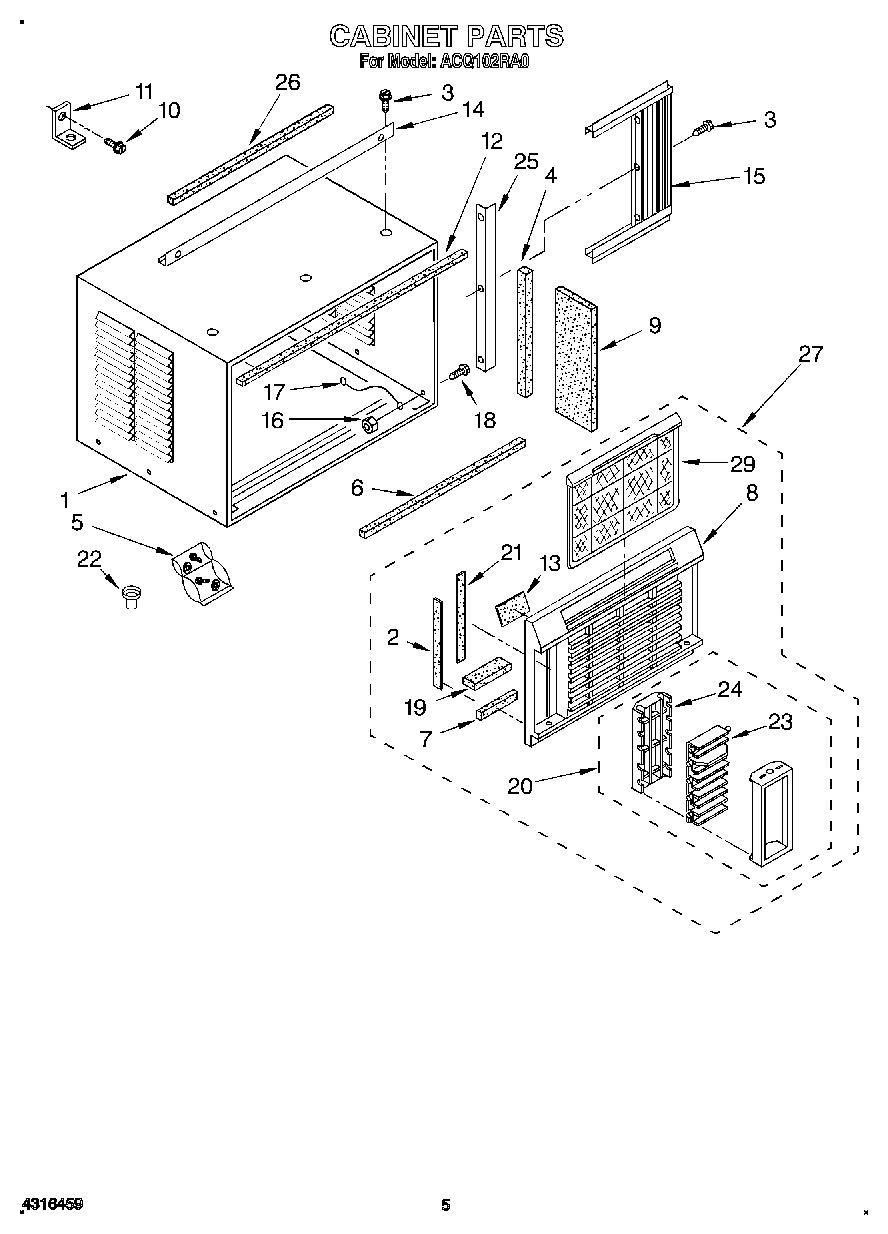

ACQ102RA0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
4	Seal, Strip (2)
5	Accessory, Bag
6	Seal
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
10	Screw, Wood 8-15 x .750
11	Bracket
12	Seal, Cabinet Top
13	Seal, Front
14	Chanel, Top
15	Curtain (L.S.)
15	Curtain (R.S.)
16	WP486255 Whirlpool Air Conditioner Nut
17	Wire, Ground
18	Screw, 8 x 3/8
19	Seal, Front
20	Cartridge, Complete
21	Seal, Side (2)
22	Cup, Condensate Drain
23	Horzontal Louver
24	Ribs, Vertical
25	Retainer, Curtain
26	Gasket, Meeting Rail
27	Front, Complete
29	Filter
