ACQ102XA0 01 – UNIT, LITERATURE
Written by
in

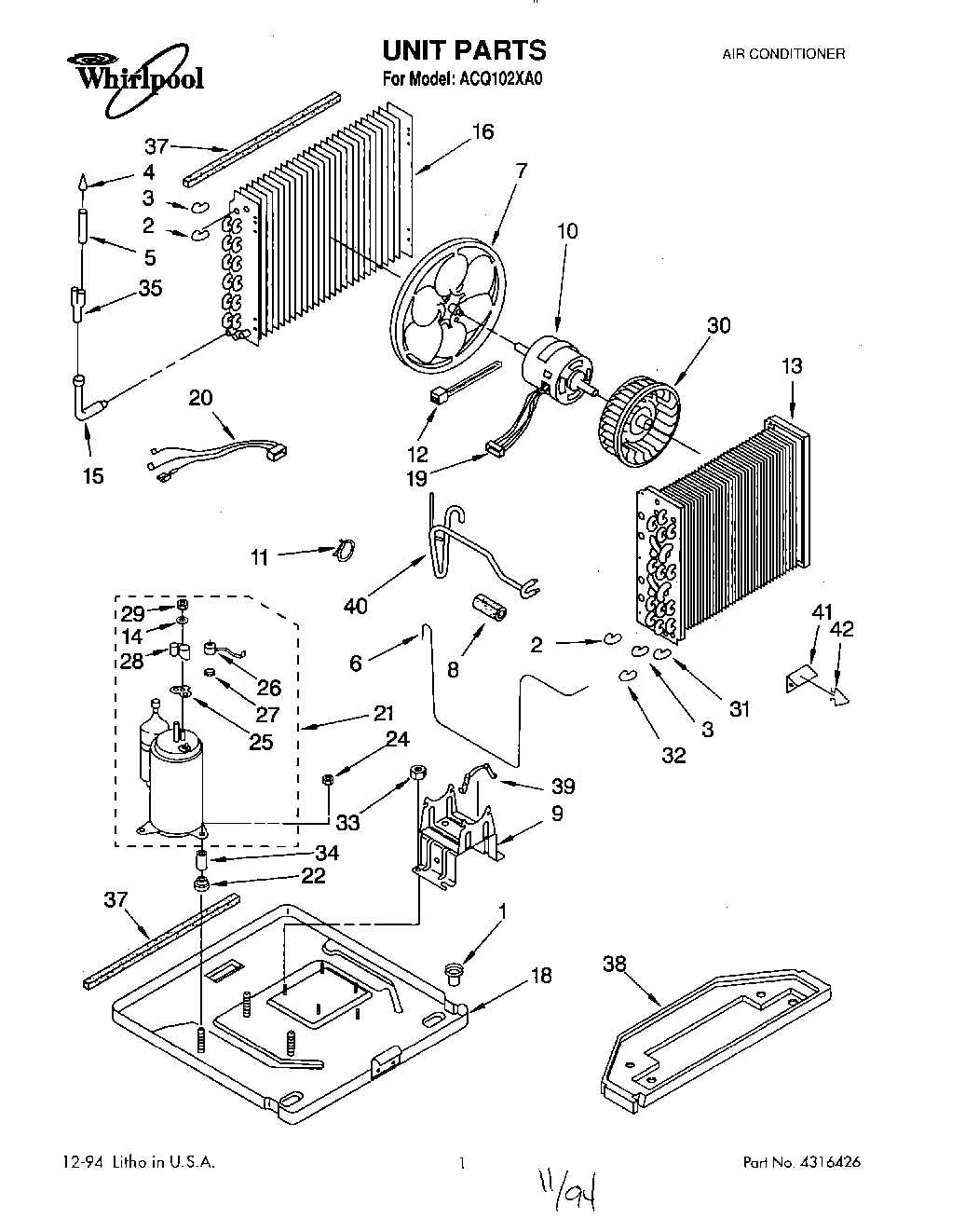

ACQ102XA0 01 – UNIT, LITERATURE
Products
Position
Product
Wiring Diagram
Tech Sheet
Manual, Use & Care Guide
Instructions, Installation
1
Cup, Condensate Drain
2
Bend, Return Condenser (10)
3
Bend, Return Condenser (4)
4
Strainer
5
Tube, Outlet (Includes No. 26)
6
Tube, Restrictor (2)
7
Blade, Fan (Condenser)
8
Seal, Suction Tube
9
Bracket, Fan Motor
10
Motor, Fan
11
Clamp (2)
12
WPW10339879 Whirlpool Wire Tie
13
Evaporator
14
Gasket, Nut
15
Tube, Connecting
16
Condenser
18
Base
19
Terminal Block
20
Harness, Wiring
21
Compressor
22
WP950021 Whirlpool Grommet
24
Locknut (3)
25
WP950035 Whirlpool Cover Gasket
26
Overload
27
Spring, Overload
28
WP950036 Whirlpool Cover Assembly
29
WP950027 Whirlpool Mounting Nut
30
Wheel, Blower (Evaporator)
31
Bend Return
32
Bend, Return Condenser (1)
33
WP488130 Whirlpool Air Conditioner Nut
34
Sleeve (3)
35
Tube, Flow Divider
37
WP854334 Whirlpool Air Conditioner Sealing Strip
37
Seal, Condenser Bottom
38
Pan, Drain
39
WPY015825 Whirlpool Motor Clip
40
Tube, Suction
41
Anticipator, Temperature
42
Clip, Anticipator
←
