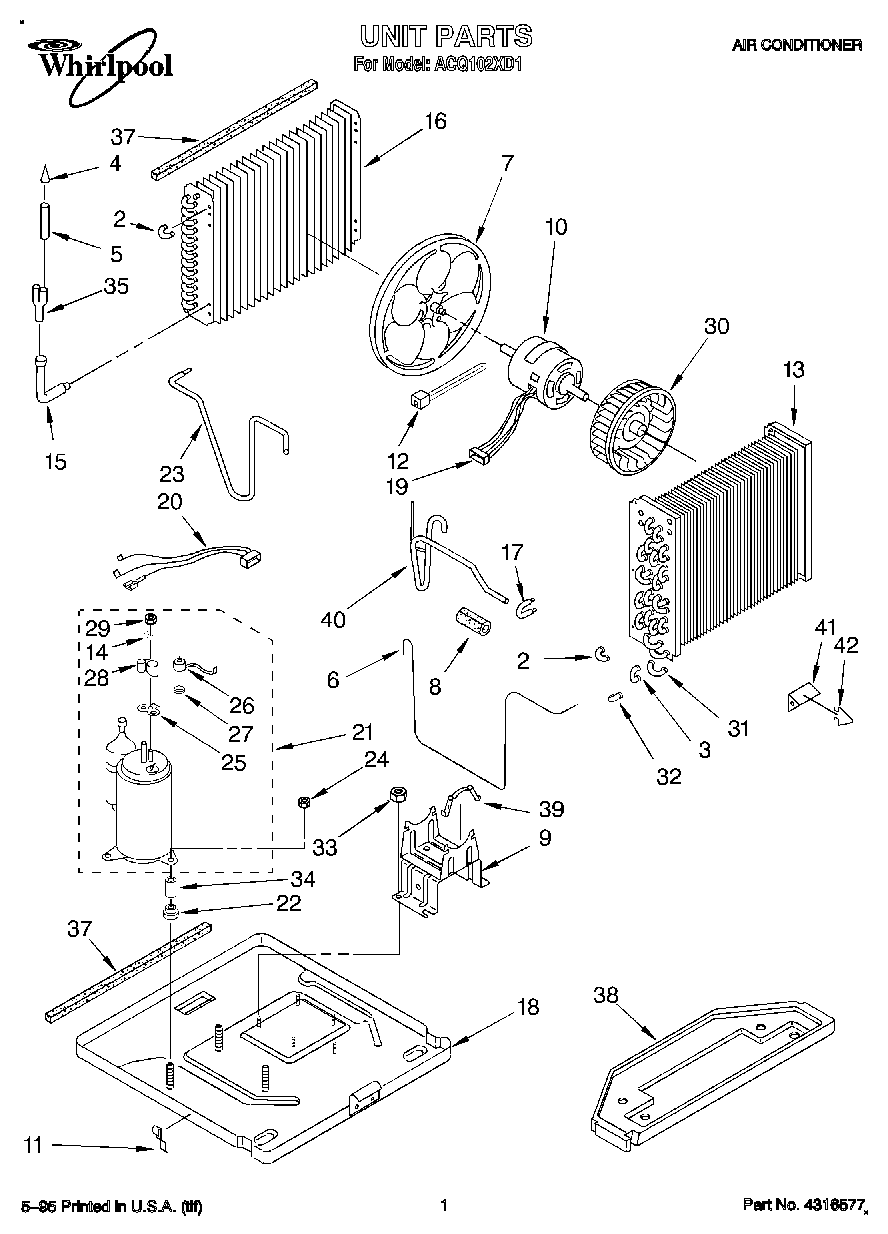

ACQ102XD1 01 – UNIT, LITERATURE

Products

Position	Product
	Use And Care Guide
	Tech Sheet
	Instructions, Installation
	Wiring Diagram
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	Clamp (2)
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, 90~ Connect
16	Condenser
17	Bend, Return 3-Way
18	Base
19	Terminal Block
20	Harness, Wiring
21	Compressor
22	WP950021 Whirlpool Grommet
23	Tube, Discharge
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend Return
32	Bend, Return Condenser (1)
33	WP488130 Whirlpool Air Conditioner Nut
34	Sleeve (3)
35	Tube, Flow Divider
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Suction
41	Anticipator, Temperature
42	Clip, Anticipator
