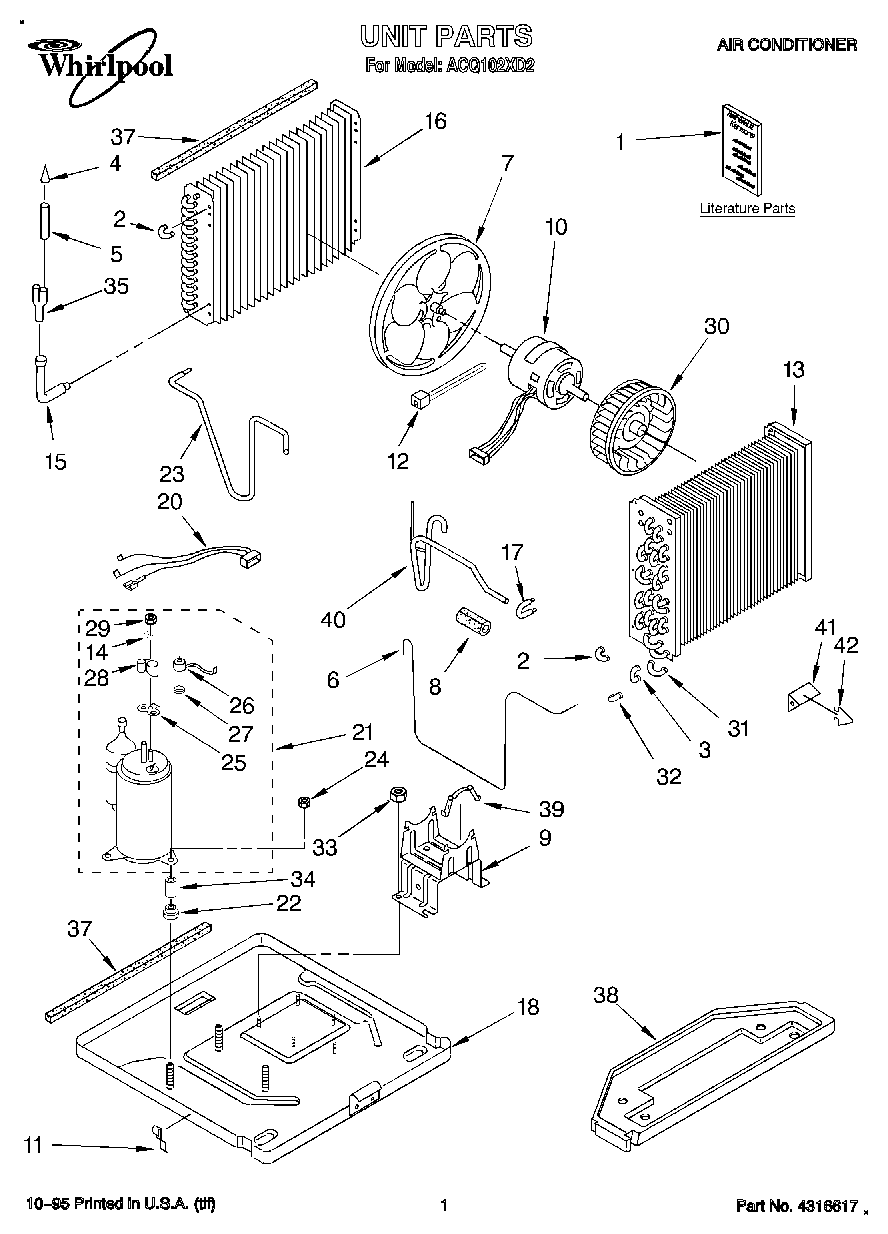

ACQ102XD2 01 – UNIT, LITERATUREadmin2025-04-26T10:44:43+00:00ACQ102XD2 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| 1 | Tech Sheet |
| 1 | Use And Care Guide |
| 1 | Wiring Diagram |
| 1 | Instructions, Installation |
| 2 | Bend, Return Condenser (10) |
| 3 | Bend, Return Condenser (4) |
| 4 | Strainer |
| 5 | Tube, Outlet (Includes No. 26) |
| 6 | Tube, Restrictor (2) |
| 7 | Blade, Fan (Condenser) |
| 8 | Insulation, Suction Tube |
| 9 | Bracket, Fan Motor |
| 10 | Motor, Fan |
| 11 | Clamp (2) |
| 12 | WPW10339879 Whirlpool Wire Tie |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 15 | Tube, 90~ Connect |
| 16 | Condenser |
| 17 | Bend, Return 3-Way |
| 18 | Base |
| 20 | Harness, Wiring |
| 21 | Compressor |
| 22 | WP950021 Whirlpool Grommet |
| 23 | Tube, Discharge |
| 24 | Locknut (3) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 26 | Overload |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 30 | Wheel, Blower (Evaporator) |
| 31 | Bend Return |
| 32 | Bend, Return Condenser (1) |
| 33 | WP488130 Whirlpool Air Conditioner Nut |
| 34 | Sleeve (3) |
| 35 | Tube, Flow Divider |
| 37 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 37 | Seal, Condenser Bottom |
| 38 | Pan, Drain |
| 39 | WPY015825 Whirlpool Motor Clip |
| 40 | Tube, Suction |
| 41 | Anticipator, Temperature |
| 42 | Clip, Anticipator |
