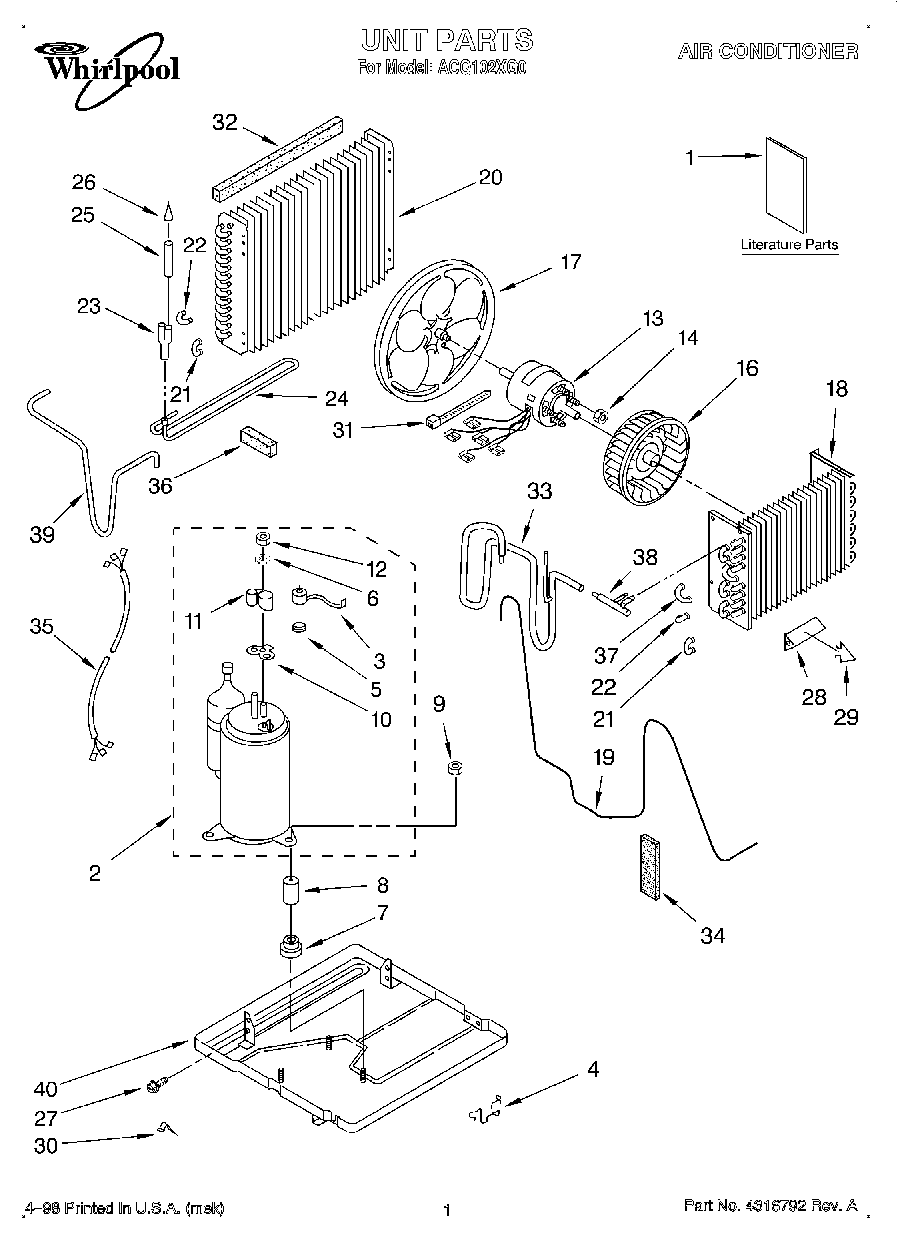

ACQ102XG0 01 – UNIT, LITERATURE

Products

Position	Product
1	Owners Manual
1	Wiring Diagram
1	Tech Sheet
2	Compressor
3	Overload
4	Clip, Mtg. (2)
5	Spring, Overload
6	Gasket, Nut
7	WP950021 Whirlpool Grommet
8	Sleeve (3)
9	Locknut (3)
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Wheel, Blower (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Condenser (10)
23	Tube, Flow Divider
24	Tube, Wet Loop (Includes Items 23, 25, & 26)
25	Tube, Outlet (Includes Illus. 24)
26	Strainer
27	WP489069 Whirlpool Compactor Screw
28	Anticipator
29	Clip, Anticipator
30	Clamp, Restrictor Tube
31	WPW10339879 Whirlpool Wire Tie
32	Seal, Condenser Top
33	Tube, Suction
34	Seal, Anti-Rub
35	Harness, Wiring
36	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Tube, Riser (2)
38	Manifold, Suction
39	Tube, Discharge
40	Base
