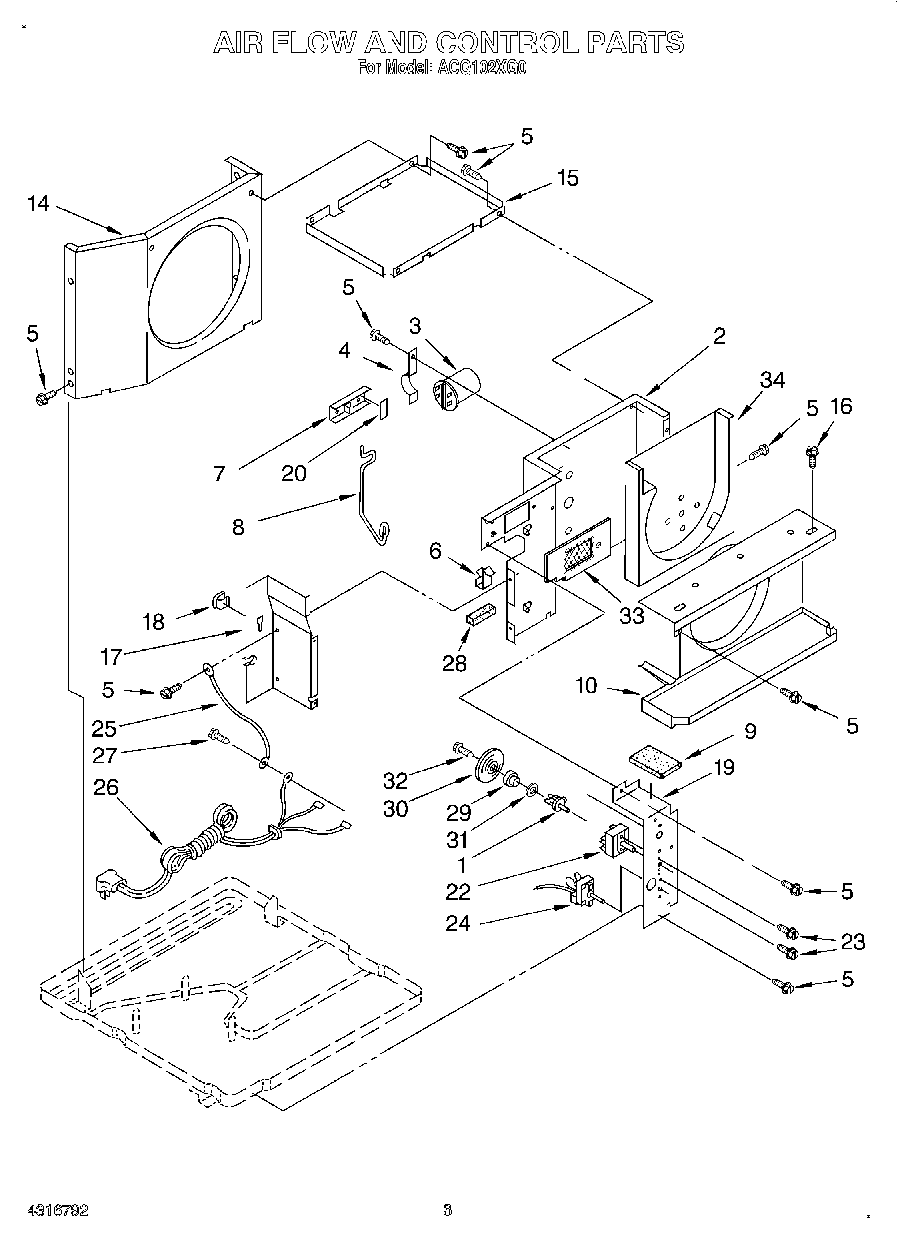

ACQ102XG0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shaft, Control
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Wiring
7	Door, Exhaust
8	Arm, Exhaust Door
9	Insulation, Top (Control Panel)
10	Shroud, Evaporator
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall
18	Clip, Retainer
19	Panel, Control
20	Spacer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Temperature
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Seal, Anti-Rub
29	Bushing, Shaft
30	Cam, Control
31	Washer
32	Screw, 7-18 x 5/8
33	Screen, Insulation Assembly
34	Scroll, Air Housing
