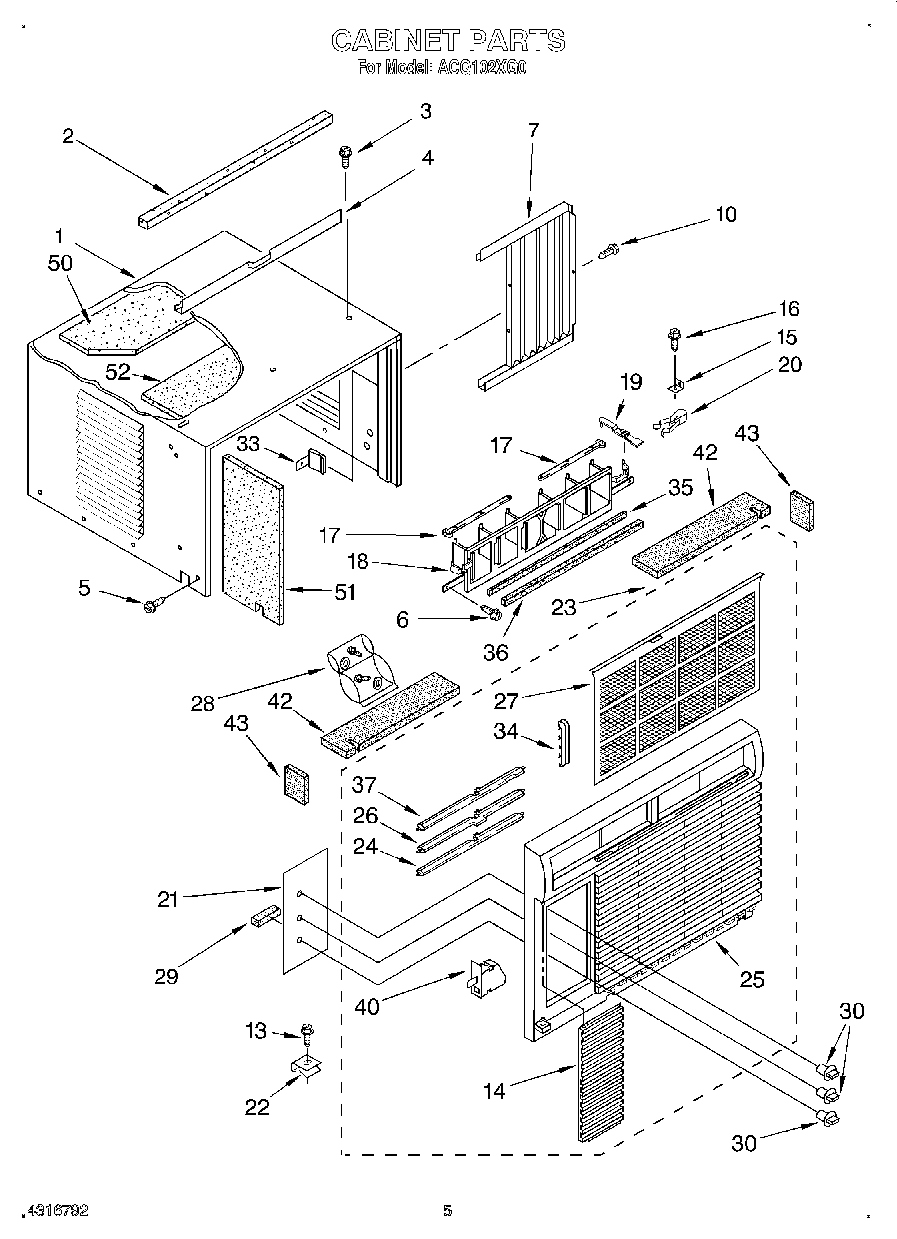

ACQ102XG0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Screw 8-18 x .295
7	Housing, Curtain L.S. (Includes No.8)
7	Housing, Curtain R.S.(Includes No.8)
10	Screw, 8-18 x 3/8
13	Screw (2)
14	Door, Control
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Vertical Louver (2)
18	Louver, Vertical
19	Handle, Vertical Louver (2)
20	Spring, Detent (2)
21	Plate, Escutcheon
22	Clip, Cabinet Front (2)
23	Front, Cabinet
24	Louver, Horizontal (6)
25	Frame, Front
26	Louver, Horizontal (Handle) (2)
27	Filter, Air
28	Bag, Accessory
29	Spacer, Escutcheon Plate (2)
30	Knob (3)
33	Clip, Vertical Louver
34	Link, Horizontal Louver (2)
35	Seal, Vertical Louver
36	Seal, Condenser Bottom
37	Louver, Horizontal (Notch Left)
37	Louver, Horizontal (Notch Right)
40	Monitor, Filter
42	Seal, (2) (Front Top)
43	Seal, (2) (Front Side)
50	Insul. Cabinet
51	Cabinet, Insul. (Right Side)
51	Cabinet, Insul. (Left Side)
52	Insulation, Top
