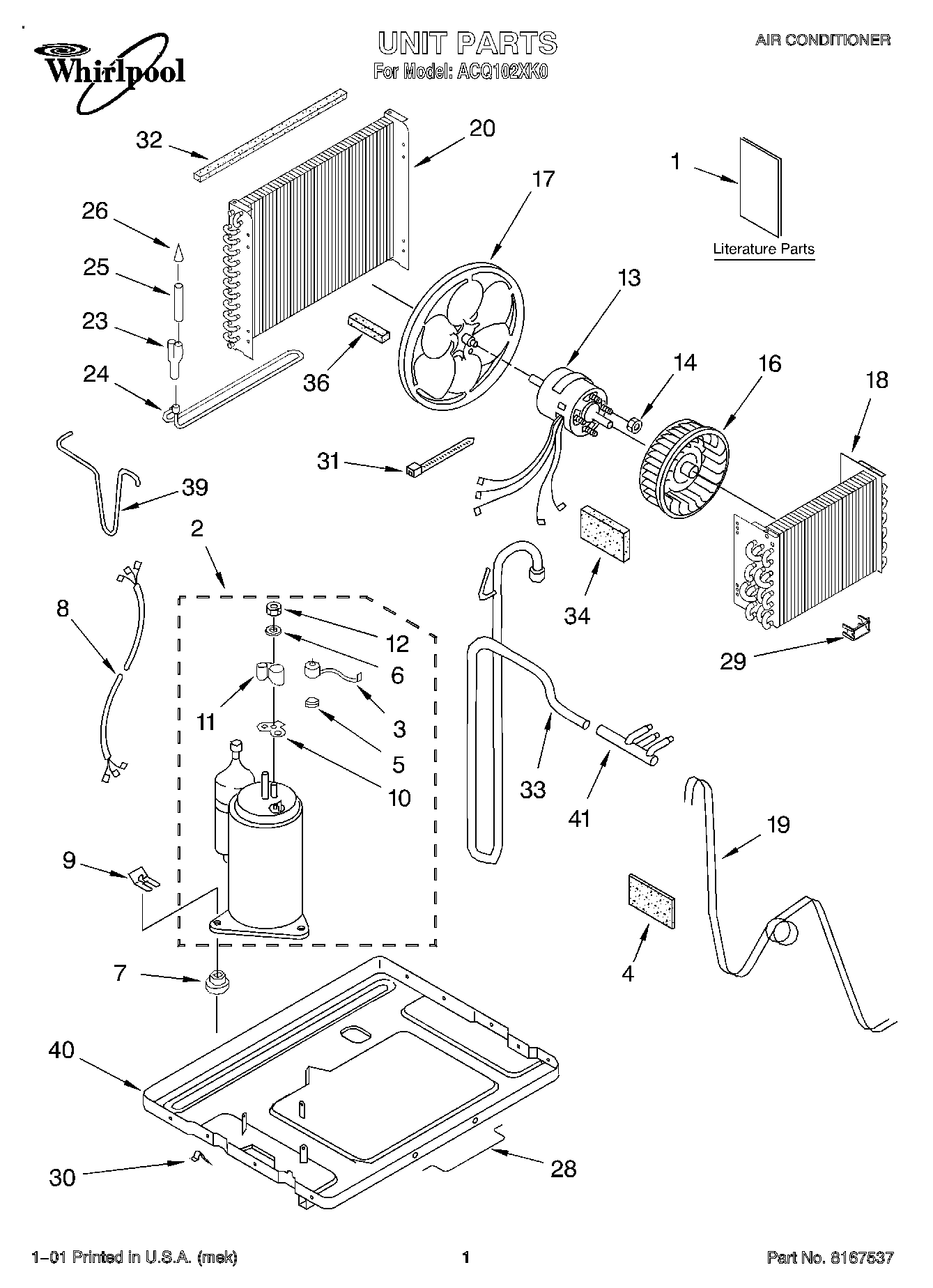

ACQ102XK0 01 – UNIT, LITERATURE

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Guide
1	Use & Care Guide
2	Compressor
3	Overload
4	Seal, Restrictor Tube
5	Spring, Overload
6	Gasket, Nut
7	Grommet
8	Wiring Harness, Compressor
9	Clip, Compressor
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
16	Wheel, Blower
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet
26	Strainer
28	Handle, Base
29	Clip, Thermistor
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal
33	Tube, Suction
34	Insulation, Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
39	Tube, Discharge
40	Base
41	Tube, Manifold
