ACQ102XK0 03 – CABINET

ACQ102XK0 03 – CABINET

Written by

in

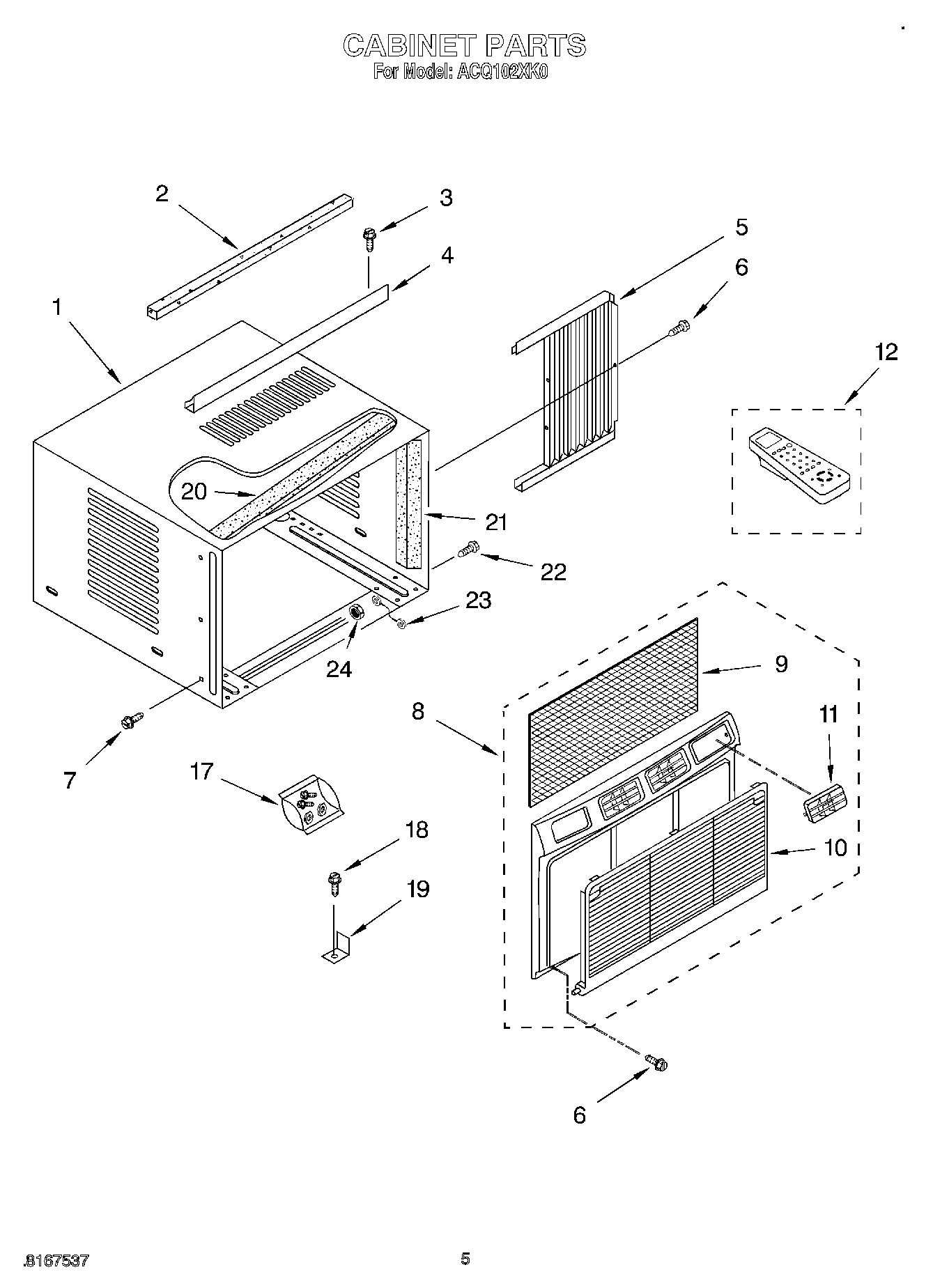

ACQ102XK0 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP3390631 Whirlpool Screw
4Channel, Top
5Curtain ((Right Side))
5Curtain ((Left Side))
6Screw, 8-18 x 3/8
7Screw, 8 x 3/8
8Front
9Filter
10Grille, Front
11Louver Assembly
12Control, Remote
17Accessory, Bag
18Screw, Wood 8-15 x .750
19Bracket
20Seal, Top Cover
21Seal, Cabinet Side (2)
22WP488234 Whirlpool Air Conditioner Screw
23Wire, Ground
24WP486255 Whirlpool Air Conditioner Nut
