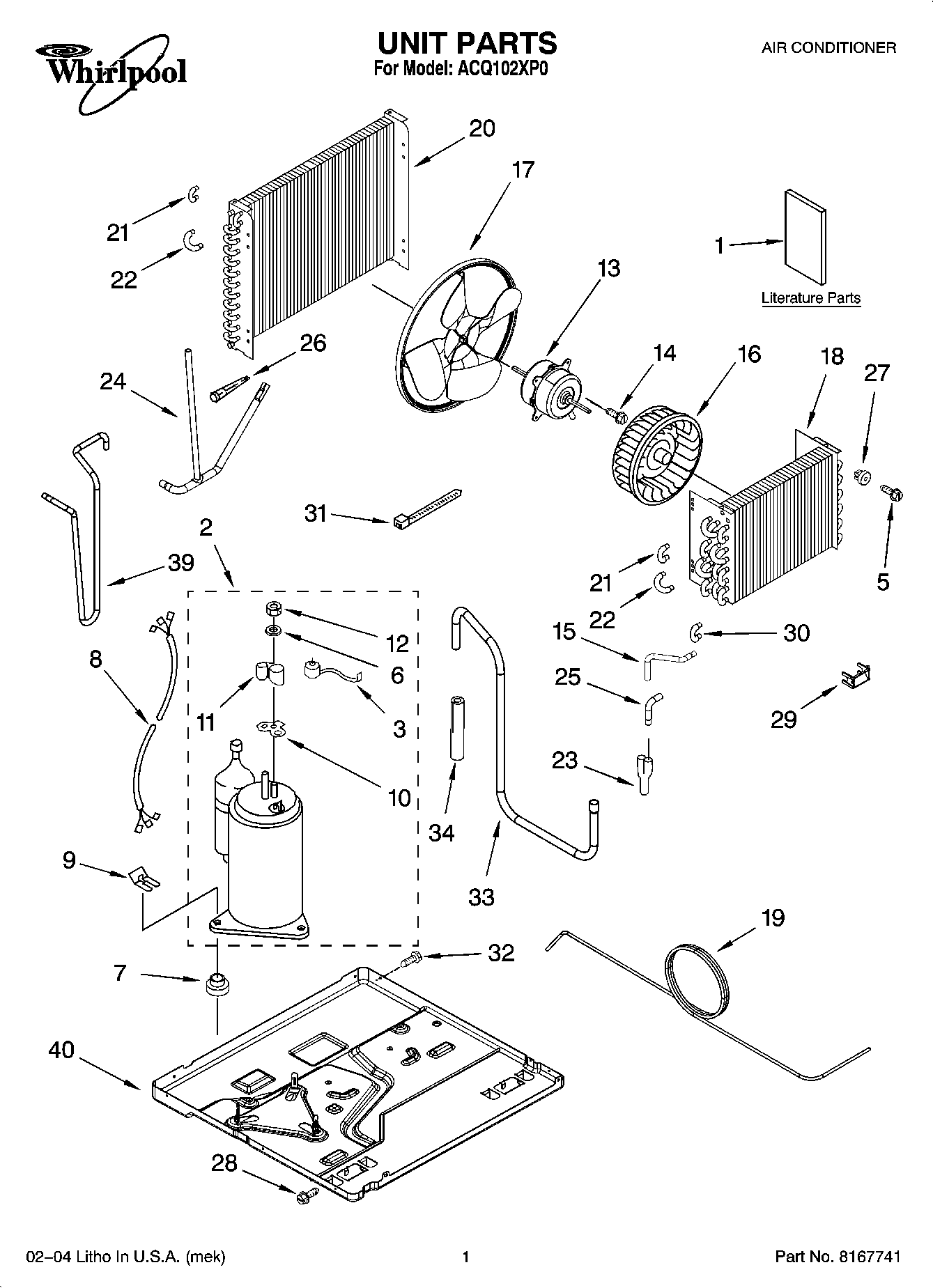

ACQ102XP0 01 – UNIT PARTS

Products

Position	Product
1	LITERATURE PARTS (Wiring Diagram)
1	Energy Guide
1	Use & Care Guide
2	Compressor
3	OVERLOAD
5	WP489463 Whirlpool Refrigerator Screw
6	Gasket
7	Grommet
8	Wiring Harness, Compressor
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	W10833054 Whirlpool Air Conditioner Mounting Nut
13	Motor, Fan
14	WPW10109200 Whirlpool Screw
15	Tube, Feeder
16	Wheel, Blower
17	Blade, Fan
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Condenser (4)
22	Bend, Return Evaporator (4) Condenser (4)
23	Tube, Flow Divider
24	Tube, Outlet
25	Tube, Feeder
26	WP1162526 Whirlpool Air Conditioner Strainer
27	Grommet, Screw
28	Screw, 8 x 3/8
29	Clip, Anticipator
30	Bend, Return
31	WPW10339879 Whirlpool Wire Tie
32	WP488729 Whirlpool Refrigerator Door Screw
33	Tube, Suction (Includes Item 34)
34	Seal, Suction Tube
39	Tube, Discharge
40	Base
40	REFRIGERANT CHARGE 17.00 oz.
