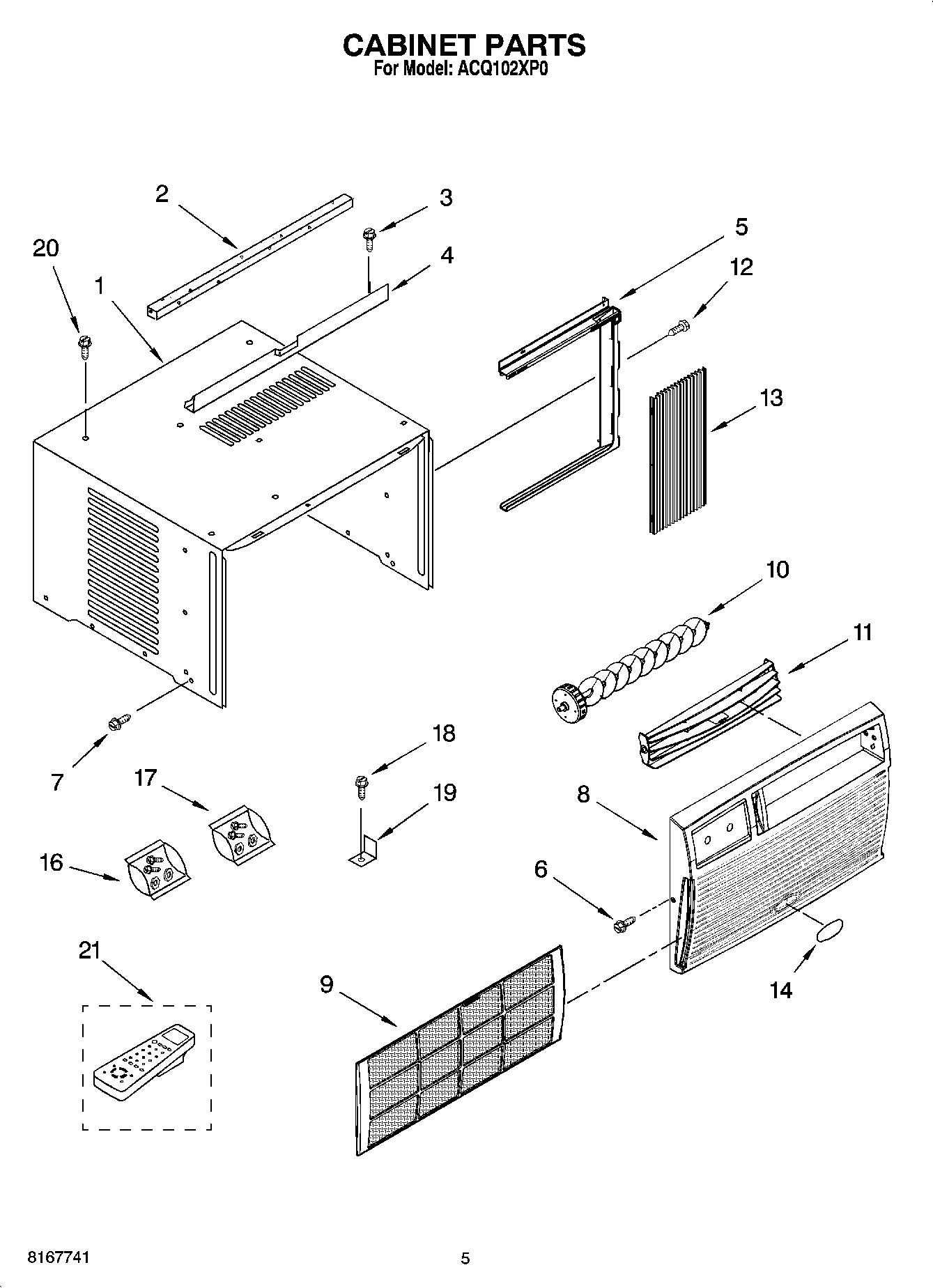

ACQ102XP0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP3390631 Whirlpool Screw
4	Channel, Top
5	Frame, Curtain (Left Side)
5	Frame, Curtain (Right Side)
6	WP3196557 Whirlpool Screw
7	Screw, 8 x 3/8
8	Front
9	Filter
10	Louver, Vertical
11	Louver Horizontal
12	WP965173 Whirlpool Dishwasher Screw
13	Curtain
14	WP2213265 Whirlpool Refrigerator Nameplate
16	Bag, Accessory
17	Bag, Accessory (for Curtains)
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP9740848 Whirlpool Dishwasher Screw
21	Control, Remote
