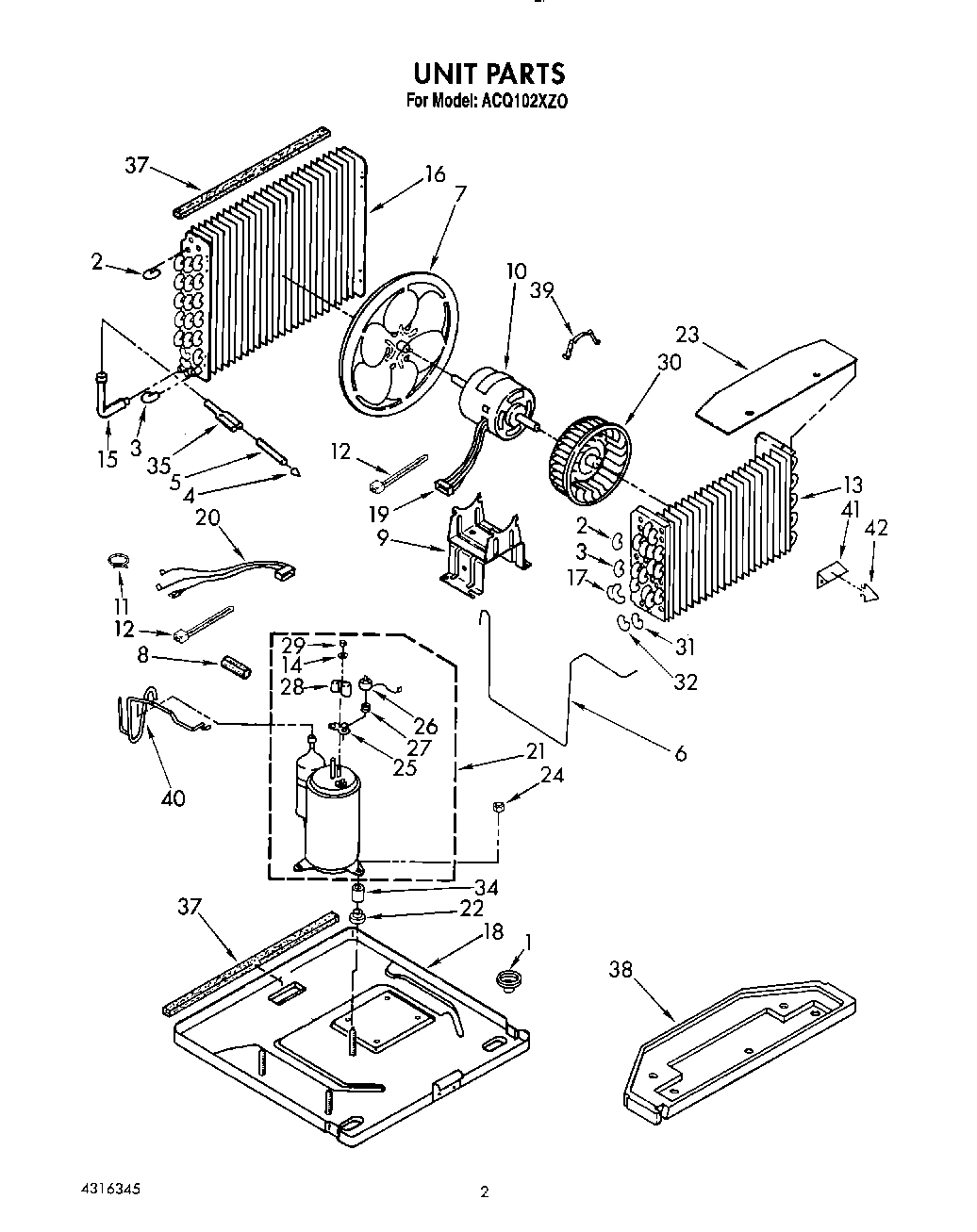

ACQ102XZ0 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
1	Cup, Condensate Drain
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	Clamp, Restrictor Tube
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Bend, Return 3-Way
18	Base
19	Terminal Block
20	Harness, Wiring – Control Box
21	Compressor
22	WP950021 Whirlpool Grommet
23	Insulation, Evaporator Shroud
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend Return
32	Bend, Return Condenser (1)
34	Sleeve (3)
35	Tube, Flow Divider
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Suction
41	Anticipator, Temperature
42	Instructions, Installation
42	Clip, Anticipator
42	Manual, Use & Care Guide
42	Tech Sheet
42	Wiring Diagram
42	Literature Parts (List, Repair Parts)
