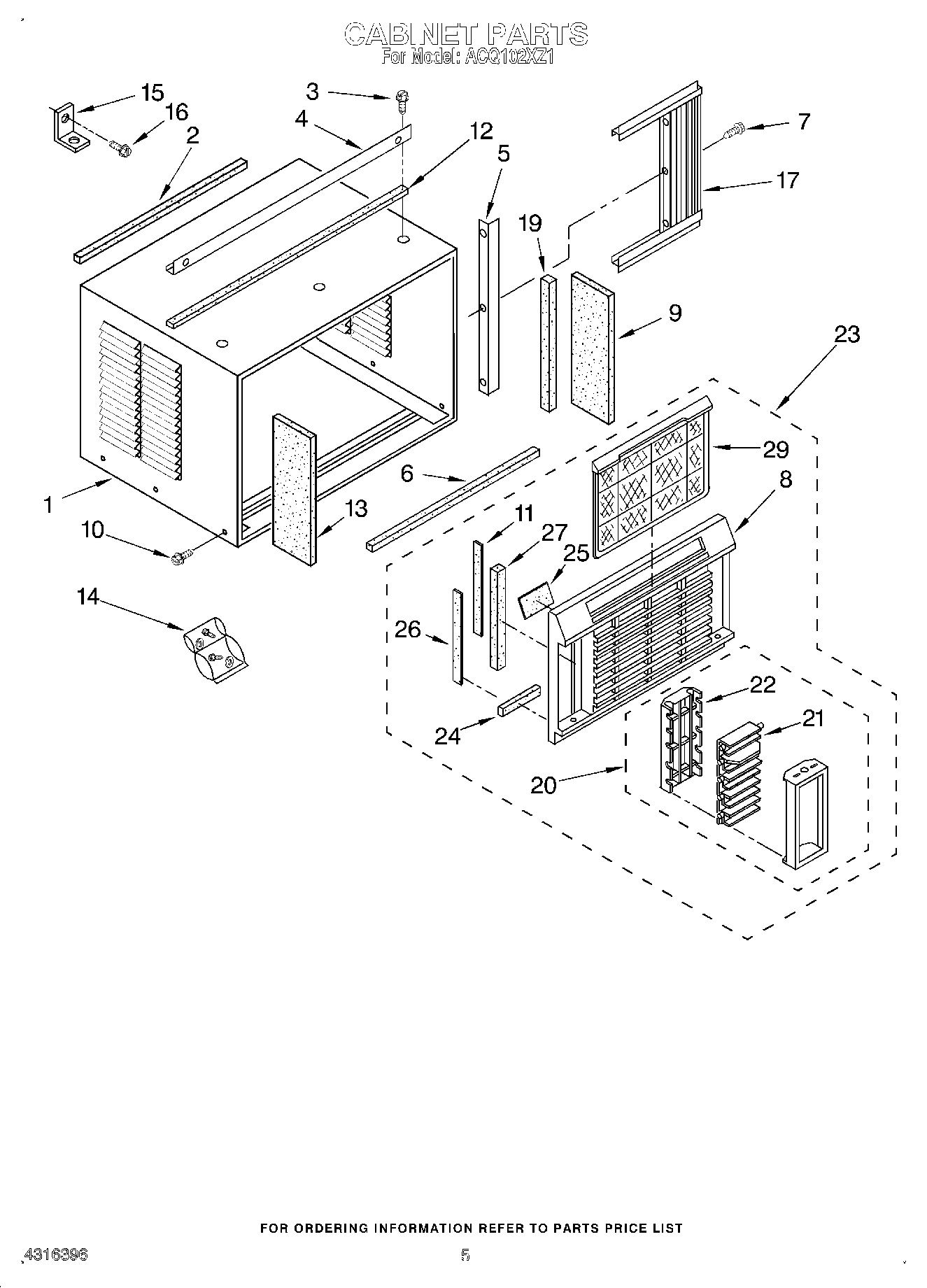

ACQ102XZ1 03 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Chanel, Top
5Retainer, Curtain
6Seal
8Cabinet Front
9Insulation (2)
10Screw, 8-18 x 3/8
11Seal, Side (2)
12Seal, Cabinet Top
13Insulation, Cabinet Side
14Accessory, Bag
15Bracket
16Screw, Wood 8-15 x .750
17Curtain (Left Side)
17Curtain (Right Side)
19Seal, Strip (2)
20Cartridge, Complete
21Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal, (2)
25Seal, Front
26Seal, Front – Sides (2)
27Seal, Front
29Filter
