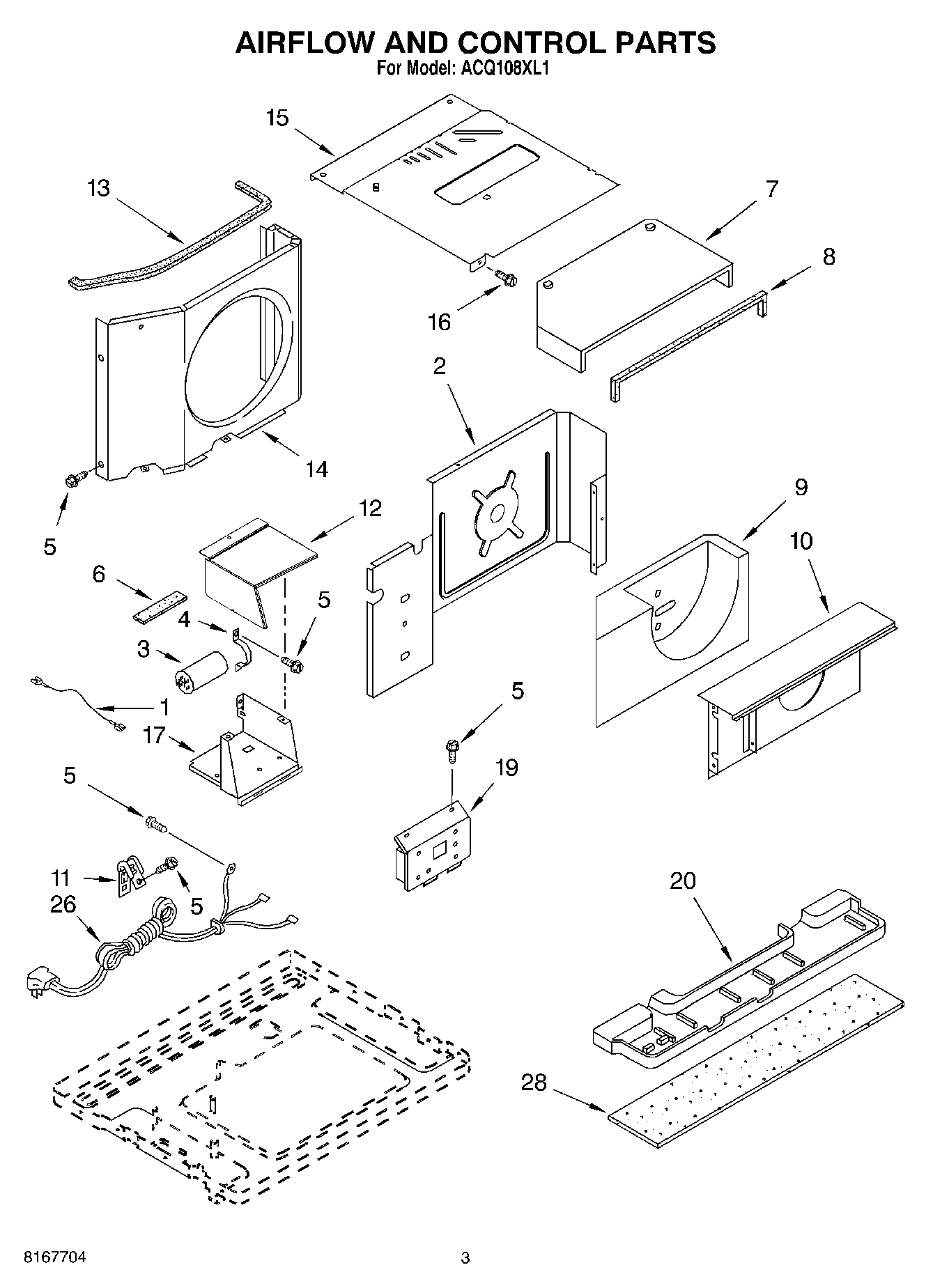

ACQ108XL1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Wire, Jumper
2	Wall, Dividing
3	Capacitor, Running
4	WP1160674 Whirlpool Bracket
5	Screw 8-18 x .295
6	Seal
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
11	549193 Whirlpool Refrigerator Power Clamp
12	Cover, Control Box
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	Screw, 8 x 3/8
17	Box, Control
19	Control, Electronic
20	Pan, Drain
26	Cable, Appliance
28	Insulation, Drain Pan
