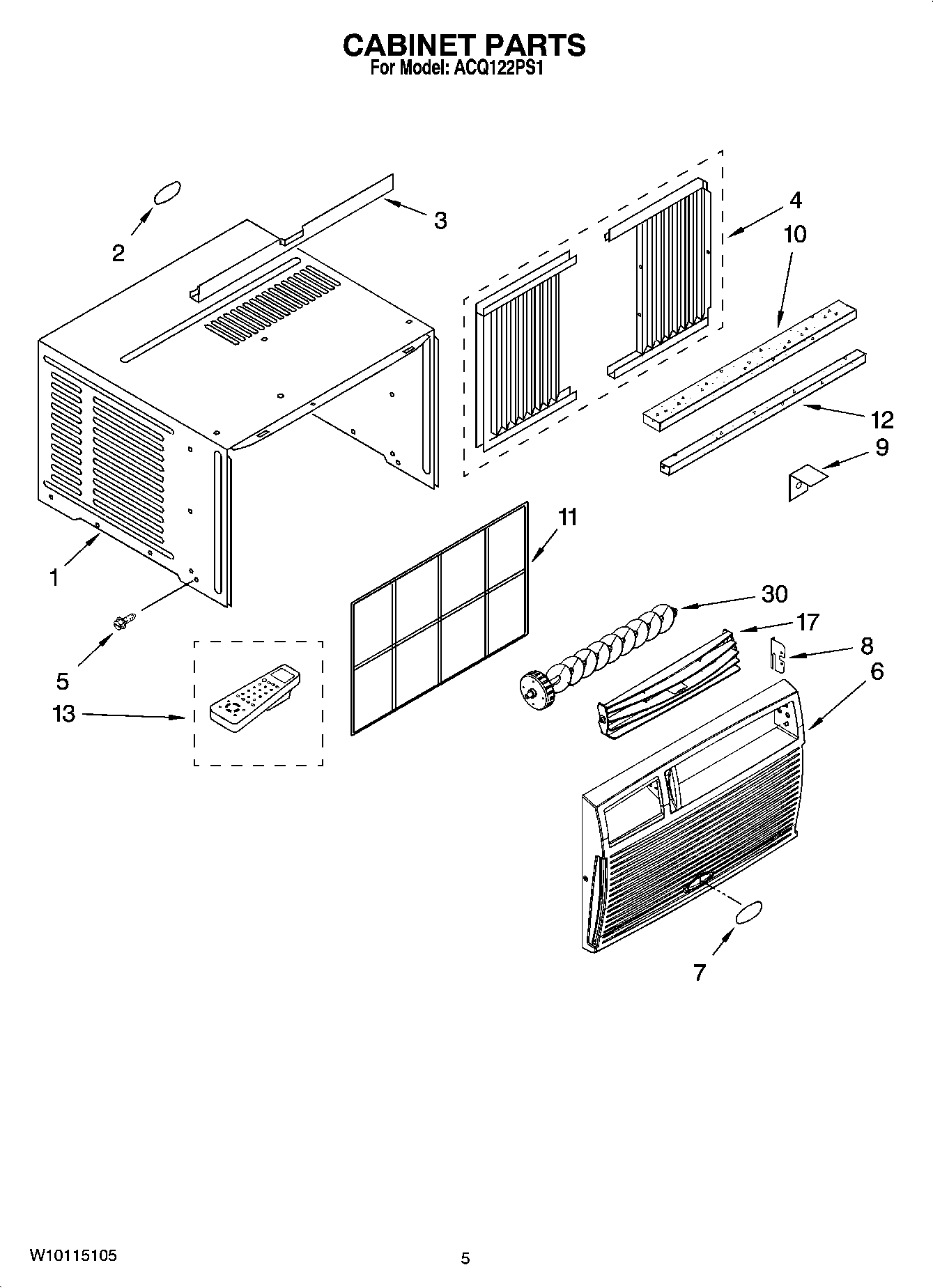

ACQ122PS1 03 – CABINET PARTS

Written by

Products

Position	Product
1	CABINET
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assembly Right & Left Side (Includes Item 3)
5	W11245710 Whirlpool Refrigerator Screw
6	Front Cabinet
7	Nameplate
8	Support, Louver
9	Bracket, Window Lock
10	Seal-Strip, Wide
11	Filter
12	Seal-Strip, Narrow
13	Control, Remote
17	Louver, Assembly
30	Louver, Vertical
