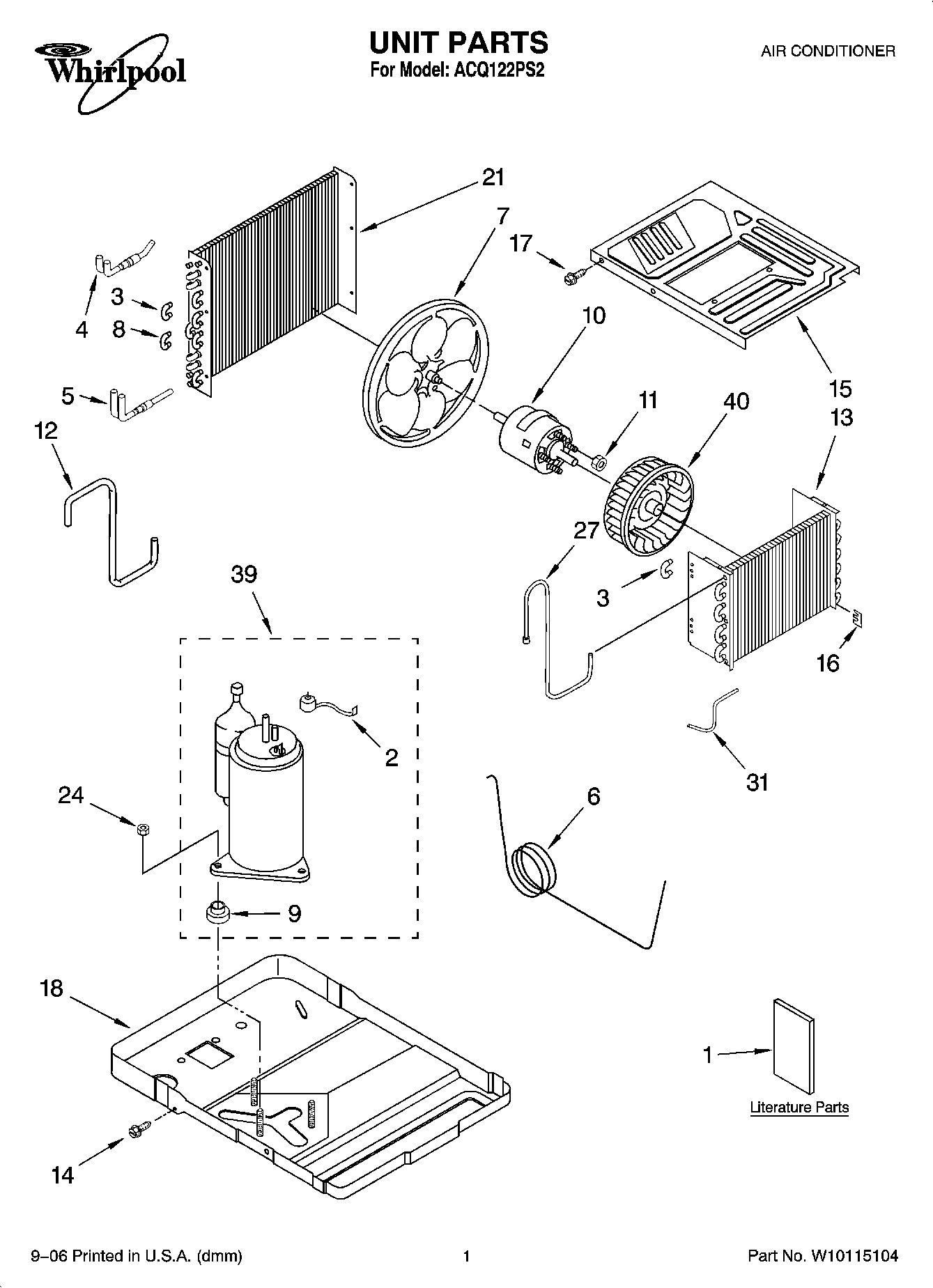

ACQ122PS2 01 – UNIT PARTS

Products

Position	Product
1	Use & care Guide
1	Energy Guide
1	Wiring Diagram
2	Overload
3	Bend, Return
4	Tube, Inlet
5	Tube, Outlet
6	Tube, Restrictor
7	Blade, Fan
8	Bend, Return
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	Evaporator
14	W11245710 Whirlpool Refrigerator Screw
15	Cover, Evaporator
16	Support, Tube Sensor
17	Screw
18	BASE
21	Condenser
24	Nut, Hex
27	Tube, Suction
31	Tube, Inlet
39	Compressor Assembly
40	REFRIGERANT CHARGE 32.80 oz.
40	Wheel, Blower
