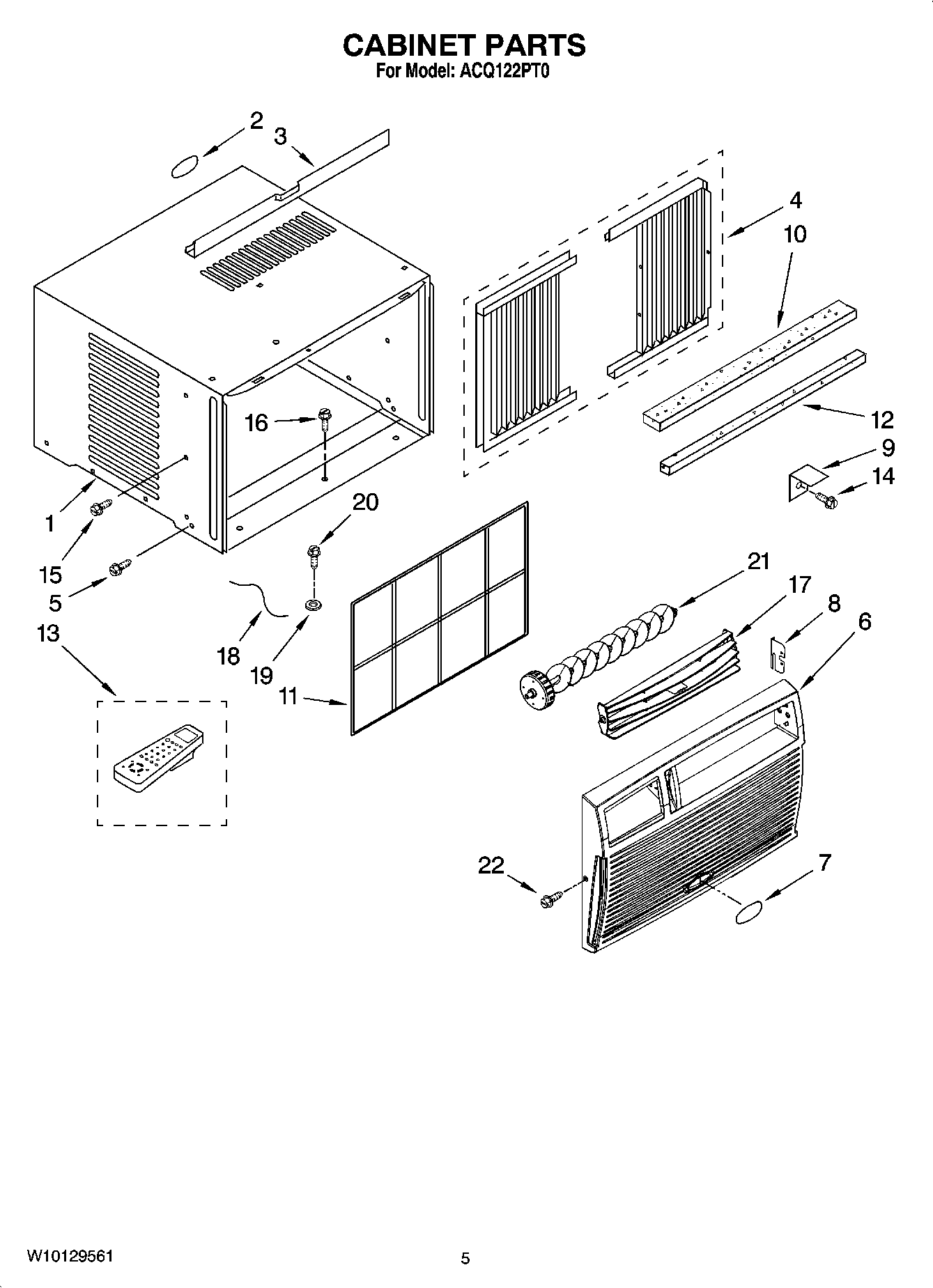

ACQ122PT0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Nameplate, Rear
3	Channel, Top
4	Curtain Assembly Right & Left Side (Includes Item 3)
5	Screw
6	Front Cabinet
7	Nameplate
8	Support, Louver
9	Bracket, Window Lock
10	Seal-Strip, Wide
11	Filter
12	Seal-Strip, Narrow
13	Control, Remote
14	SCREW
15	SCREW
16	SCREW
17	Louver, Assembly
18	Ground Wire
19	WASHER
20	SCREW
21	Louver, Vertical
22	W11245710 Whirlpool Refrigerator Screw
