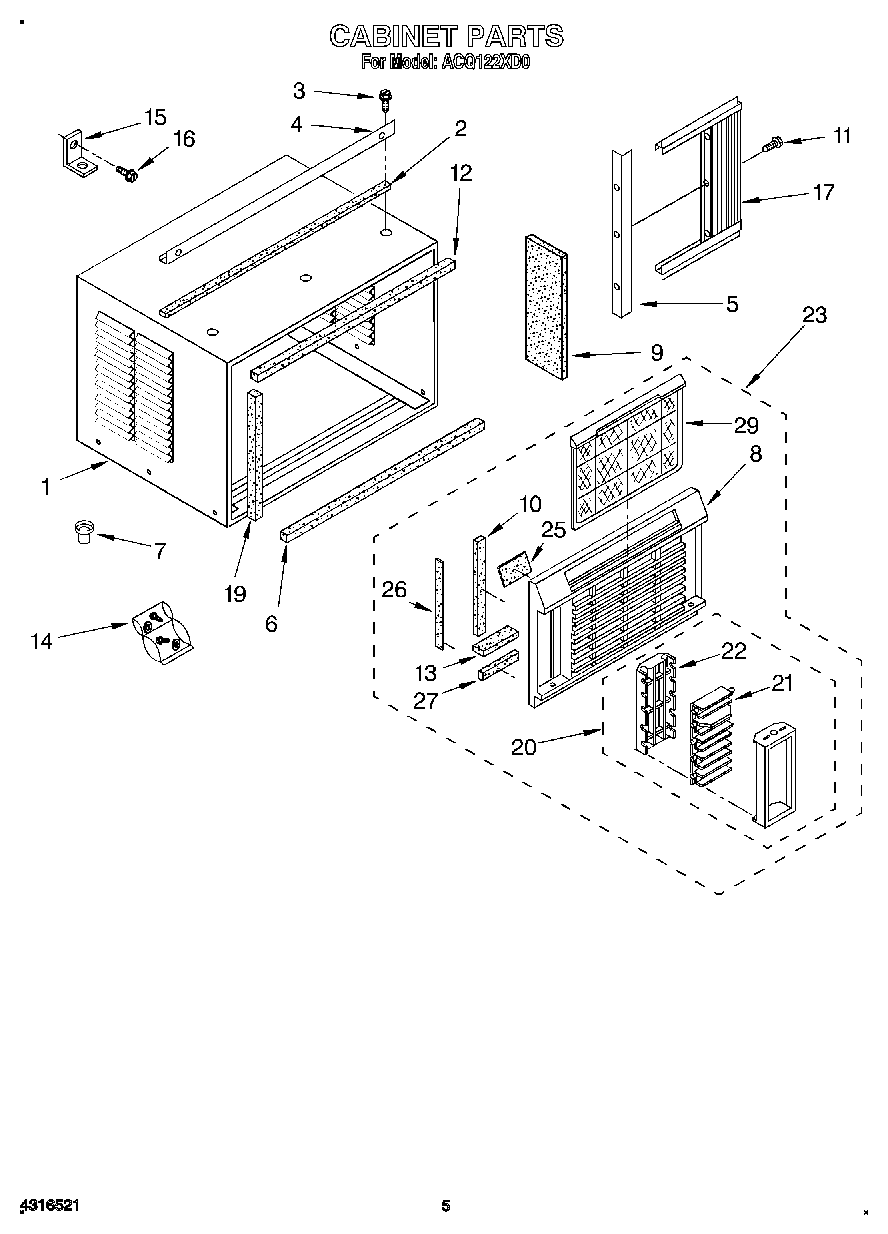

ACQ122XD0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Chanel, Top
5	Retainer, Curtain
6	Seal
7	Cup, Condensate Drain
8	Cabinet Front
9	Insulation (2)
10	Seal, Side (2)
11	Screw, 8-18 x 3/8
12	Seal, Cabinet Top
13	Seal, Front
14	Accessory, Bag
15	Bracket
16	Screw, Wood 8-15 x .750
17	Curtain (R.S.)
17	Curtain (L.S.)
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horzontal Louver
21	Horizontal Louver
22	Ribs, Vertical
23	Front, Complete
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal, (2)
29	Filter
