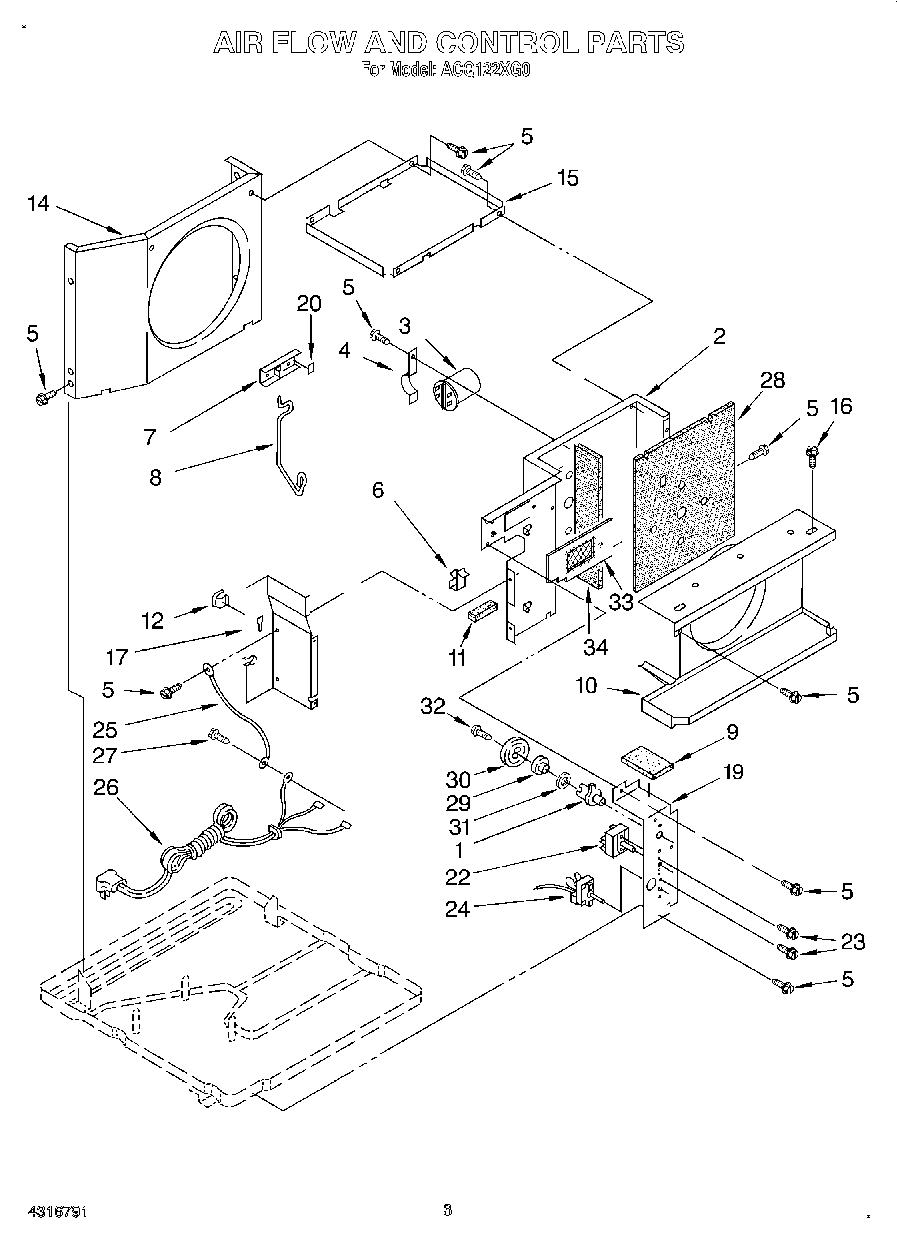

ACQ122XG0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shaft, Control
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Wiring
7	Door, Exhaust
8	Arm, Exhaust Door
9	Insulation, Top (Control Panel)
10	Shroud, Evaporator
11	Seal, Anti-Rub
12	Clip, Retainer
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall
19	Panel, Control
20	Spacer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Temperature
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Insulation (Back, Dividing Wall)
29	Bushing, Shaft
30	Cam, Control
31	Washer
32	Screw, 7-18 x 5/8
33	Screen, Insulation Assembly
34	Insulation (Side, Dividing Wall)
