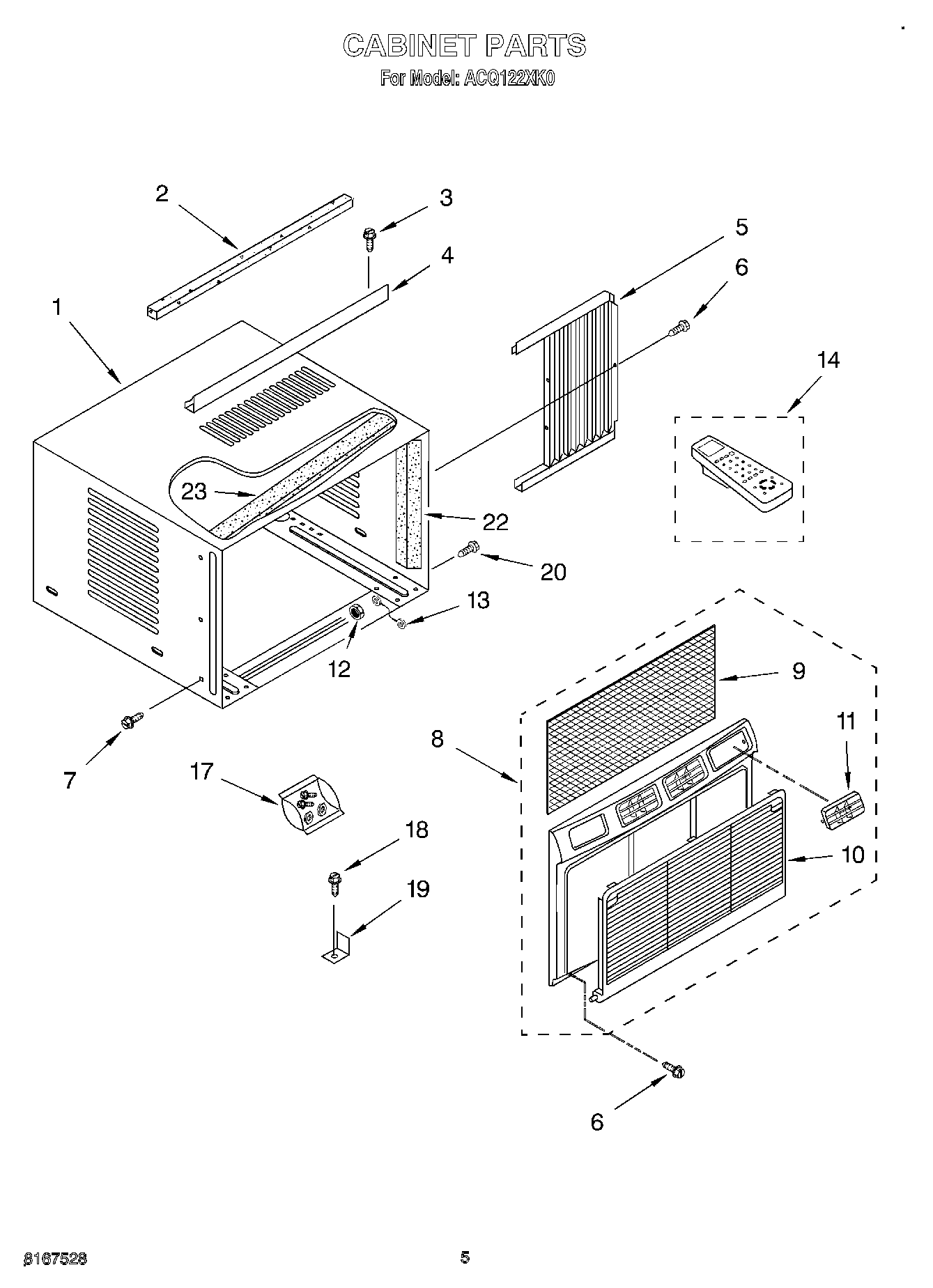

ACQ122XK0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP3390631 Whirlpool Screw
4	Channel, Top
5	Curtain ((Left Side))
5	Curtain ((Right Side))
6	W10491985 Whirlpool Screw
7	Screw, 8 x 3/8
8	Front
9	Filter
10	Grille, Front
11	Louver Assembly
12	WP486255 Whirlpool Air Conditioner Nut
13	Wire, Ground
14	Control, Remote
17	Accessory, Bag
18	Screw, Wood 8-15 x .750
19	Bracket
20	WP488234 Whirlpool Air Conditioner Screw
22	Seal, Cabinet Side (2)
23	Seal, Top Cover
