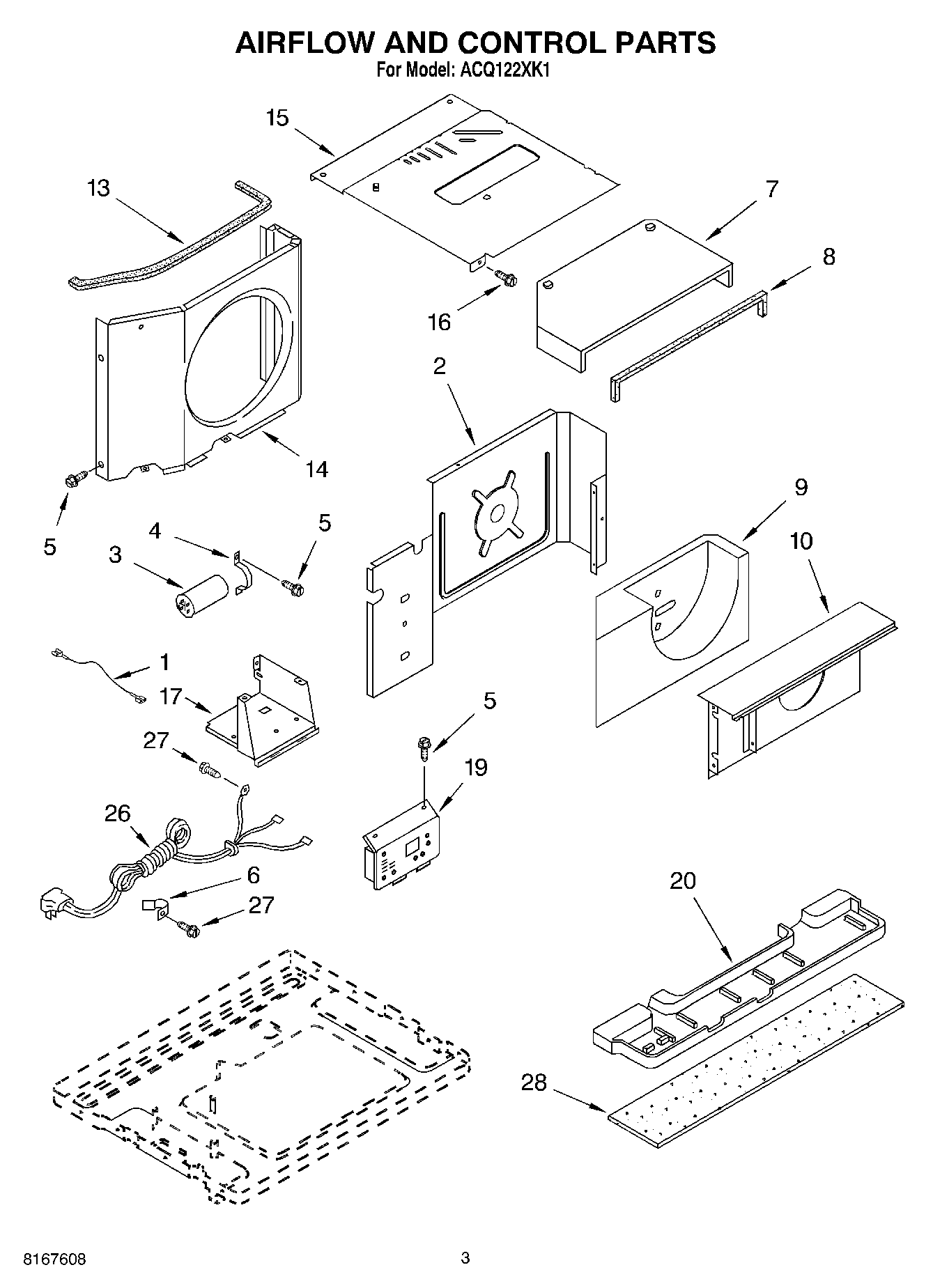

ACQ122XK1 02 – AIR FLOW AND CONTROL

ACQ122XK1 02 – AIR FLOW AND CONTROL

Written by

in

ACQ122XK1 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Wire, Jumper
2Wall, Dividing
3Capacitor, Running
4WP1160674 Whirlpool Bracket
6549193 Whirlpool Refrigerator Power Clamp
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
13Seal, Condenser Shroud
14Shroud, Condenser
15Cover, Unit
16Screw, 8-18 x 3/8
17Box, Control
19Control, Electronic
20Pan, Drain
26Cable, Appliance
27Screw 8-18 x .295
28Insulation, Drain Pan
←TFX25VPBEWW UNIT PARTS
TBX22PRYCRBB CABINET PARTS→
