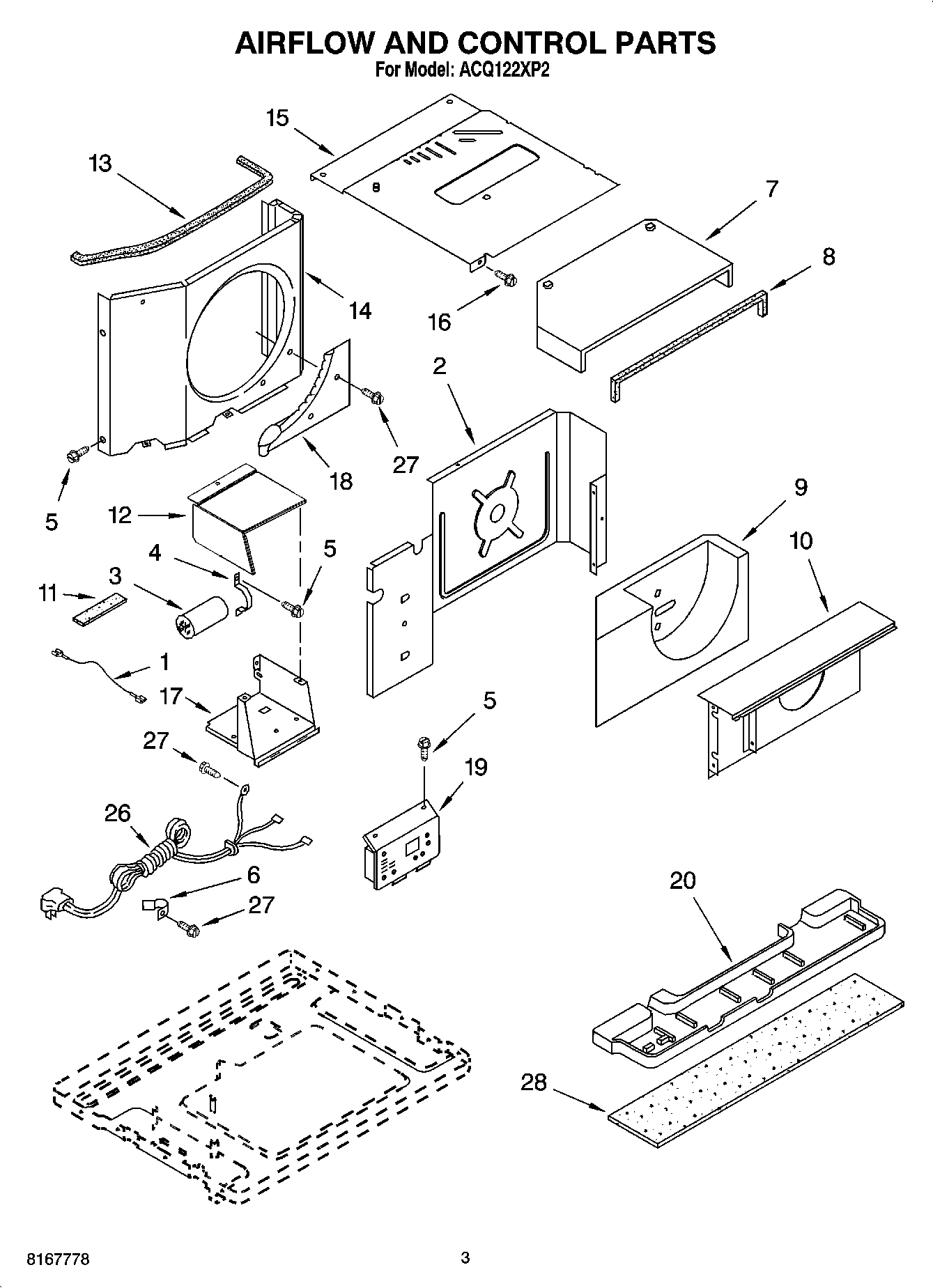

ACQ122XP2 02 – AIR FLOW AND CONTROL PARTS

ACQ122XP2 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACQ122XP2 02 – AIR FLOW AND CONTROL PARTS

Products

PositionProduct
1Wire, Jumper
2Wall, Dividing
3Capacitor, Running
4WP1160674 Whirlpool Bracket
6549193 Whirlpool Refrigerator Power Clamp
7Hood, Air Housing
8WP854334 Whirlpool Air Conditioner Sealing Strip
9Housing, Air
10Shroud, Evaporator
11Seal
12Cover, Control Box
13Seal, Condenser Shroud
14Shroud, Condenser
15Cover, Unit
16Screw, 8-18 x 3/8
17Box, Control
18Cup, Condensate
19Control, Electronic
20Pan, Drain
26Cable, Appliance
27Screw 8-18 x .295
28Insulation, Drain Pan
