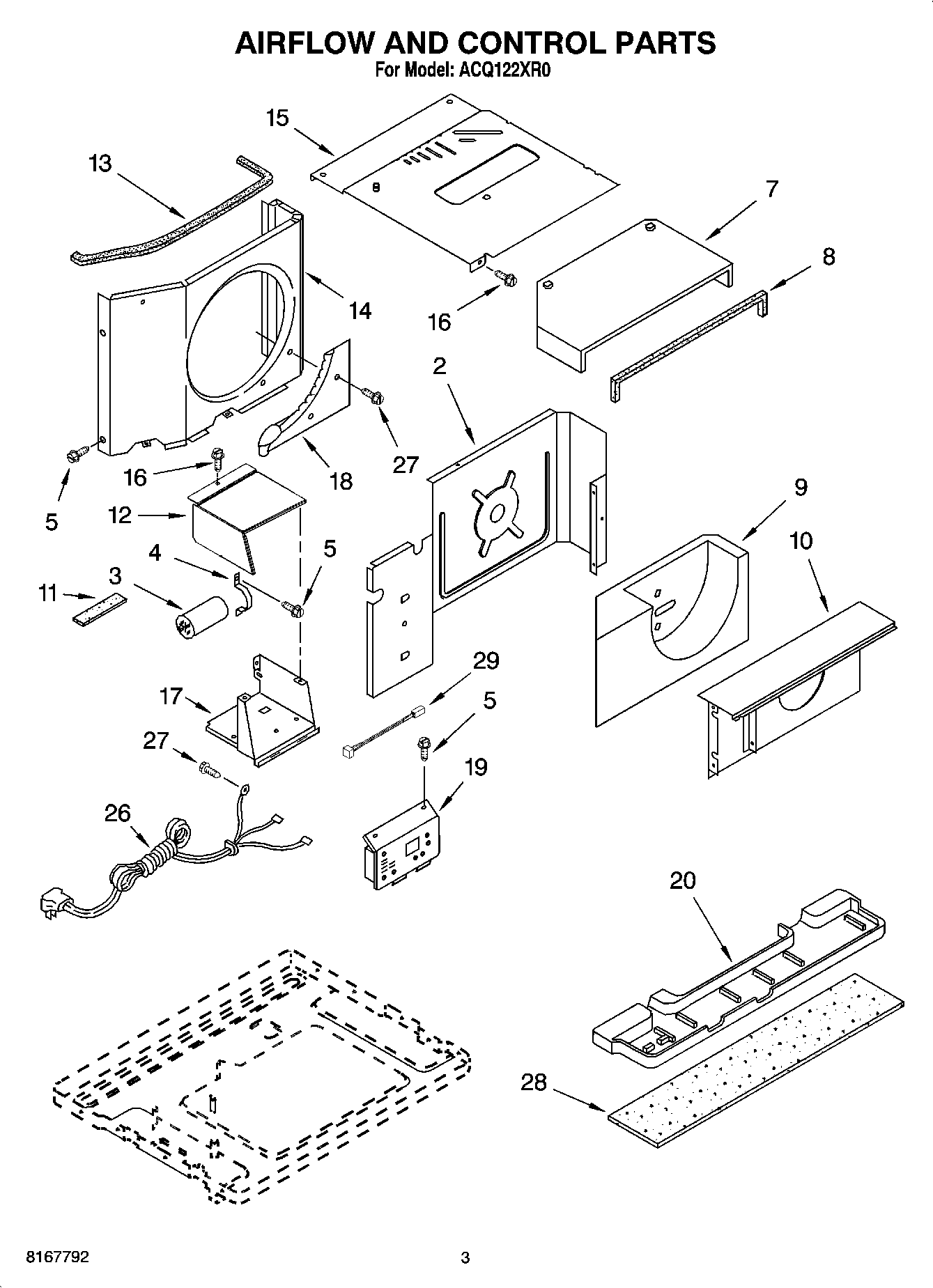

ACQ122XR0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
2	Wall, Dividing
3	Capacitor, Running
4	WP1160674 Whirlpool Bracket
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
11	Seal
12	Cover, Control Box
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	WP3196557 Whirlpool Screw
17	Box, Control
18	Cup, Condensate
19	Control, Electronic
20	Pan, Drain
26	Cable, Appliance
27	Screw 8-18 x .295
28	Insulation, Drain Pan
29	Thermistor
