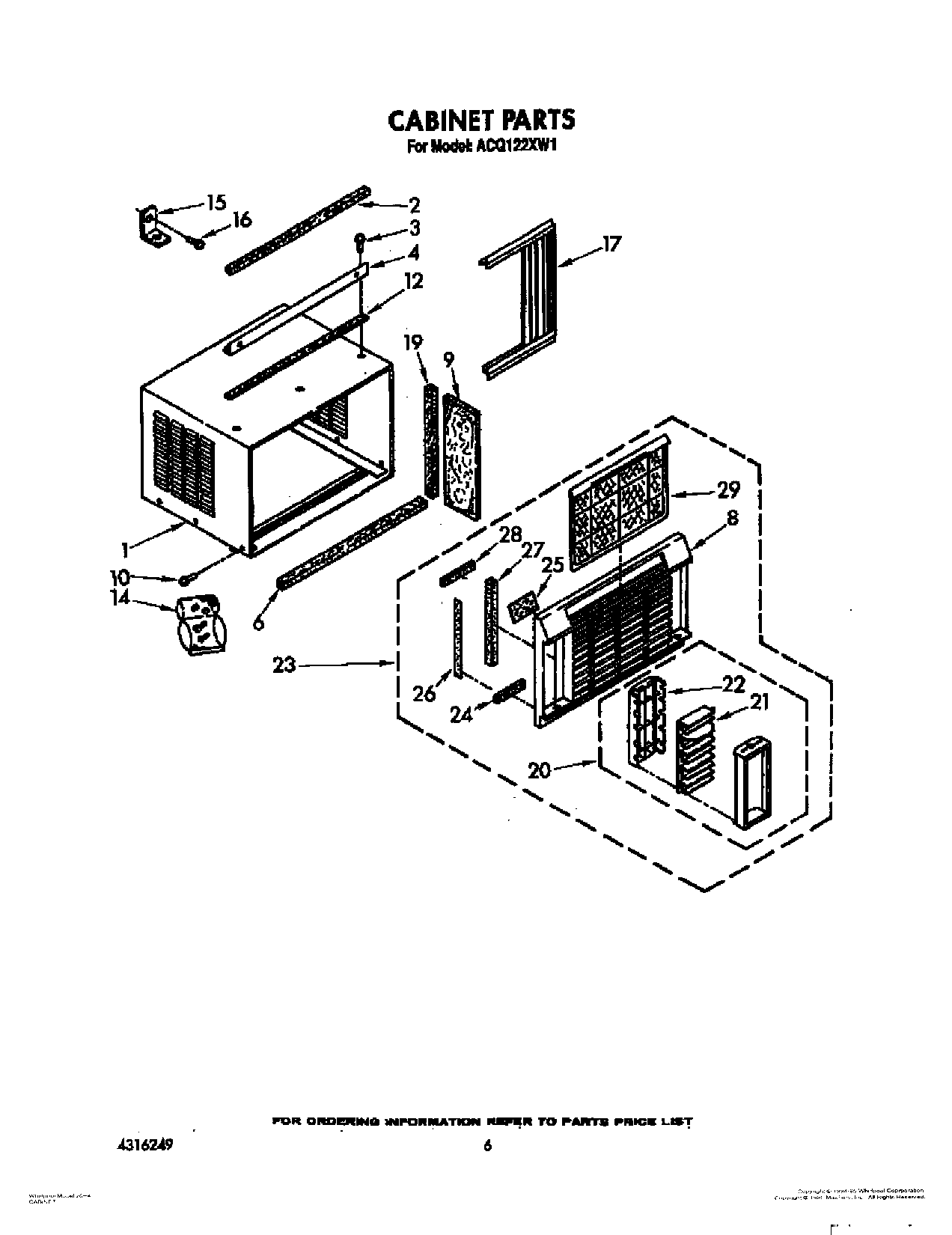

ACQ122XW1 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Chanel, Top
6	Seal
8	Cabinet Front
9	Insulation (2)
10	Screw, 8 x 7/16
12	Seal, Cabinet Top
14	Accessory, Bag
15	Bracket
16	Screw, Wood 8-15 x .750
17	Curtain (Right Side)
17	Curtain (Left Side)
19	Seal, Strip (2)
20	Cartridge, Complete
21	Horizontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal (2)
28	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Filter
