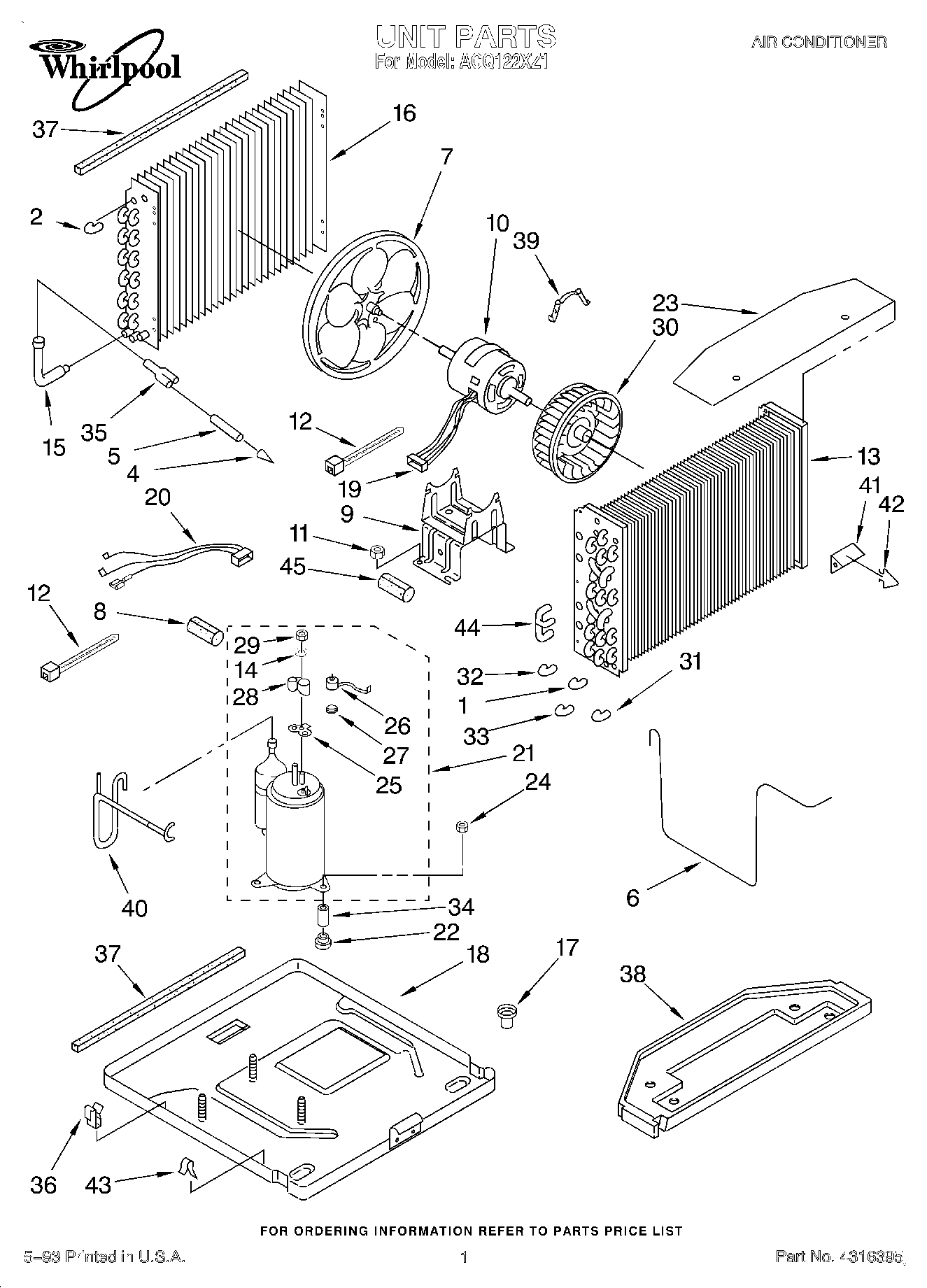

ACQ122XZ1 01 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Buy Guide
	Tech Sheet
	Manual, Use & Care Guide
	Wiring Diagram
	Instructions, Installation
	List, Repair Parts
1	Bend, Return Evaporator (4)
2	Bend, Return Condenser (10)
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, 90~ Connect
16	Condenser
17	Cup, Condensate Drain
18	Base
19	Terminal Block
20	Harness, Compressor
21	Compressor
22	WP950021 Whirlpool Grommet
23	Insulation, Evaporator Shroud
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload (Production)
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Return Bend (2)
32	Bend, Return Evaporator (4)
33	Bend, Return Evaporator (11)
34	Sleeve (3)
35	Tube, Flow Divider
36	Clamp, Restrictor Tube
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Suction
41	Anticipator, Temperature
42	Clip, Anticipator
43	Clamp (2)
44	Return Bend 3-Way
45	WPL 1162344
