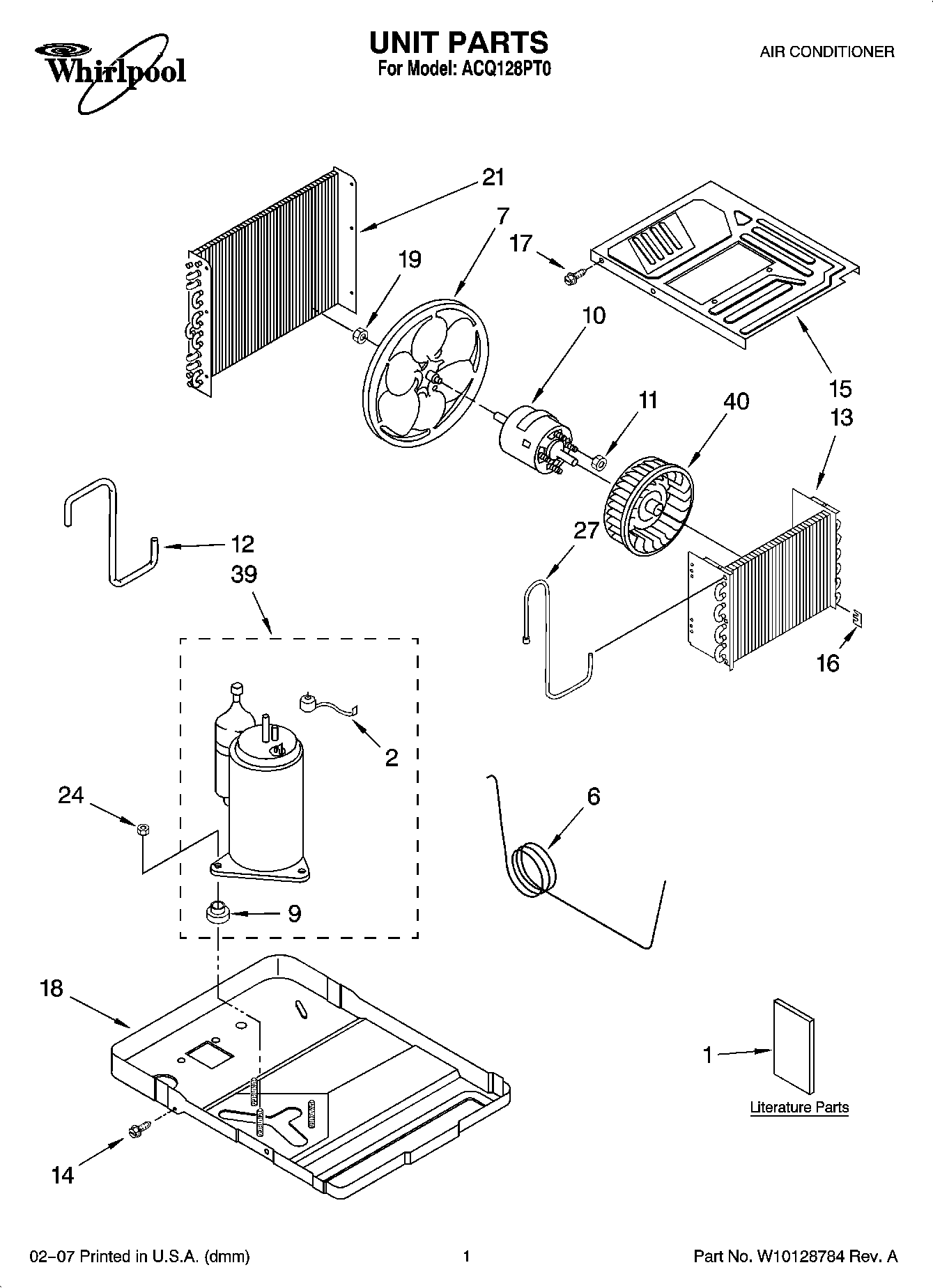

ACQ128PT0 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Use & care Guide
1	Wiring Diagram
2	Overload
6	Tube, Restrictor
7	Blade, Fan
9	Grommet (3)
10	Motor, Fan
11	Nut, Hex
12	Tube, Discharge
13	EVAPORATOR
14	W11245710 Whirlpool Refrigerator Screw
15	Cover, Evaporator
16	Support, Tube Sensor
17	Screw
18	BASE
19	Nut W/Washer
21	Condenser
24	Nut, W/Washer
27	Tube, Suction
39	Compressor Assembly
40	Wheel, Blower
40	REFRIGERANT CHARGE 25.39 oz.
