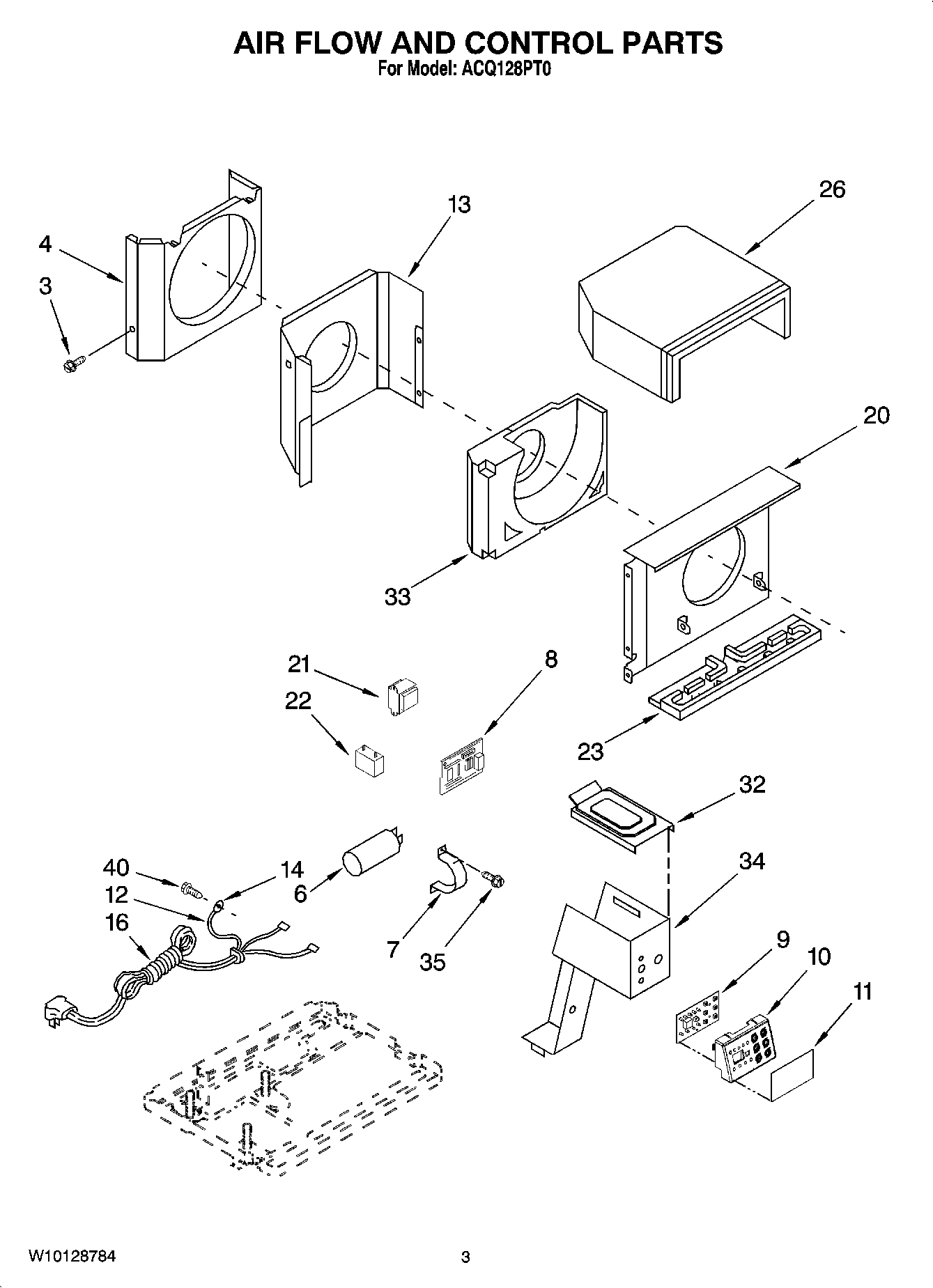

ACQ128PT0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
3	Screw
4	Shroud, Condenser
6	Capacitor, Running
7	Bracket, Capacitor
8	Main Board (High Voltage)
9	Interface Board, (Low Voltage)
10	Panel, Control
11	Overlay
12	Ground Wire
13	Wall, Dividing
14	WASHER
16	Cord, Appliance
20	Shroud, Evaporator
21	WP8215051 Whirlpool Air Conditioner Transformer
22	Capacitor, Motor
23	Pan, Evaporator
26	Hood, Air Housing
32	Cover, Control Box
33	Housing, Air
34	Panel, Front- Control Box
35	W11245710 Whirlpool Refrigerator Screw
40	SCREW
