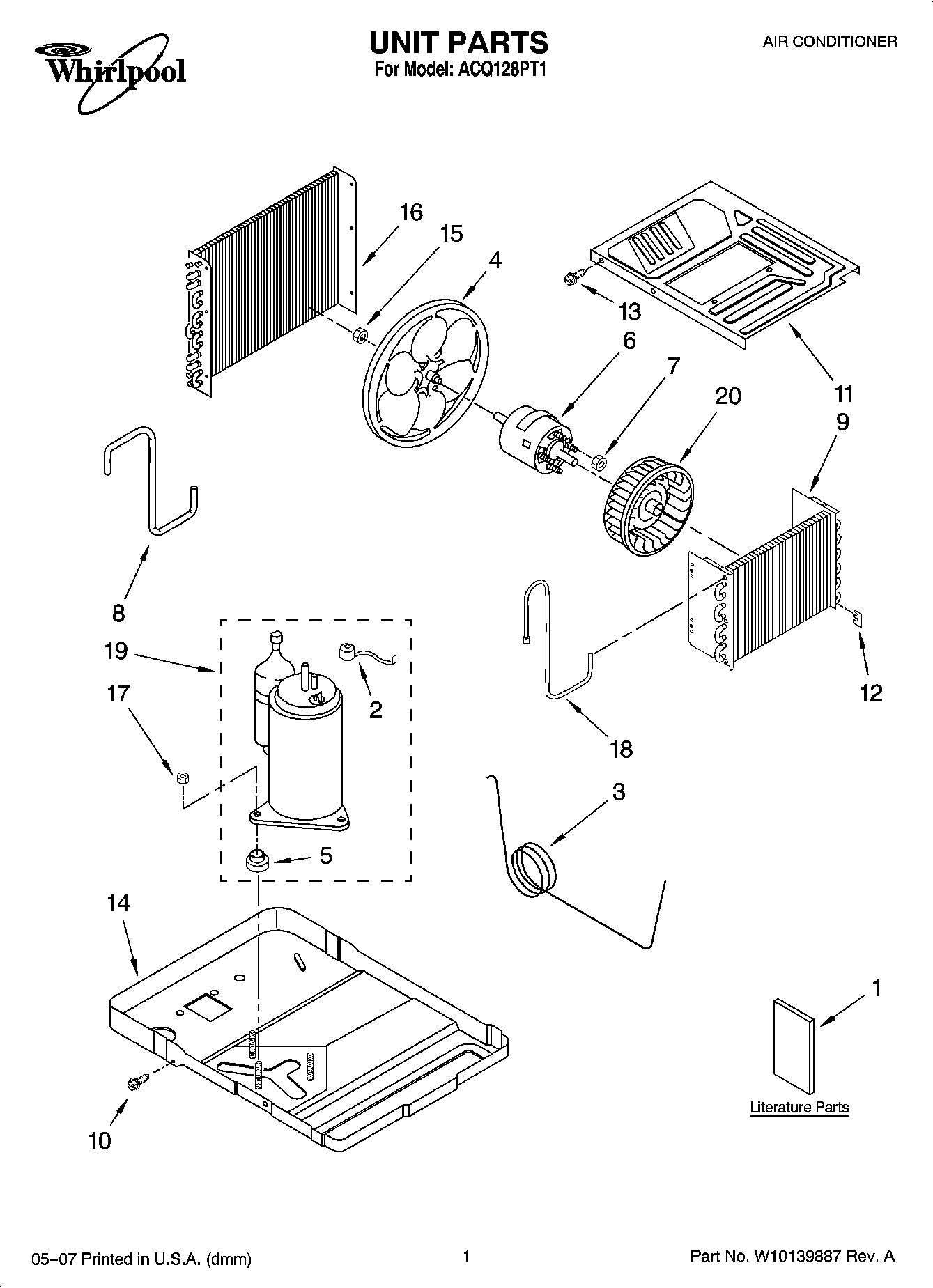

ACQ128PT1 01 – UNIT PARTSadmin2025-04-26T10:46:05+00:00ACQ128PT1 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Energy Guide |
| 1 | Use & care Guide |
| 1 | Wiring Diagram |
| 2 | Overload |
| 3 | Tube, Restrictor |
| 4 | Blade, Fan |
| 5 | Grommet (3) |
| 6 | Motor, Fan |
| 7 | Nut, Hex |
| 8 | Tube, Discharge |
| 9 | EVAPORATOR |
| 10 | W11245710 Whirlpool Refrigerator Screw |
| 11 | Cover, Evaporator |
| 12 | Support, Tube Sensor |
| 13 | Screw |
| 14 | BASE |
| 15 | Nut W/Washer |
| 16 | Condenser |
| 17 | Nut, W/Washer |
| 18 | Tube, Suction |
| 19 | Compressor Assembly |
| 20 | Wheel, Blower |
| 20 | REFRIGERANT CHARGE 25.39 oz. |
