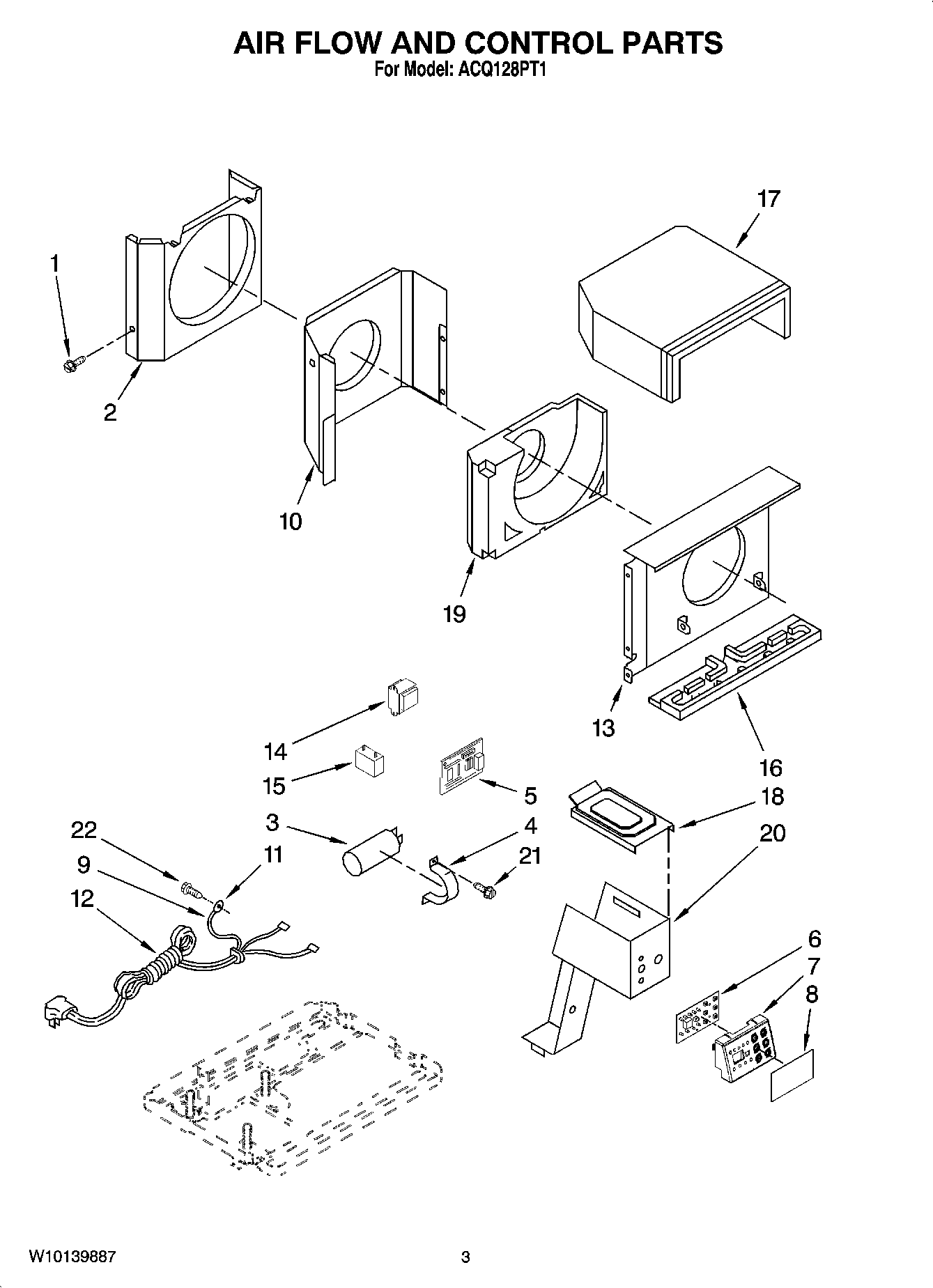

ACQ128PT1 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Screw
2	Shroud, Condenser
3	Capacitor, Running
4	Bracket, Capacitor
5	Main Board (High Voltage)
6	Interface Board, (Low Voltage)
7	Panel, Control
8	Overlay
9	Ground Wire
10	Wall, Dividing
11	WASHER
12	Cord, Appliance
13	Shroud, Evaporator
14	WP8215051 Whirlpool Air Conditioner Transformer
15	Capacitor, Motor
16	Pan, Evaporator
17	Hood, Air Housing
18	Cover, Control Box
19	Housing, Air
20	Panel, Front- Control Box
21	W11245710 Whirlpool Refrigerator Screw
22	SCREW
