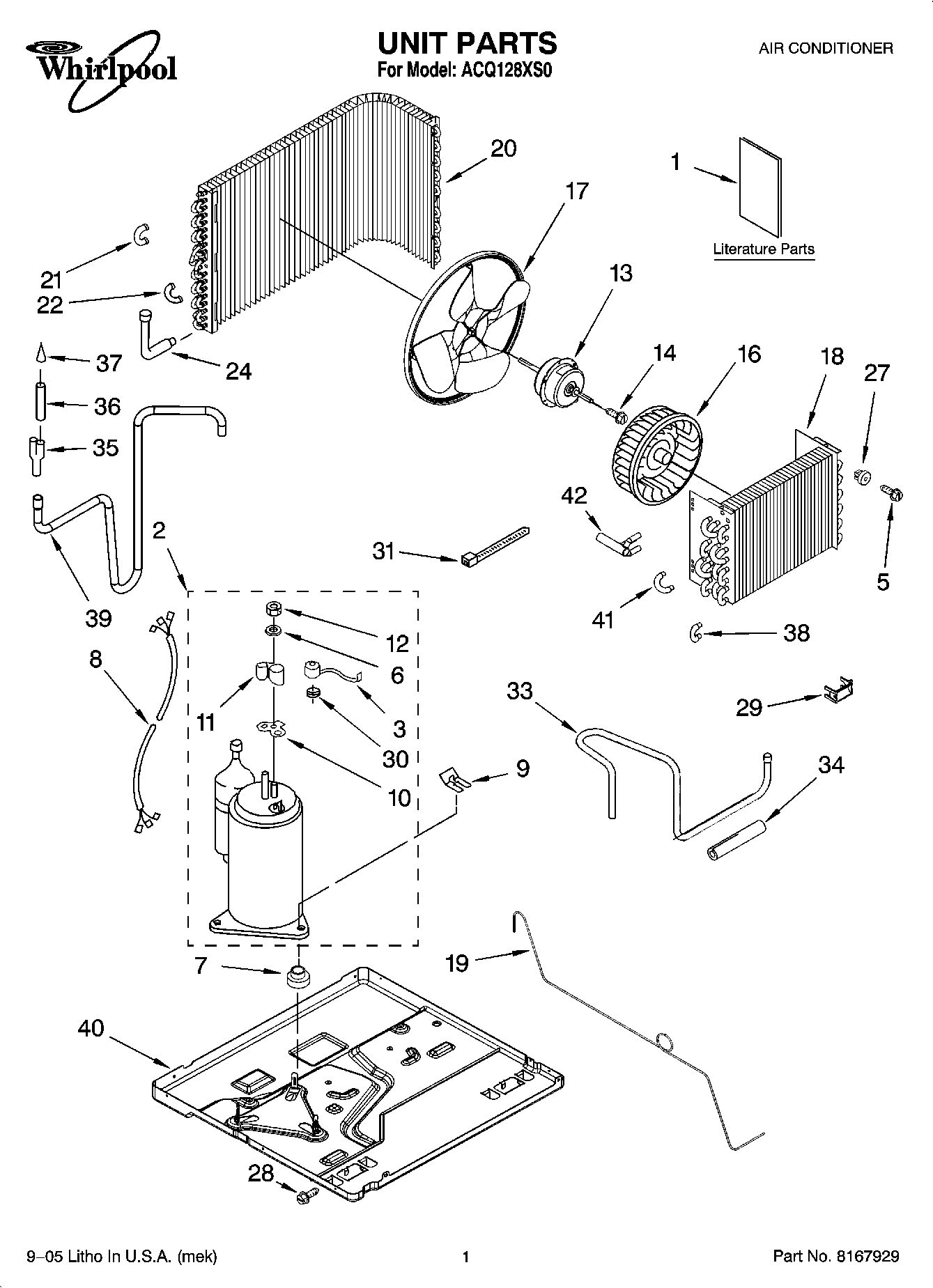

ACQ128XS0 01 – UNIT PARTS

Products

Position	Product
1	Use & Care Guide
1	Wiring Diagram
1	Energy Guide
2	Compressor
3	WP1188381 Whirlpool Air Conditioner Overload
5	WP489463 Whirlpool Refrigerator Screw
6	Washer
7	WP950021 Whirlpool Grommet
8	Wiring Harness, Compressor
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	W10833054 Whirlpool Air Conditioner Mounting Nut
13	Motor, Fan
14	WPW10109200 Whirlpool Screw
16	Wheel, Blower
17	Blade, Fan
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return
22	Bend, Return Evaporator (4) Condenser (4)
24	Tube, Connecting
27	Grommet, Screw
28	Screw, 8 x 3/8
29	Clip, Anticipator
30	Spring, Overload
31	WPW10339879 Whirlpool Wire Tie
33	Tube, Suction (Includes Item 34)
34	Seal, Suction Tube
35	Tube, Flow Divider
36	Tube, Outlet (Includes No. 26)
37	Strainer
38	Bend, Return Evaporator (11)
39	Tube, Discharge
40	Base
41	Bend, Return Evaporator (4)
42	Manifold, Suction
42	REFRIGERANT CHARGE 19.50 oz.
