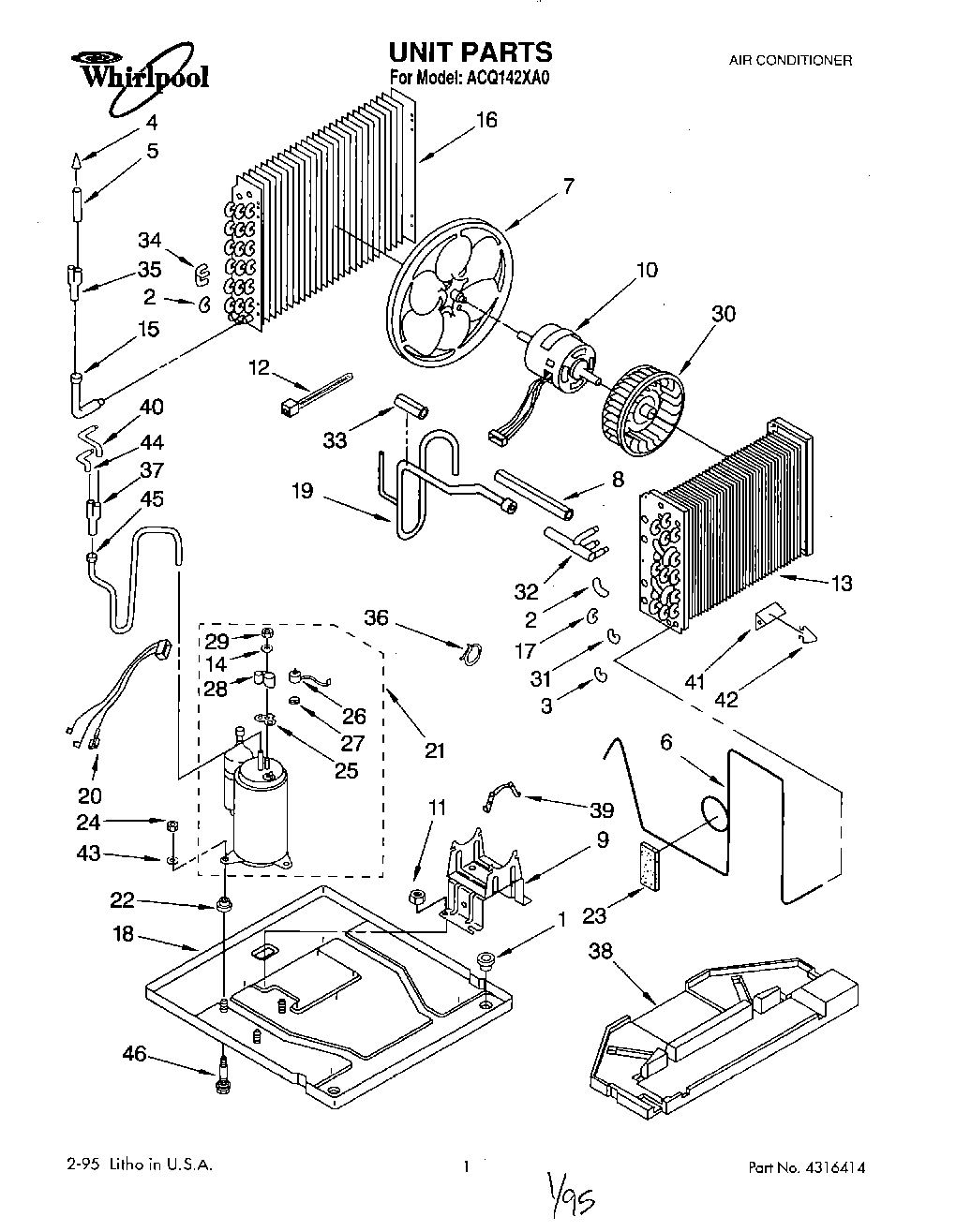

ACQ142XA0 01 – UNIT, LITERATURE

Products

Position	Product
1	Cup, Condensate Drain
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Tube, Suction
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Seal, Anti-Rub
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload (Production)
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Return Bend (2)
32	Manifold, Suction
33	Dampener
34	Bend, Return (3-Way)
35	Tube, Flow Divider
36	Clamp (2)
37	Flow, Divider
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Feeder
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Tube, Feeder
45	Tube, Discharge
46	Wiring Diagram
46	Bolt, Compressor
46	Use And Care Guide
46	Instructions, Installation
46	Tech Sheet
