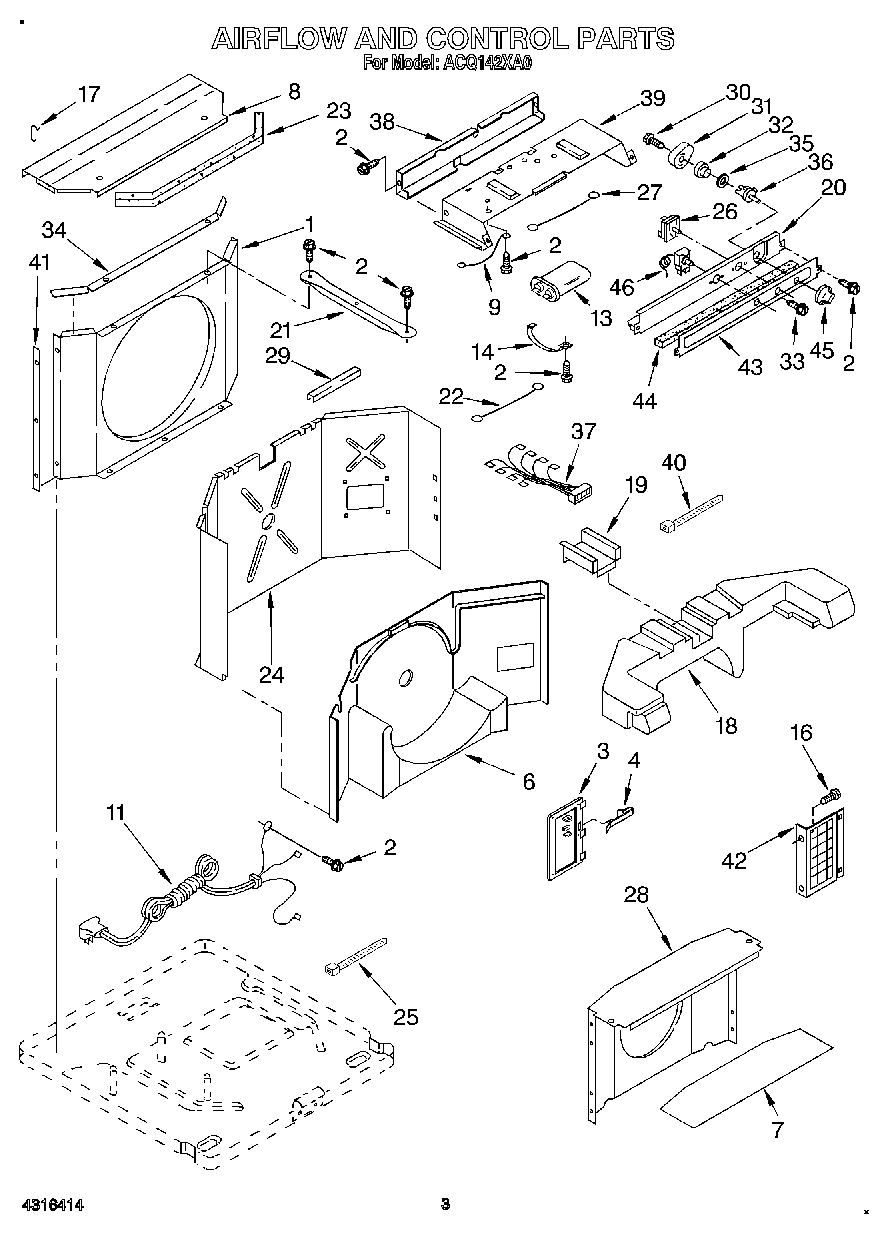

ACQ142XA0 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
6	Scroll (Lower)
7	Seal, Evaporator
8	Top, Condenser
9	Wire, Ground
11	Cord, Appliance
13	Capacitor, Running
14	Bracket, Capacitor
16	Screw, 8-18 x 3/8
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control
23	Seal, Shroud
24	Dividing Wall
25	WPW10339879 Whirlpool Wire Tie
26	Switch, Rotary
27	Wire, Thermostat To Switch
28	Shroud Assembly, Evaporator
29	Grommet, Divider Wall
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Seal, Condenser Shroud Top
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring - Control Box
38	Control Box
39	Back Panel, Control Box
41	Seal, Condenser Shroud Side
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
