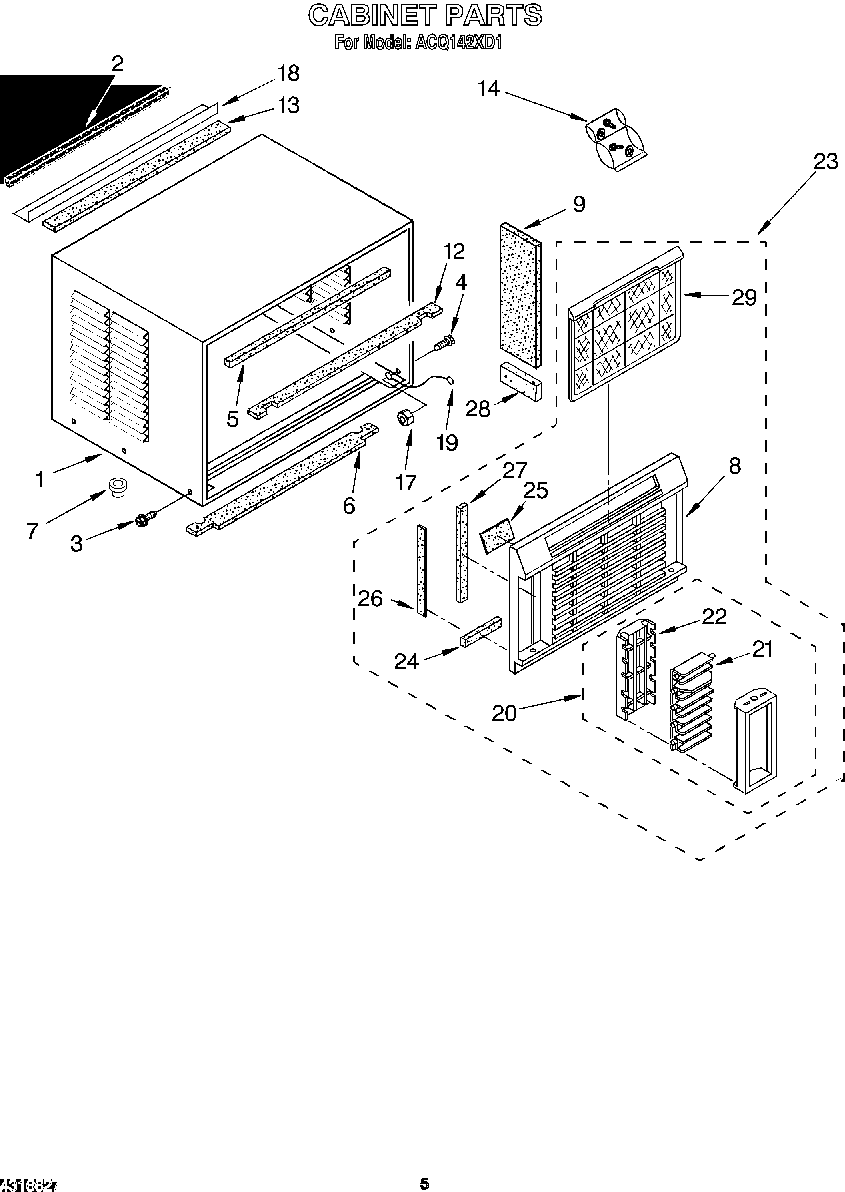

ACQ142XD1 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	WP488234 Whirlpool Air Conditioner Screw
5	Seal, Top
6	Seal
7	Cup, Condensate Drain
8	Cabinet Front
9	Insulation, Cabinet Side (2)
12	Seal
13	Seal, Top Mounting Angle
14	Bag, Accessory
17	WP486255 Whirlpool Air Conditioner Nut
18	Angle, Top Mounting
19	Wire, Ground
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (Left Side)
24	Seal (Right Side)
25	Seal (Right Side)
25	Seal (Left Side)
26	Seal (2)
27	WP854334 Whirlpool Air Conditioner Sealing Strip
28	Insulation, Cabinet Side (2)
29	Filter
