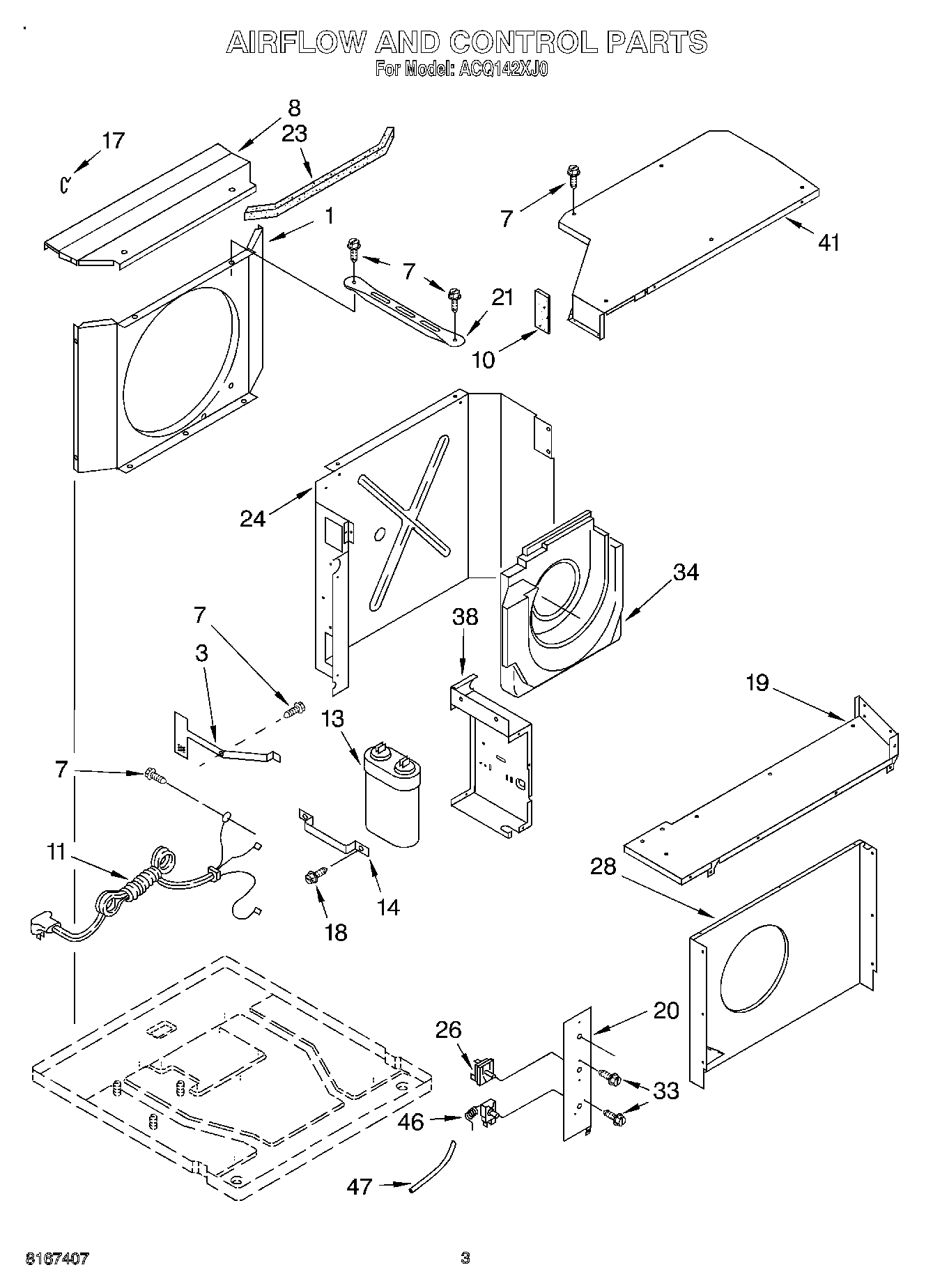

ACQ142XJ0 02 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
3Door, Exhaust
8Top, Condenser
10Seal, Anti-Rub
11Cable, Appliance
13CAPACITOR
14Bracket, Capacitor
17Clip, Shroud (2)
18WP489069 Whirlpool Compactor Screw
19Top, Evaporator Shroud
20Panel, Control
21Support, Unit (2)
23Seal, Shroud
24Dividing Wall
26Switch, Rotary
28Shroud Assembly, Evaporator
33Screw, 6-32 x .175
34Housing, Air
38Control Box (R.S.)
41Cover, Top
46Control, Temperature
47Sleeve, Insulating
