ACQ142XJ0 03 – CABINET

ACQ142XJ0 03 – CABINET

Written by

in

ACQ142XJ0 03 – CABINET

Products

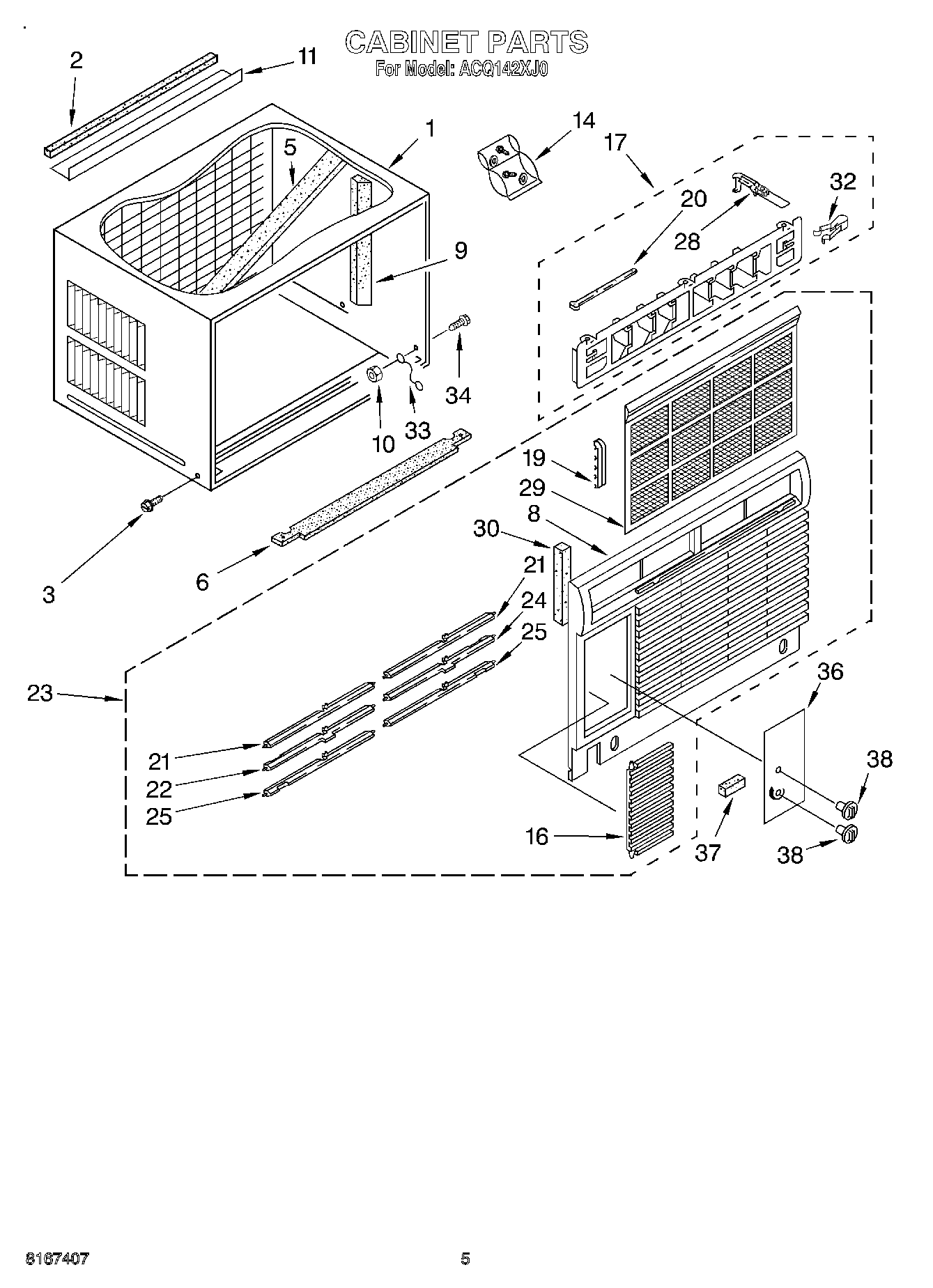

PositionProduct
1Cabinet (Includes Insulation)
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
5Insulation, Top (Cabinet)
6Seal
8Front, Cabinet
9Insulation, Cabinet Side (2)
10WP486255 Whirlpool Air Conditioner Nut
11Angle (Top)
14Bag, Accessory
16Door, Control
17Vertical, Louver
19Link, Horizontal Louver (5)
20Link, Verticle Louver (2)
21Louver, Horizontal (8)
22Louver, Horizontal W/ Handle, Left
23Front, Complete
24Louver, Horizontal W/ Handle, Right
25Louver, Horizontal (Notch Left)
25Louver, Horizontal (Notch Right)
28Actuator, Louver
29Filter
30Seal, Front (3)
32Spring, Detent
33Wire, Ground
34WP488234 Whirlpool Air Conditioner Screw
36Plate, Escutcheon
37Spacer, Escutcheon Plate (3)
38WP8031121 Whirlpool Air Conditioner Control Knob
