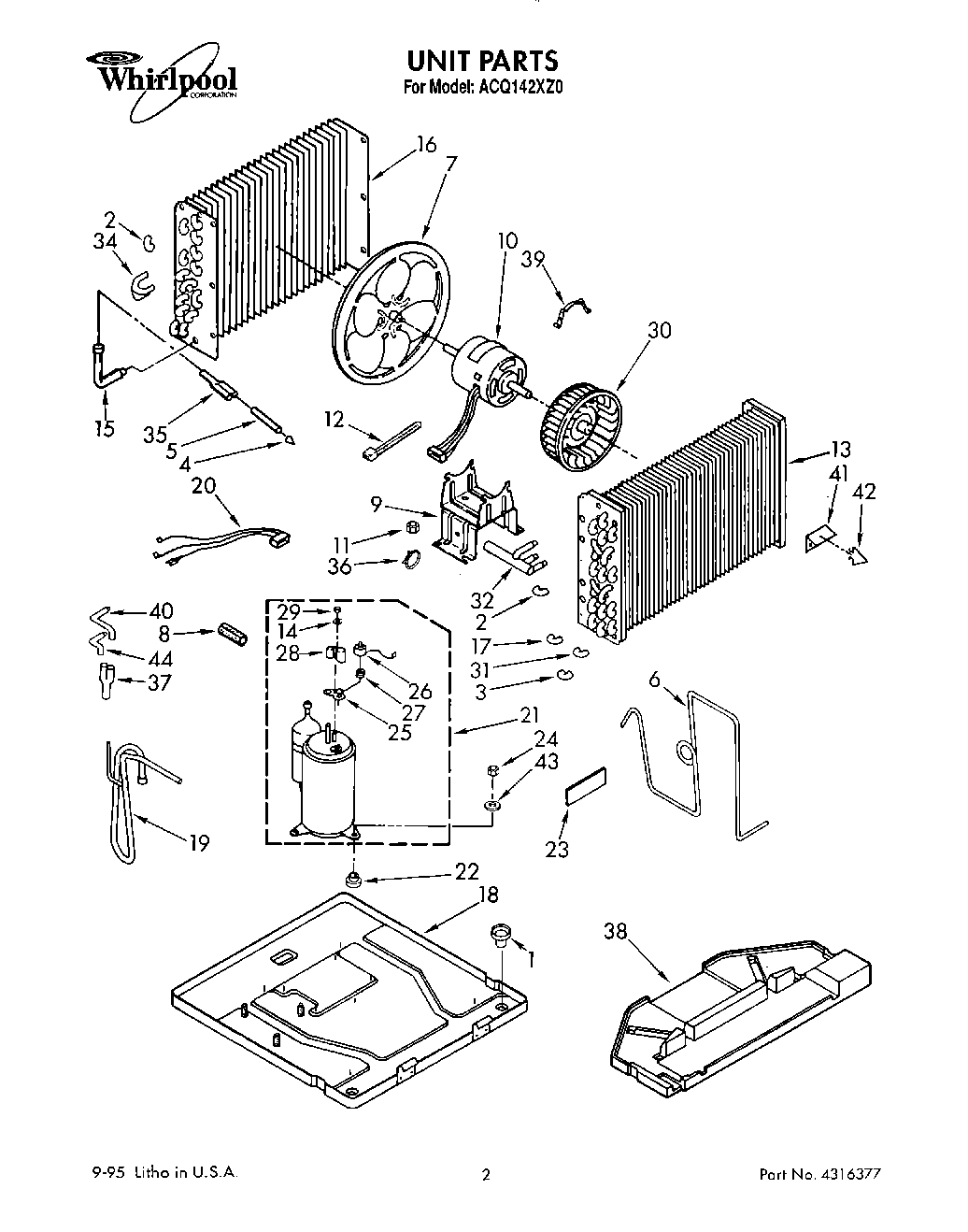

ACQ142XZ0 01 – UNIT, LITERATURE

Products

Position	Product
	List, Repair Parts
	Use And Care Guide
	Instructions, Installation
	Tech Sheet
1	Cup, Condensate Drain
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
19	Tube, Suction
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Seal, Anti-Rub
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload, Protector
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Return Bend (2)
32	Manifold, Suction
34	Bend, Return (3-Way)
35	Tube, Flow Divider
36	Clamp (2)
37	Flow, Divider
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Tube, Feeder
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Tube, Feeder
