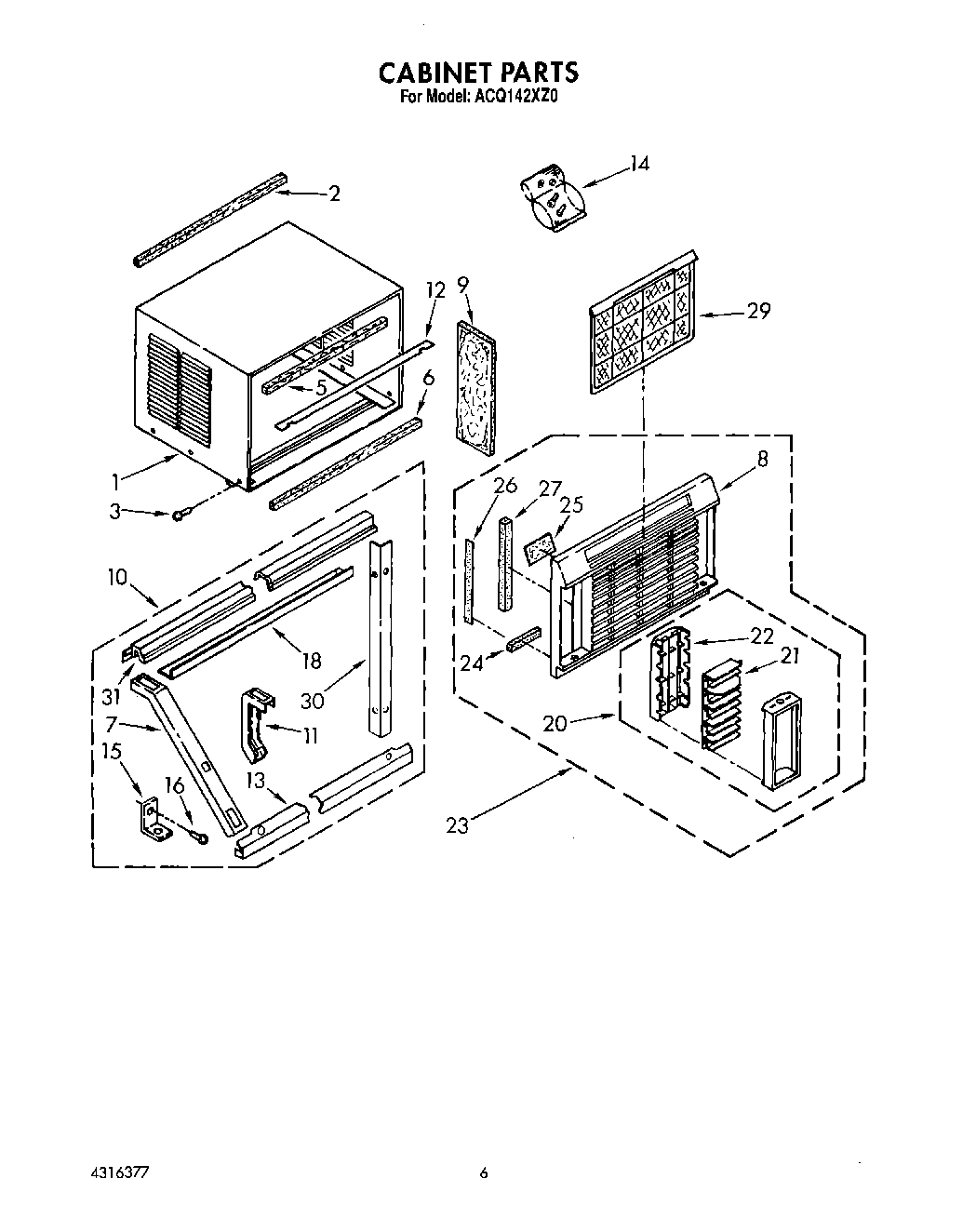

ACQ142XZ0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
5	Seal, Top
6	Seal
7	Support, Cabinet (2)
8	Cabinet Front
9	Insulation Cabinet Side (2)
10	Kit, Standard Installation
11	Support, Retainer (2)
12	Seal
13	Bracket, Support
14	Bag, Accessory
15	Bracket
18	Angle, Top Mounting
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal (Left Side)
24	Seal (Right Side)
25	Seal (Left Side)
25	Seal (Right Side)
26	Seal (2)
27	WP854334 Whirlpool Air Conditioner Sealing Strip
29	Filter
30	Angle (2)
31	Gasket, Sash
