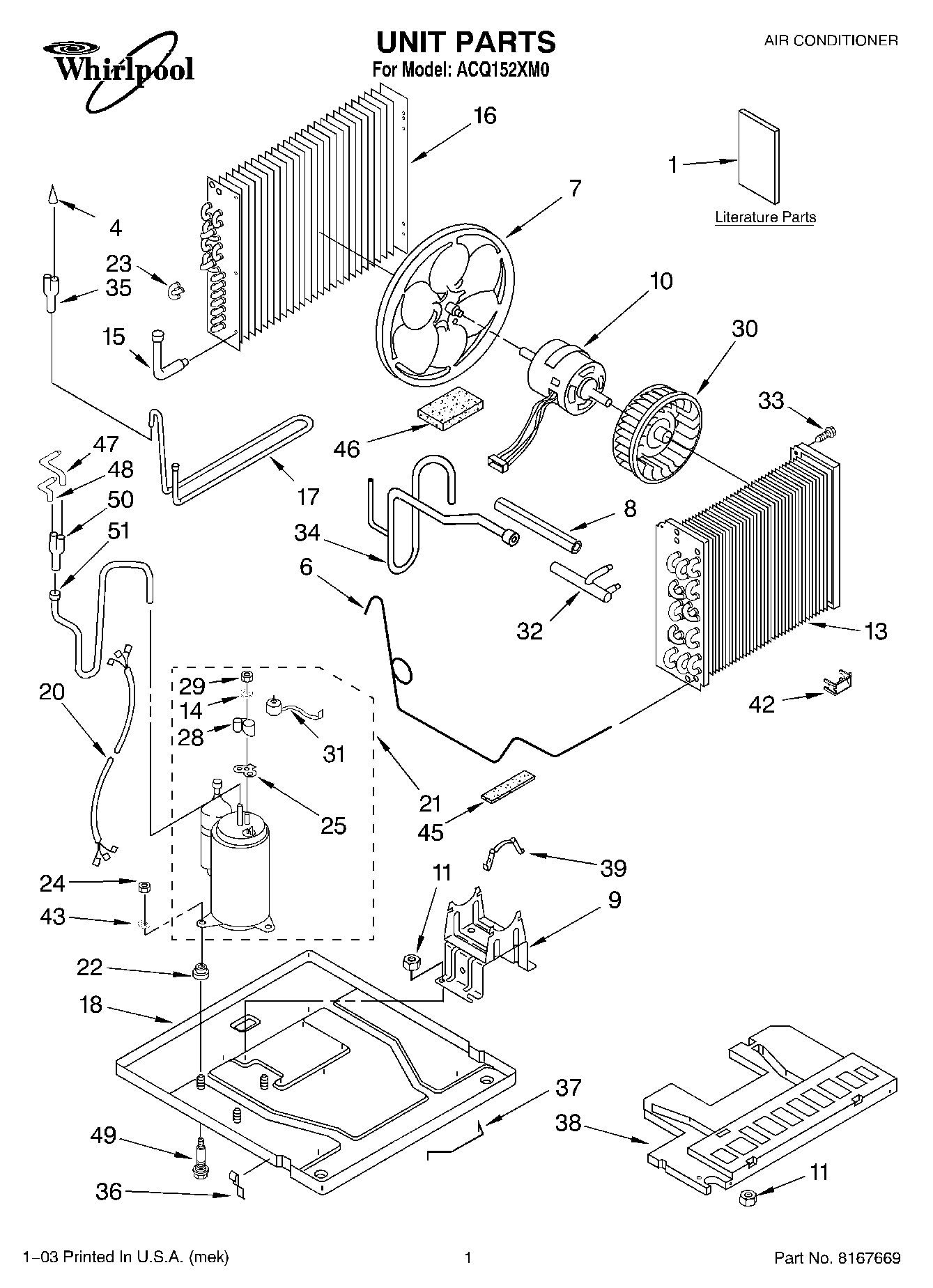

ACQ152XM0 01 – UNIT PARTS

ACQ152XM0 01 – UNIT PARTS

Written by

in

ACQ152XM0 01 – UNIT PARTS

Products

PositionProduct
1LITERATURE PARTS (Wiring Diagram)
1Energy Guide
1Literature Parts (Use & Care Guide)
4Strainer
6Tube, Restrictor (2)
7Blade, Fan (Condenser)
8Seal, Suction Tube Suction Tube
9Bracket, Fan Motor
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
13Evaporator
14Gasket
15Tube, Wet Loop Connect
16Condenser
17Wet, Loop
18Base
20Harness, Wiring Compressor
21Compressor
22WP950021 Whirlpool Grommet
23Bend, Return (3-Way)
24Locknut (3)
25Gasket, Terminal Cover
28Cover, Terminal
29W10833054 Whirlpool Air Conditioner Mounting Nut
30Wheel, Blower
31Overload
32Manifold, Suction
33WP489069 Whirlpool Compactor Screw
34Tube, Suction (Includes 8)
35Tube, Flow Divider
36Clamp (2)
37WPL 647971
38Pan, Drain
39WPY015825 Whirlpool Motor Clip
42Clip, Anticipator
43W11236646 Whirlpool Washer Assembly
45Seal, Restrictor Tube
46Putty, Sound Dampener
47Tube, Feeder
48Tube, Feeder
49Bolt, Compressor
50Tube, Flow Divider
51Tube, Discharge
51REFRIGERANT CHARGE 19.75 oz.
