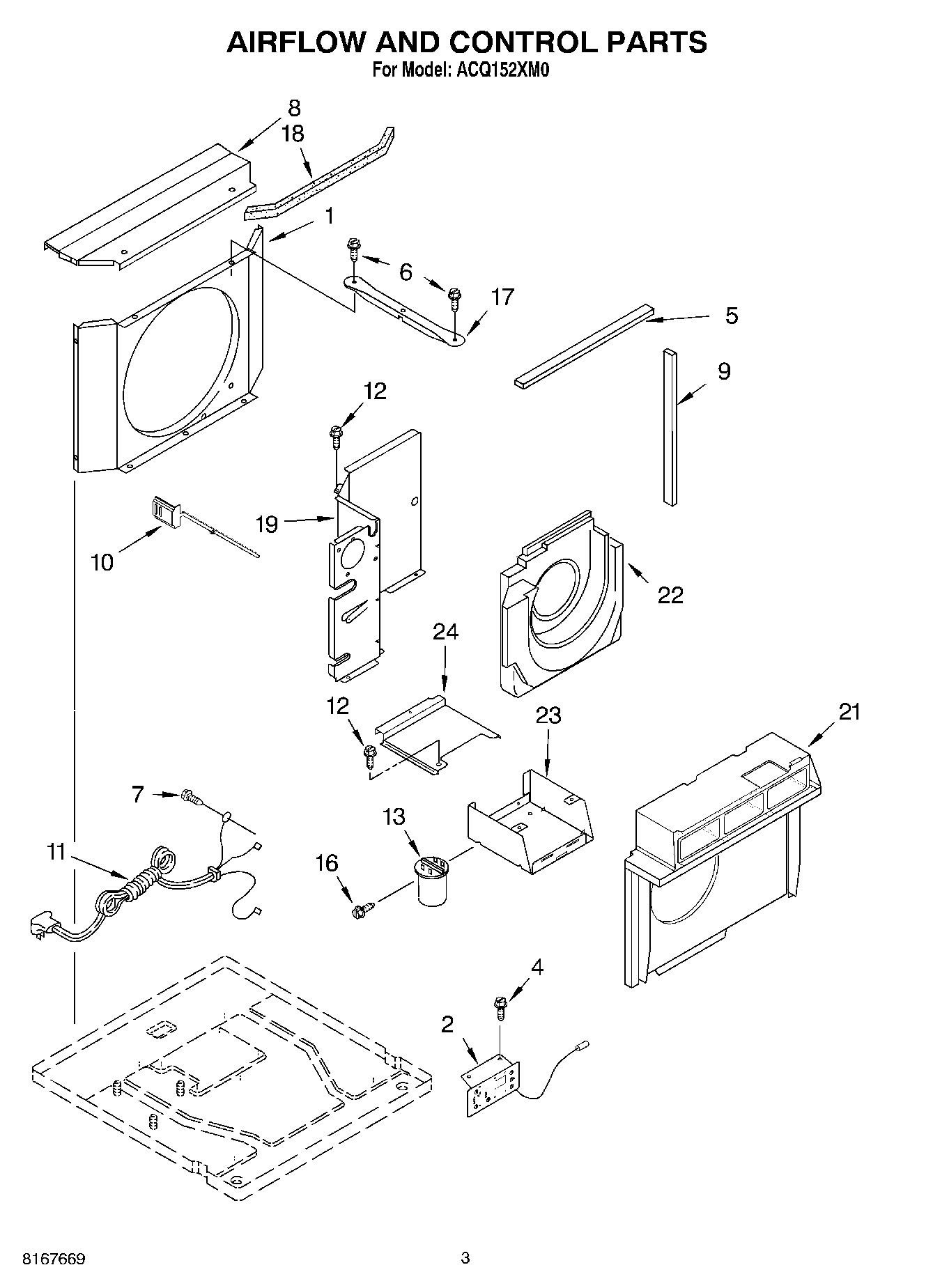

ACQ152XM0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Control, Electronic
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Seal (Side)
10	Door, Exhaust
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
16	WP489069 Whirlpool Compactor Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Cover, Control Box
