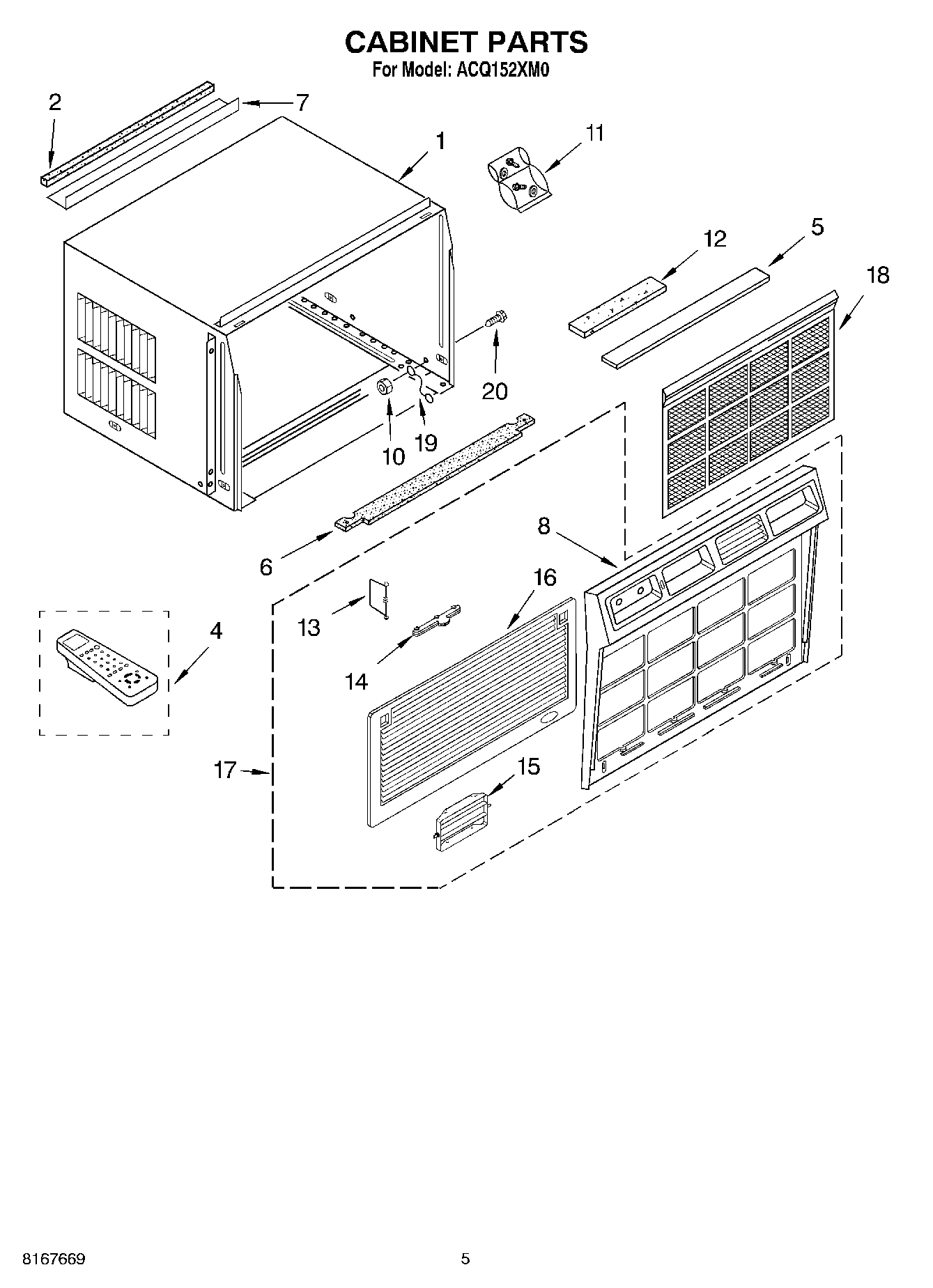

ACQ152XM0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
4	Control, Remote
5	Seal, Hood-Large
6	Seal
7	Angle (Top)
8	Frame, Front
10	WP486255 Whirlpool Air Conditioner Nut
11	Bag, Accessory
12	Seal, Hood-Small
13	Louver, Verticle
14	Link, Verticle Louver (2)
15	Cartridge
16	Door, Filter
17	Front, Complete
18	Filter
19	Wire, Ground
20	WP488234 Whirlpool Air Conditioner Screw
