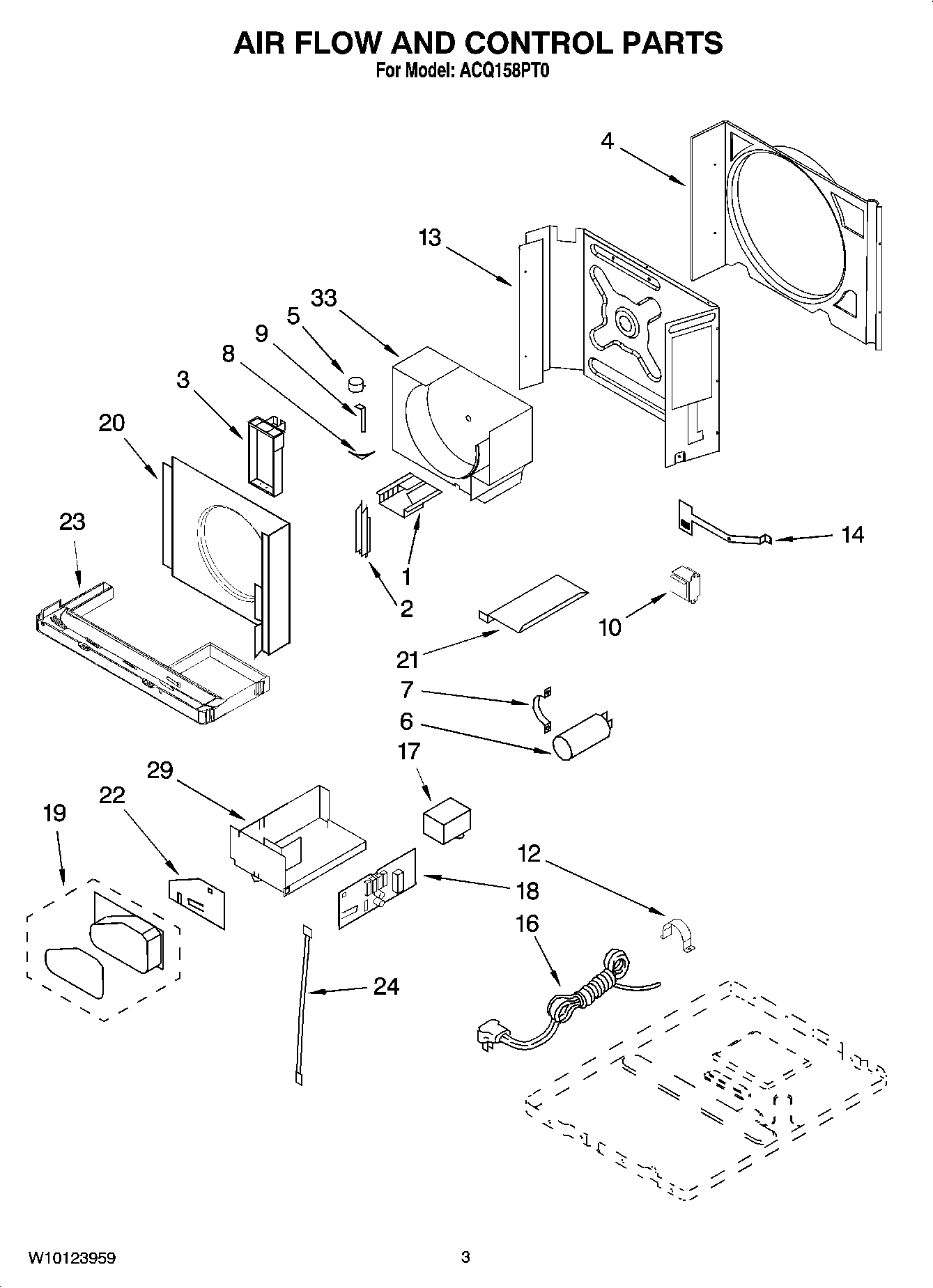

ACQ158PT0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Housing, Air
2	Louver
3	Cartridge, Louver
4	Shroud, Condenser
5	Motor, Louver
6	Capacitor, Running
7	Bracket, Capacitor
8	Linkage, Louver
9	Linkage, Louver
10	WP8215051 Whirlpool Air Conditioner Transformer
12	Wire Clamp
13	Wall, Dividing
14	Door, Exhaust
16	Cord, Appliance
17	Capacitor, Motor
18	Microcomputer
19	Escutcheon
20	Shroud, Evaporator
21	Cover, Air Duct
22	Display Board
23	Pan, Evaporator
24	Thermistor
29	Box, Control
33	Housing, Air
